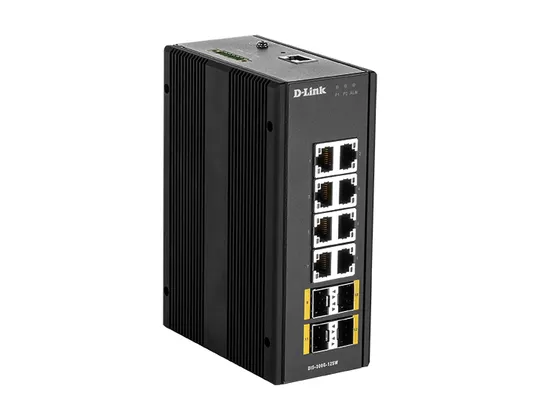

D-Link DIS‑300G‑12SW Managed L2 Gigabit Ethernet (10/100/1000) Black


8x 100/1000BaseT, 4x 100/1000BaseSFP, 256 VLANs, QoS, IP30, 61x154x109 mm

5,499.00 د.إ

Highlights

Managed Customization Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs. Gigabit Connectivity with SFP slots Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts. Officially Certified Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks. Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C. Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty. High Availability Rapid ring failover recovery time of Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting. Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat. Discrete Size Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.

SKU: DIS-300G-12SW Category: Tag:
Feature Details
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Traffic shaping Y
System event log Y
MIB support RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Fiber optic connector LC
Networking standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support N
Full duplex Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Auto-negotiation Y
VLAN support Y
Virtual LAN features Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs 1024
MAC address table 256 entries
Store-and-forward Y
Jumbo frames support Y
Jumbo frames 9000
DHCP features DHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithms HTTPS, SNMP, SNMPv3, SSH
Authentication type IEEE 802.1x, RADIUS
Queue scheduling algorithms Weighted Round Robin (WRR)
Multicast support Y
Rack mounting N
Product colour Black
LED indicators LAN, Status
International Protection (IP) code IP30
Wall mountable Y
DIN rail mounting Y
Electromagnetic compatibility FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Certification IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Firmware upgradeable Y
Harmonized System (HS) code 85176990
DC input voltage 12 – 58 V
Power consumption (max) 17 W
Power protection features Over current, Reverse polarity
Power over Ethernet (PoE) N
Operating temperature (T-T) -40 – 75 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 61 mm
Depth 154 mm
Height 109 mm
Weight 1.09 kg
Package width 195 mm
Package depth 242 mm
Package height 118 mm
Package weight 1.53 kg
