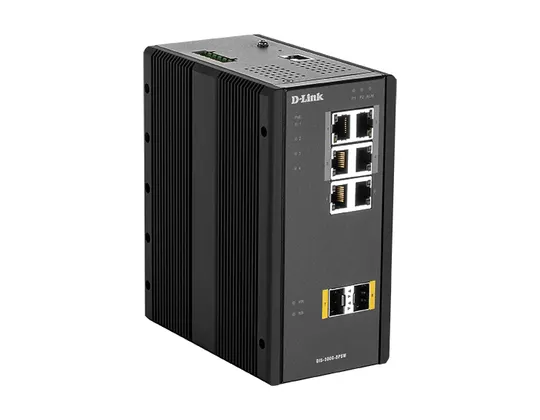

D-Link DIS‑300G‑8PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black


4x 100/1000BaseT PoE, 2x 100/1000BaseT, 2x 100/1000BaseSFP, 1024 VLANs, QoS, IP30, 71x154x128 mm

7,799.00 د.إ

Highlights

Managed Customization Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-8PSW is easy to manage and provides the security and controls to guard and shape your network needs. Gigabit Connectivity with PoE and SFP slots Designed with 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, and 2 x 100/1000BaseSFP slots to suit a range of devices and network layouts. Officially Certified Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks. Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C. Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty. High Availability Rapid ring failover recovery time of PoE Support With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort. Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting. Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat. Discrete Size Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.

SKU: DIS-300G-8PSW Category: Tag:
Feature Details
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Traffic shaping Y
System event log Y
MIB support RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Basic switching RJ-45 Ethernet ports quantity 6
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Fiber optic connector LC
Networking standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support N
Full duplex Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Auto-negotiation Y
VLAN support Y
Virtual LAN features Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Number of VLANs 1024
MAC address table 8000 entries
Store-and-forward Y
Jumbo frames support Y
Jumbo frames 9000
DHCP features DHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithms HTTPS, SNMP, SNMPv3, SSH
Authentication type IEEE 802.1x, RADIUS
Queue scheduling algorithms SPQ, Weighted Round Robin (WRR)
Multicast support Y
Product colour Black
LED indicators Alarm, LAN, PoE, Power
International Protection (IP) code IP30
Wall mountable Y
DIN rail mounting Y
Electromagnetic compatibility FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Certification IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Firmware upgradeable Y
Harmonized System (HS) code 85176990
Shipping (inner) case height 27 cm
Shipping (inner) case width 40.5 cm
Shipping (inner) case length 69.5 cm
Shipping (inner) case net weight 18.1 kg
Products per shipping (inner) case 10 pc(s)
Pallet gross weight (air) 404.4 kg
Master (outer) cases per pallet (air) 20 pc(s)
Products per pallet (air) 200 pc(s)
Pallet gross length 120 cm
Pallet gross width 110 cm
Pallet height (air) 148.5 cm
Pallet gross weight (sea) 559.4 kg
Master (outer) cases per pallet (sea) 28 pc(s)
Products per pallet (sea) 280 pc(s)
Pallet height (sea) 2.02 m
Shipping (inner) case gross weight 19.4 kg
DC input voltage 48 – 58 V
Power consumption (typical) 14 W
Power consumption (max) 265 W
Power protection features Over current, Reverse polarity
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) voltage range 54 – 58 V
Power over Ethernet (PoE) power per port 60 W
Total Power over Ethernet (PoE) budget 120 W
Operating temperature (T-T) -40 – 75 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 71 mm
Depth 154 mm
Height 128 mm
Weight 1.31 kg
Package width 195 mm
Package depth 242 mm
Package height 138 mm
Package weight 1.81 kg
