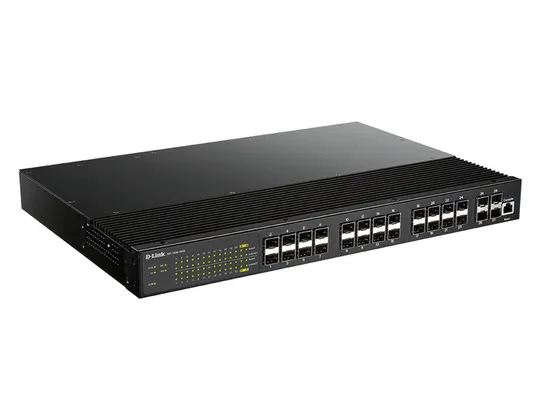

D-Link DIS-700G-28XS network switch Managed L2+ 1U Black


24x SFP, 4x 10G SFP+, L2+

27,099.00 د.إ

Highlights

Layer 2+ Managed Customization For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs. Gigabit Connectivity with SFP slots Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts. Officially Certified Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks. Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from –10°C to +65°C, and can cold start from -10°C. Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty. High Availability Rapid ring failover recovery time of Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

SKU: DIS-700G-28XS Category: Tag:
Feature Specification
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Y
Traffic shaping Y
SFP module slots quantity 24
SFP+ module slots quantity 4
Console port RJ-45
USB 2.0 ports quantity 1
Power connector DC-in jack
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x
10G support Y
VLAN support Y
Virtual LAN features Multicast VLAN
MAC address table 8000 entries
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Black
Harmonized System (HS) code 85176990
Shipping (inner) case height 46.8 cm
Shipping (inner) case width 35.7 cm
Shipping (inner) case length 58.2 cm
Shipping (inner) case net weight 17.5 kg
Products per shipping (inner) case 3 pc(s)
Pallet gross weight (air) 242.1 kg
Master (outer) cases per pallet (air) 12 pc(s)
Products per pallet (air) 36 pc(s)
Pallet gross length 120 cm
Pallet gross width 110 cm
Pallet height (air) 107.1 cm
Pallet gross weight (sea) 467.2 kg
Master (outer) cases per pallet (sea) 24 pc(s)
Products per pallet (sea) 72 pc(s)
Pallet height (sea) 2.01 m
Shipping (inner) case gross weight 18.8 kg
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (typical) 35 W
Operating temperature (T-T) -10 – 65 °C
Operating relative humidity (H-H) 5 – 95%
Width 440 mm
Depth 318.5 mm
Height 44 mm
Weight 4.5 kg
Package width 430 mm
Package depth 570 mm
Package height 110 mm
Package weight 5.83 kg
