D-Link Smart Managed Switch DGS-1100-05PD – switch – 5 ports – smart DGS-1100-05PD

Availability:

10 in stock
Add to Wishlist

AED299.00

10 in stock

Add to Wishlist

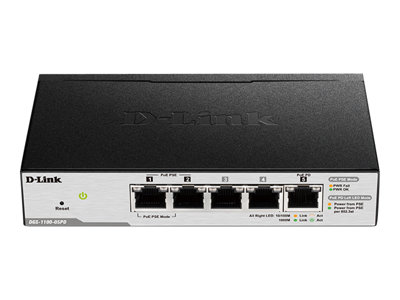

D-Link DGS-1100-05PD Smart Managed PoE-Powered 5-Port Gigabit Switch and PoE Extender



Overview

D-Link’s DGS-1100 Series provides an affordable solution for SOHOs and Small and Medium Businesses as well as enterprise deployment, such as in branch offices and meeting rooms that require simple network management. Enhanced management features, diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to suit your networking requirements.

  • Powered by PoE (8023af or 8023at) Ideal for use in hard to reach locations
  • Note: no AC/DC adapter included/cannot be powered from AC wall outlet
  • PoE Pass through – can extend PoE on switch ports 1 and 2
  • Management via Web Based GUI
  • Support for 8021Q VLANs for secure traffic or network segmentation
  • Advanced features include QoS, Bandwidth Limiting, Link Aggregation and IGMP Snooping
  • IEEE 8023az compliant (Energy Efficient Ethernet)
  • LIMITED LIFETIME WARRANTY Void when not purchased from Authorized US D Link Reseller
SKU: DGS-1100-05PD Category: Tags: , , ,

Specifications

General
Device Type Switch – 5 ports – smart
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 2 x 10/100/1000 (PoE) + 3 x 10/100/1000
Power Over Ethernet (PoE) PoE
Performance Switching capacity: 10 Gbps Forwarding performance: 7.4 Mpps
Capacity VLAN groups: 32 IGMP groups: 32 Queues per port: 4 MAC address entries: 32
MAC Address Table Size 2000 entries
Jumbo Frame Support 9216 bytes
Features Flow control, BOOTP support, IGMP snooping, port mirroring, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, IPv4 support, fanless, DHCP client, tagged VLAN, PoE Budget: 18 W (802.3at input power) / 8 W (802.3af input power)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3q
Flash Memory 2 MB
Expansion / Connectivity
Interfaces 2 x Gigabit LAN RJ-45 PoE – 15.4 W 2 x Gigabit LAN RJ-45 1 x Gigabit LAN RJ-45 PoE input
Power
Power Device Power injector
Features PoE powered
Dimensions & Weight
Width 5.9 in
Depth 3.8 in
Height 1.1 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 0 – 95% (non-condensing)
General
Capacity VLAN groups: 32 ¦ IGMP groups: 32 ¦ Queues per port: 4 ¦ MAC address entries: 32
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3q
Device Type Switch – 5 ports – smart
Enclosure Type Desktop
Features Flow control, BOOTP support, IGMP snooping, port mirroring, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, IPv4 support, fanless, DHCP client, tagged VLAN, PoE Budget: 18 W (802.3at input power) / 8 W (802.3af input power)
Flash Memory 2 MB
Jumbo Frame Support 9216 bytes
MAC Address Table Size 2000 entries
Performance Switching capacity: 10 Gbps ¦ Forwarding performance: 7.4 Mpps
Ports 2 x 10/100/1000 (PoE) + 3 x 10/100/1000
Power Over Ethernet (PoE) PoE
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 3.8 in
Height 1.1 in
Width 5.9 in
Environmental Parameters
Humidity Range Operating 0 – 95% (non-condensing)
Humidity Range Storage 0 – 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 2 x Gigabit LAN RJ-45 PoE – 15.4 W ¦ 2 x Gigabit LAN RJ-45 ¦ 1 x Gigabit LAN RJ-45 PoE input
Power
Features PoE powered
Power Device Power injector
