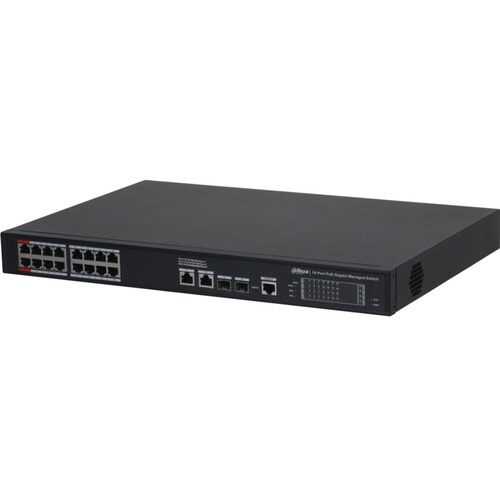

Dahua Technology DH-S4220-16GT-240 16-Port Gigabit PoE++ Complaint Managed Network Switch
Key Features
- 14 x Gigabit Ethernet PoE+ Ports (30W)
- 2 x Gigabit Ethernet PoE++ Ports (90W)
- 2 x Gigabit SFP Ports
- 56 Gb/s Switching Capacity
- 29.76 Mpps Forwarding Rate
- Desktop & Rack Mountable
- 240W Power Budget
- Up to 820′ Range
- Layer 2 Features
- Web-Based Management
AED2,699.00
Dahua Technology DH-S4220-16GT-240 Overview
Grow your business’s network capacity with the DH-S4220-16GT-240 16-Port Gigabit PoE++ Complaint Managed Network Switch from Dahua Technology. This managed Layer 2 switch features 16 Gigabit Ethernet ports, two of which support up to 90W PoE while the rest provide up to 30W each, delivering both power and data to IP cameras, access points, and other compatible devices over a single cable.
This switch can deliver power at up to 820 feet in long-distance mode and has a total power budget of 240W. Its 56 Gb/s switching capacity and 29.76 Mpps forwarding rate help to ensure smooth and reliable data transfers. Two SFP ports are available for Gigabit speed fiber uplink connections. Use the web-based interface to configure and manage your power settings.
Web Management
The minimalist graphical web management offers easy offers easy operation and improves configuration efficiency.
Gigabit Ports
A large buffer memory and Gigabit Ethernet ports enable high-definition video and media broadcasts.
Red Port 90W
The red ports support IEEE802.3af, IEEE802.3at, and IEEE802.3bt with a maximum output power of 90W for high-powered devices.
Long-Distance PoE
By dialing or enabling long-range transmission on the web interface, the transmission distance of a PoE port can reach up to 820 feet with 10 Mb/s data speed.
PoE Watchdog
PoE Watchdog functionality allows for intelligent operation and maintenance management. With watchdog functionality enabled, the switch automatically detects the port status and restarts failed ports to recover the connection.
Intelligent PoE
Provides power consumption control and real-time monitoring to guarantee priority of power supply for important ports and prevent malfunctioning caused by power consumption change.
Silent Operation
The metal chassis efficiently dissipates heat, allowing the switch to work in temperatures between 14 to 131°F without disturbing the environment.
Key Specs
| Inputs/Outputs | |
| Stackable | |
| Switching Bandwidth | |
| PoE Power Budget |
| Stackable |
Protocols
| Layer Services Supported | |
| Supported Protocols | |
| Jumbo Frames Support | |
| MAC Address Table Size |
Performance
| Forwarding Rate | |
| Switching Bandwidth | |
| Packet Buffer |
Electrical
| PoE per Port | |
| PoE Power Budget | |
| Power Draw | |
| Input Power | |
| Power Supply Type |
General
| Certifications | |
| Operating Conditions | |
| Cooling System | |
| Material of Construction | |
| Indicator Lights | |
| Rack Mountable | |
| Dimensions | |
| Weight |
