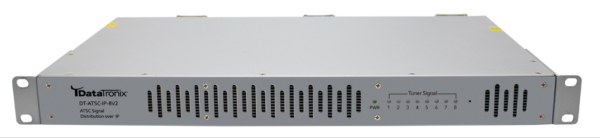

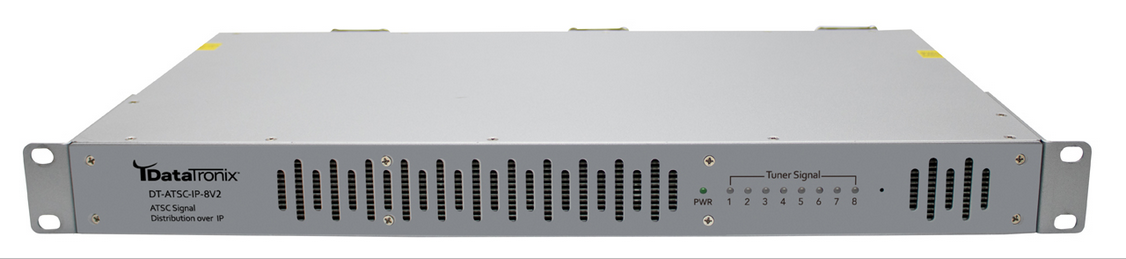

DataTronix DT-ATSC-IP-8V2 Off-Air ATSC to IP Converter – 8 RF Inputs/64 Output Programs

Add to Wishlist
  • Accepts up to 8 RF inputs (ATSC-8VSB over-the-air or QAM)
  • Allows for Up to 64 Output Programs
  • Allows User to “Cherry Pick” Desired Programs as Needed
  • Supports STD/HRC/IRC Formats
  • UDP/RTP Multicast/Unicast

AED12,499.00

Add to Wishlist

The DataTronix DT-ATSC-IP-8V2 allows the operator to create a custom IPTV distribution system output from ATSC off-air and/or QAM input sources. This unit accepts up to eight 8VSB over-the-air channels (including sub-channels), or clear QAM sources from a CATV feed, and outputs in IP. These outputs can be mapped to a desired unicast or multicast IP address.

The DT-ATSC-IP-8V2 processes most major local broadcast networks that have a second or third local channel. These channels can contain important weather-related content, local sports, or secondary programming. Integrators who operate satellite-delivered TV systems will find this unit to be the perfect solution for adding external over-the-air or clear QAM content to their IP distribution system.

As an added benefit, because the additional programming does not come from the satellite source, then in the event of a satellite outage this unit will continue to deliver the additional programming to the property.

  • Features:

    • Accepts up to 8 RF inputs (ATSC-8VSB over-the-air or QAM)
    • Allows for Up to 64 Output Programs
    • Allows User to “Cherry Pick” Desired Programs as Needed
    • Supports STD/HRC/IRC Formats
    • UDP/RTP Multicast/Unicast
    • Easy to Setup and Monitor with Graphic User Interface
    • Front Panel LED Indicators
    • High Density 1RU Design
SKU: DT-ATSC-IP-8V2 Category: Tag:

  • Specifications:

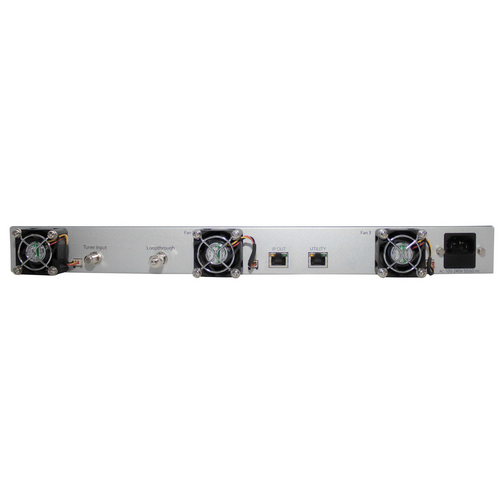

    • Input
    • RF Mode (ATSC-8VSB and QAM):
      – Connector: 1x F-Type, Female
      – Input Impedance: 75Ī©
    • Modulation:
      – ATSC-8VSB
      – ITU J.83 Annex B (64-QAM, 256-QAM)
    • Tuning Block Freq Range: 55 to 861MHz (Center)
    • Bandwidth: 6 MHz
    • Numbers of Tuner: 8
    • Input Level: 0 to 15 MHz
    • Loop Through:
      – Connector: 1x F-Type, Female, Passive

      Output

    • GigE:
      – Connector: 1x RJ45
    • Standard:
      – 100/1000Base-T Ethernet
      – Full/Half Duplex
      – Auto-Negotiation
    • IP Streaming Protocol:
      – UDP/RTP: Unicast/Multicast
      – Address Assignment: 64 x IPv4 SPTS Address and Port Numbers

      Web Management

    • GigE:
      – Connector: 1x RJ45
    • Standard:
      – 100/1000Base-T Ethernet
      – Full/Half Duplex, Auto-Negotiation
    • HTTP: Embedded

      Emergency Alert System (EAS) (Optional)

    • GigE:
      – Connector: 1x RJ45
    • Standard:
      – 100/1000Base-T Ethernet
      – Full/Half Duplex, Auto-Negotiation
    • UDP/RTP: Supported (user-selectable)
    • Protocol: SCTE-18 Supported

      Alarms/Monitoring

    • Local Monitoring:
      – 8x NIM Status LEDs
      – 1x Power LED
    • Local Control: IP Reset Button
    • GUI Supported: Firefox, Chrome
    • Password Protected GUI: Changeable

      Power

    • Power Supply: 12VDC 5.4Amp.
    • Consumption: 23 W Typical
    • Input Voltage Range: 100 – 240 VAC
    • Input Frequency Range: 50/60Hz

      Mechanical and Environmental

    • Chassis (WxDxH): 19.01″ x 9.45″ x 1.74″ (483mm x 240mm x 44.2mm)
    • Weight: 7.9lbs
    • Operating Temperature: 32Ā°F – 122Ā°F (0Ā°C – 50Ā°C)
    • Storage and Transportation Temperature: 32Ā°F – 140Ā°F (0Ā°C – 60Ā°C)
    • Language: English

  • Item Includes:

    • 1x DT-ATSC-IP-8V2
    • 1x Power Cable
    • 1x Installation/Configuration Manual
