Datavideo 4K SDI to HDMI Converter

Add to Wishlist
Key Features
  • 1 x 12G-SDI Input, 1 x HDMI Output
  • 1 x 12G-SDI Loop Output
  • Supports up to DCI 4K60 Resolution I/O
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • A Power Supply Is Included
  • LED Video & Power Signal Indicators

AED2,799.00

Add to Wishlist

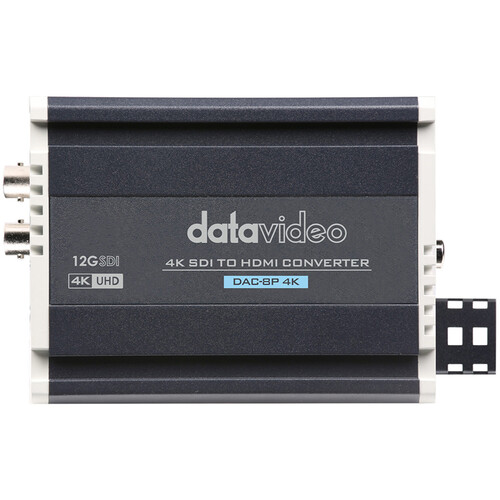

The compact and rugged 4K SDI to HDMI Converter from Datavideo enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized converter supports re-clocking for stability over long cable runs and support for a wide range of pro broadcast resolutions. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port facilitates firmware updates. A power supply is included with the converter.

Features
4K All the Way
The DAC-8P 4K is a broadcast-quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). The DAC-8P 4K is also very easy to use. It is a plug and play converter, and there is no setting needed from your laptop.

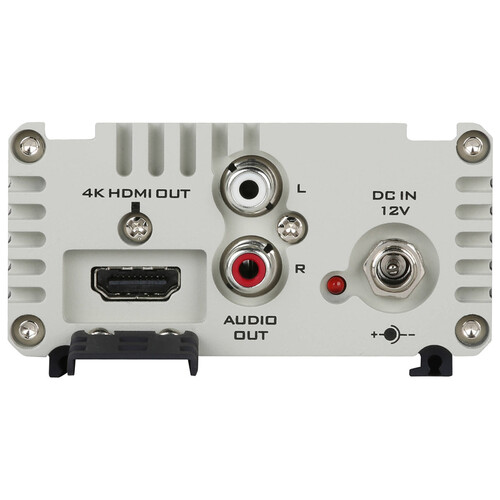

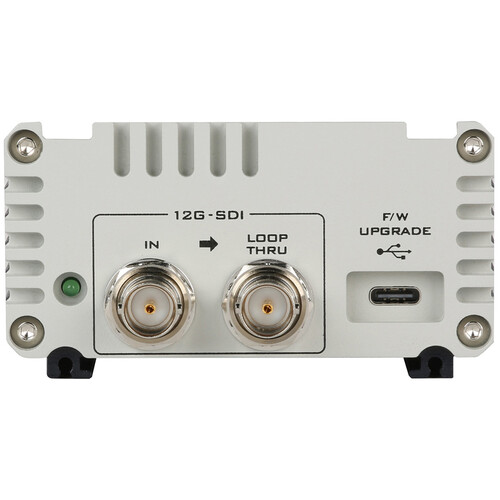

I/O
  • One 12G-SDI input
  • One HDMI output
  • Loop-through 12G-SDI Output
SDI Re-Clocking
Built-in re-clocking on SDI output enables stable output over longer cable runs
Embedded Audio
The DAC-8P 4K provides a video converter from SDI to HDMI, and it also provides you an additional de-embedded 2-channel RCA analog audio output from SDI video to your live production.
LED Indicators
LED indicators for video and power signals.
Deep Color
HDMI Deep Color supports more realistic and stunning of the video. Much better video quality than the regular HDMI video.
Durable Design
The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
SKU: DAC8P-4K Category: Tag:
Inputs / Outputs
Video Inputs
1x BNC (12G-SDI) Female
Audio Inputs
No
Video Outputs
1x HDMI (2.0) Female
1x BNC (12G-SDI) Female (Loop Output)
Audio Outputs
1x 2RCA
Other I/O
1x USB-C Firmware Input
Expansion Slots
No
Format Support
Input Video Format
SDI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K 24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Output Video Format
HDMI / SDI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Embedded Audio
HDMI/SDI: 8-Channel
Standards
HDR Support
Not Specified by Manufacturer
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 8.64 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
General
Dimensions
4.4 x 3.3 x 1.8″ / 112 x 85 x 45 mm
Weight
10.6 oz / 300 g
Packaging Info
Package Weight
1.195 lb
Box Dimensions (LxWxH)
9.3 x 6.5 x 3″
