Datavideo DAC-45 4K Up/Down Cross Converter

Add to Wishlist
Key Features
  • Successor to DAC-70 Converter
  • 4K HDMI Support and Genlock
  • Convert as Low as 480i to Ultra HD 4K
  • Convert VGA/HDMI/SDI to 4K HDMI / 3G-SDI
  • HDMI 2.0 I/O with 4:2:2 Processing
  • 3G-SDI Level A/B Support
  • Reference Input (Black Burst/Tri-Level)
  • Settings Control DIP Switch
  • Audio Lock After Conversion
  • Plug-and-Play Operation

AED4,699.00

Add to Wishlist

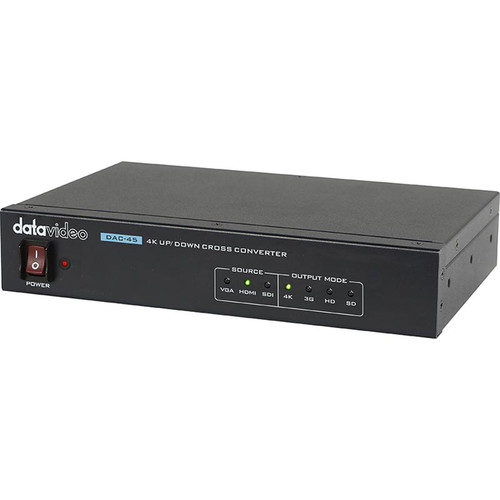

The Datavideo DAC-45 4K Up/Down Cross Converter is the successor to the popular DAC-70. It has all the same features plus 4K HDMI support and genlock. A built-in super resolution engine allows you to up-convert resolutions as low as 720 x 480 all the way up to Ultra HD 4K.

The DAC-45 lets you convert video signals from VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output. It also allows instant and automatic switching between 4K, HD, and SD formats when the video input changes.

The DAC-45 Center Utility software is also provided to you as a free download from Datavideo’s website. This application lets you designate various video and audio settings as well as obtain device information.

Key Features
  • Successor to the DAC-70 with 4K HDMI support and genlock
  • Convert from as low as 720 x 480 all the way up to Ultra HD 4K
  • Convert VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output
  • HDMI 2.0 input/output with 4:2:2 processing
  • Up/down/cross convert between 4K, 3G, HD, and SD formats
  • 3G-SDI Level A/B support
  • Reference input (Black Burst and Tri-Level Sync)
  • Built-in super resolution engine for 4K up-conversion
  • Built-in resolution and frame rate up/down conversion engine
  • Built-in de-interlacer and interlacer (i <-> p conversion )
Miscellaneous
  • Settings control DIP switch
  • Audio lock after conversion
  • Cross reference
  • Plug-and-play operation

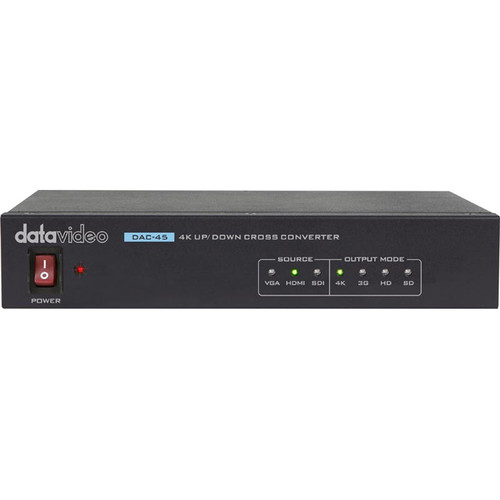

LED Indicators
  • Power LED
  • Three source LEDs (SDI, HDMI, VGA)
  • Four output format LEDs (4K, 3G, HD, SD)
SKU: DAC-45 Category: Tag:

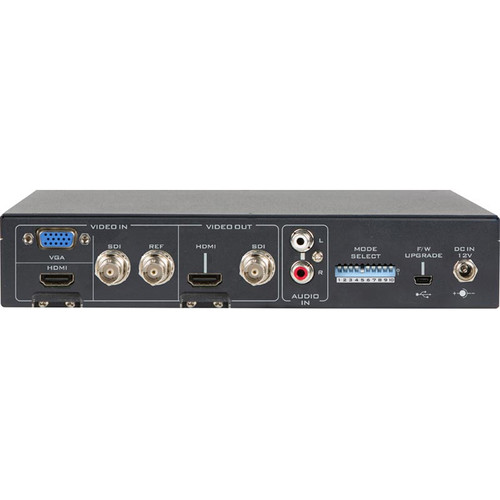

Inputs
1 x 3G/HD/SD-SDI
1 x HDMI
1 x VGA
2 x RCA (unbalanced audio L/R)
1 x reference input
Outputs
1 x 3G/HD/SD-SDI
1 x HDMI
Firmware Updates
1 x mini-USB
Power Input
DC jack
Supported Video Input Formats
SDI (YUV)
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
625i
525i

HDMI (YUV / RGB)
3840 x 2160p60/59.94/50
3840 x 2160p30/29.97/25/24/23.98
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480p, 576p, 480i, 576i
1600 x 1200 at 60 Hz
1400 x 1050 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz

VGA (RGB)
1920 x 1080 at 60 Hz
1600 x 1200 at 60 Hz
1400 x 1050 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz
Supported Video Output Formats
SDI (YUV)
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
625i
525i

HDMI (YUV)
3840 x 2160p60/59.94/50
3840 x 2160p30/29.97/25/24/23.98
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
576p
480p
576i
480i
Video Processing
SDI: YUV 4:2:2
HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, YUV 4:2:0 (4K only)
Supported Audio Input Formats
Unbalanced Audio L/R: Stereo audio
SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio
HDMI Embedded Audio: Up to 8-ch, 44.1/48/96 kHz, PCM audio
Supported Audio Output Formats
SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio
HDMI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio
Frame Delay
I: 2-3 fields
P: 0-1 frames
Power Supply
12 VDC, 1 A (9.4 W)
Operating Temperature
32 to 104°F (0 to 40°C)
Humidity
10 to 80%
Certification
CE, FCC
Dimensions
8.6 x 5.5 x 1.6″ (22 x 14 x 4 cm)
Weight
2.2 lb (1 kg)
Packaging Info
Package Weight
3.2 lb
Box Dimensions (LxWxH)
11.5 x 9.8 x 4.1″
