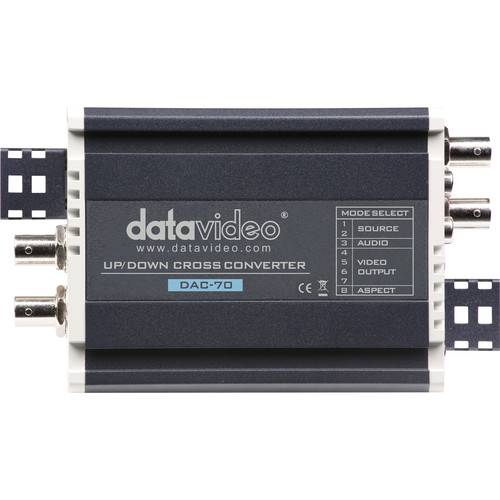

Datavideo DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter

Add to Wishlist
Key Features
  • 10-bit Processing
  • SD/HD/3G-SDI, HDMI, & VGA Inputs
  • 2x SD/HD/3G-SDI Outputs
  • HDMI Output
  • SD/HD/3G-SDI Loop-Through
  • Analog Stereo Audio Input
  • Supports Embedded SDI/HDMI Audio
  • Firmware Upgrades via mini-USB Port

AED2,699.00

Add to Wishlist

The DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter from Datavideo converts between SD, HD, and 3G formats. It supports 10-bit video processing and accepts VGA, HDMI, and SD/HD-3G-SDI video input signals and automatically converts them to the selected output format. The DAC-70 supports resolutions up to 1080p60 and up to 8 channels of embedded SDI or HDMI audio. An analog L/R audio input is also provided. Thanks to a built-in mini-USB port, the converter is firmware upgradeable for support of future video formats. A 12V / 1A power supply and cord comes included.

  • Low SDI jitter with long cable lengths
  • Compatible with optional RMK-2, for holding multiple converters and distribution amplifiers in a 2RU space
  • Compatible with the MB-4 battery adapter
  • Compatible with MB-5 strap adapter
SKU: DAC-70 Category: Tag:
Supported Input Formats
3G-SDI:
1080p 50/59.94/60

HD-SDI:
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60

SD-SDI:
525i
625i

HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
576p
480p
800×600@60Hz
1024×768@60Hz
1280×1024@60Hz
1366×768@60Hz
1400×1050@60Hz
1600×1200@60Hz

VGA:
800×600@60Hz
1024×768@60Hz
1280×1024@60Hz
1366×768@60Hz
1400×1050@60Hz
1600×1200@60Hz
Supported Output Formats
SDI/HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i (50/59.94/60)
720p (50/59.94/60)
525i
625i
Color Spaces Supported
YUV / RGB
Audio Support
SDI input: embedded audio up to 8-channel, 48 KHz, PCM audio
HDMI input: embedded audio up ot 8-channel, 44.1/48/96 KHz, PCM audio
SDI/HDI output: embedded audio up to 8-channel, 48 KHz, PCM audio
Inputs
1 x VGA
1 x HDMI
1 x SD/HD/3G-SDI
1 x Analog audio left/right pair
Outputs
2 x SD/HD/3G-SDI
1 x HDMI
1 x SD/HD/3G-SDI loop-through
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
8.3 x 6 x 2.2″
