dbx ZC-Bob Wall-Mounted Breakout Box

Add to Wishlist
Key Features
  • For Home Cable Runs and Parallel Wiring
  • Connects to ZonePRO and DriveRack
  • Up to Six Zone Controllers
  • Maximum Run Length of 1000 Feet
  • Takes RJ-45 and Cat 5 / Cat 5e Cables

999.00 د.إ

Add to Wishlist

dbx DBXBOB-V Overview

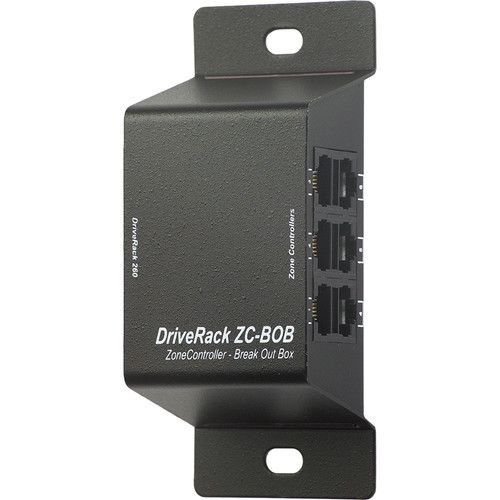

The ZC-Bob Wall-Mounted Breakout Box from dbx is a utility device intended to allow connection between dbx Zone Controllers and the DriveRack and ZonePRO devices. The ZC-Bob can take DC control voltages from up to six RJ-45 connected Zone Controller devices for distances up to 1000 feet using parallel wiring and send them via one RJ-45 output to either the DriveRack or ZonePro, for home cable runs or via Cat 5 / Cat 5e cable for parallel wiring. An ideal utility for any installed cable run that requires some extra distance or the need to merge multiple zone controllers for a single installed device.

SKU: DBXBOB-VQ Category: Tag:
General
Compatibility
dbx DriveRack Any Model
dbx ZonePRO Any Model
Power
Power Source
Proprietary Interface (Built-In)
DC Input Power
5 to 24 VDC
Environmental
Certifications
UL
Physical
Mounting
Back: 2x Standard Wall Screw Mount
Color
Gray
Material of Construction
Metal
Cable Length
300 to 1000′ / 91.4 to 304.8 m (Max Length Only with One, Non-Parallel Zone Controller)
Dimensions
Not Specified by Manufacturer
Weight
Not Specified by Manufacturer
