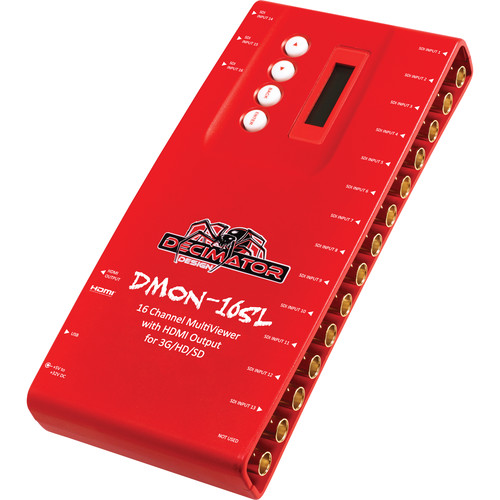

DECIMATOR DMON-16SL 16-Channel SDI Multiviewer with HDMI Output

Key Features

Streams 16 SDI Inputs to Single Display
16 SD/HD/3G-SDI Inputs
HDMI Output
Supports Embedded Audio
USB and Front Panel Control
Any Window Can Be Made Full Screen

AED3,999.00

Make an HDMI screen an SDI multiview monitor with DECIMATOR‘s DMON-16SL 16-Channel SDI Multiveiwer. The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable. Having both of these interfaces precludes the need for obscure LED status lights or complicated DIP switches.

The DMON-16SL features 16 SDI inputs which support SD,HD, and 3G-SDI standards. Inputs have auto-detection so video streams are displayed correctly. Each input is separate from the others, allowing multiple video frame rates and resolutions to be displayed simultaneously when running as a multi-viewer. The on-screen layout can be changed to display the windows in the position and size of your choosing. A pass-through mode will show only a single input on the display at a time, scaling the video to match the resolution of your display.

Note:

Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, the ability to set the SDI output to 3G level A or B and convert between A and B, and custom UMDs.

Features

Custom layouts with various standard layouts

Audio ID overlay

Load and restore custom layouts

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen and Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

Variable aspect ratios per window

SKU: DD-16SL Category: HDMI Output Tag: DD-16SL

Key Specs

Inputs	16 x BNC (3G-SDI)
Outputs	1x HDMI
Video Format	HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps

Interfaces

Inputs	16 x BNC (3G-SDI)
Outputs	1x HDMI
Other I/O	1x USB-A

Standards

Video Standard Compliance

SMPTE 259M/274M/292M/296M/424M

Transmission

Video Format

HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps

Power

Power I/O

1x Barrel (5 to 35 VDC) Input

General

Dimensions

8.7 x 4.1 x 1.2″ / 220.0 x 103.7 x 29.5 mm

Packaging Info

Package Weight	2.765 lb
Box Dimensions (LxWxH)	12.5 x 6.35 x 2.55″
