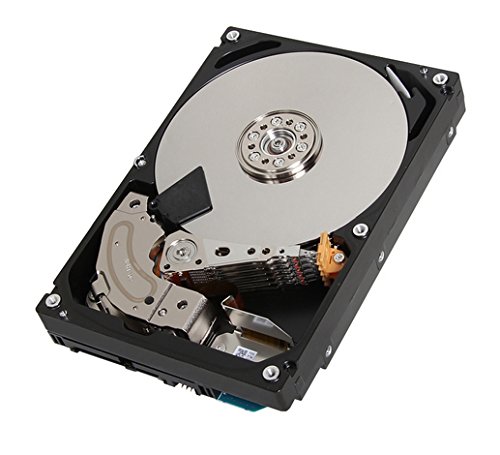

Dell 3PRF0 / Toshiba MG04SCA60EE 6TB SAS Hard Drive

Add to Wishlist

د.إ1,299.00

Add to Wishlist

Dell 3PRF0 / Toshiba MG04SCA60EE 6TB / 6000GB 12Gbps 7200 RPM 512E Enterprise SAS / Serial Attached SCSI Hard Disk Drive – Brand New OEM

Alt. PN: HDEPF10DAA51
Dell Model Number: 03PRF0, 3PRF0,

The up to 6TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm.
Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems. While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE).
Model options supporting Sanitize Instant Erase (SIE) are also available. This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.

Key Features

    • Industry Standard 3.5-inch 26.1 mm Height Form-Factor
    • Large Capacity (6 / 5 / 4 / 2 TB Models)
    • 7,200rpm Performance
    • Dual-Port 12.0 Gbit/s SAS Interface
    • 550 total TB Transferred per Year Workload Rating
    • 4Kn or 512e Advanced Format Sector Technology
    • Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events

Sanitize Instant Erase (SIE) Option Available

Applications

  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems
SKU: MG04SCA60EE Category: Tags: , ,
Toshiba Enterprise HDD
Standard Model Numbers MG04SCA60EE
Alt Model Numbers HDEPF10DAA51
Dell Model Numbers 3PRF0, 03PRF0
Basic Specifications
Interface SAS-3.0
Interface Speed 12Gbps
Formatted Capacity 6TB / 6000GB
Logical Data Block Length (HOST) 512 / 520 / 528 B (Emulation)
Logical Data Block Length (DISK) 4,096 / 4,160 / 4,224 B
Environmental Compliance RoHS Compatible
Performance
Buffer Size 128 MB
Rotational Speed 7,200 rpm ±0.1 %
Average Latency Time 4.17 ms
Data Transfer Speed (Sustained) 205 MiB/s
Reliability
Unrecoverable Error Rate 10 per 10e16 bits read
MTTF 1,400,000 hours
24 x 7 Operation Yes
Workloads 550 TB/y
Power Requirements
Supply Voltage 5 V ±5%
12 V ±5%
Power Consumption (Read / Write) 11.8 W
Power Consumption (Idle-B) 6.1 W Typ
Dimensions & Weight
Height 26.1 mm Max
Width 101.6 mm ±0.25 mm
Length 147 mm Max
Weight 770 g Max
Environmental Requirements
Temperature (Operating) 5 to 55°C
Temperature (Non-operating) -40 to 70°C
Humidity (Operating) 5 to 90 % R.H.
Humidity ( Non-operating ) 5 to 95 % R.H.
Altitude ( Operating ) -305 to 3,048 m { -1,000 to +10,000 feet }
Altitude ( Non-operating ) -305 to 12,192 m { -1,000 to +40,000 feet }
Vibration ( Operating ) 7.35 m/s { 0.75 G } ( 5 to 300 Hz )<br) 2.45=”” m=”” s2=”” {=”” 0.25=”” g=”” }=”” (=”” 300=”” to=”” 500=”” hz=”” )<=”” td=””></br)>
Vibration ( Non-operating ) 49 m/s { 5 G } ( 5 to 500 Hz )
Shock ( Operating ) 686 m/s { 70 G } ( 2 ms duration )
Shock ( Non-operating ) 2,940 m/s { 300 G } ( 2 ms duration )
