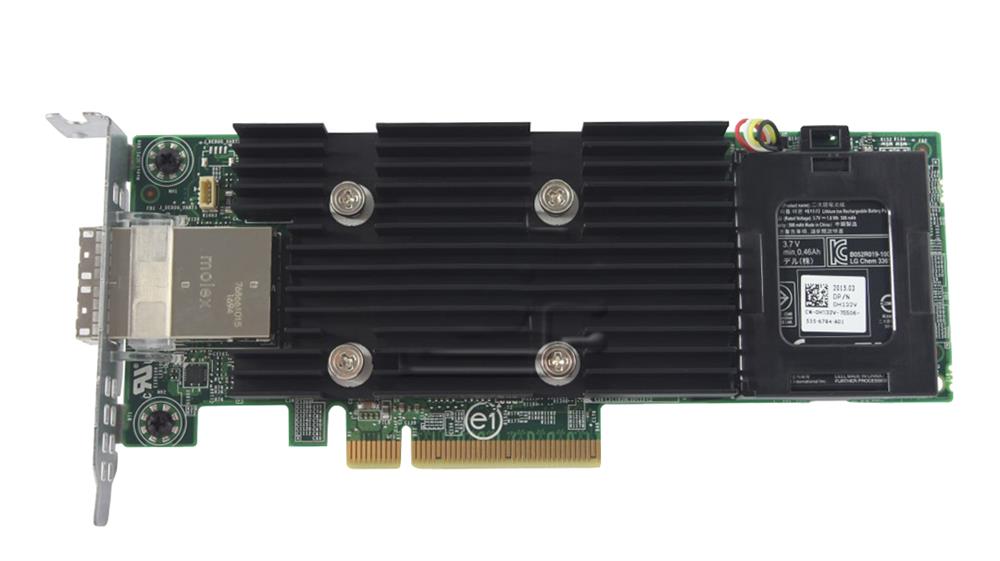

Dell 405-AADY PERC H830 Internal PCIe Adapter SAS Raid Controller
2,499.00 د.إ
Dell 405-AADY / JPFXR / WH3W8 PERC H830 Internal PCIe Adapter SAS Raid Controller with 2GB Cache – Brand New
Dell 405-AADY / JPFXR / WH3W8 PERC H830 Internal PCIe / PCI Express Adapter SAS / Serial Attached SCSI Raid Controller with 2GB Cache – Brand New
Highlights
- Enterprise data protection
- Sophisticated DAS topologies
- Unsurpassed performance and high reliability
Overview
The PERC H830 RAID Adapter from Dell offers reliability and performance in addition to providing management with the tolerant disk subsystem failures. This RAID controller offers expandable 2 GB storage capacity to improve the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system.
Manufacturer Part#: JPFXR, 0JPFXR, WH3W8, 0WH3W8
Dell Part#: 405-AADY
This product is compatible with the following systems:
PowerEdge R430, R530, R730, R730XD, R930, T130, T330, T430, T630, VRTX
| Weight | 0.907 kg |
|---|
| Dell | |
|---|---|
| Manufacturer Part# : | JPFXR 0JPFXR WH3W8 0WH3W8 |
| Dell Part# : | 405-AADY |
| GeneralSpecifications | |
| Device Type | Storage controller (RAID) – plug-in card – low profile |
| Host Bus | PCIe 3.0 x8 |
| Storage Controller | |
| Interface | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| Buffer Size | Low Profile |
| Supported Devices |
|
| Channel Qty | 8 |
| Max Storage Devices Qty | 255 |
| RAID Level |
|
| Processor | LSI LSISAS3108 |
| Expansion / Connectivity | |
| Interfaces | 2 x SAS 12Gb/s – 36 pin 4x Mini SAS HD (SFF-8643) (internal) |
| Miscellaneous | |
| Features |
|
| Compliant Standards | CEM |
| Software / System Requirements | |
| OS Required |
|
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.5 in |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Compatibility Information | |
| Designed For |
|
