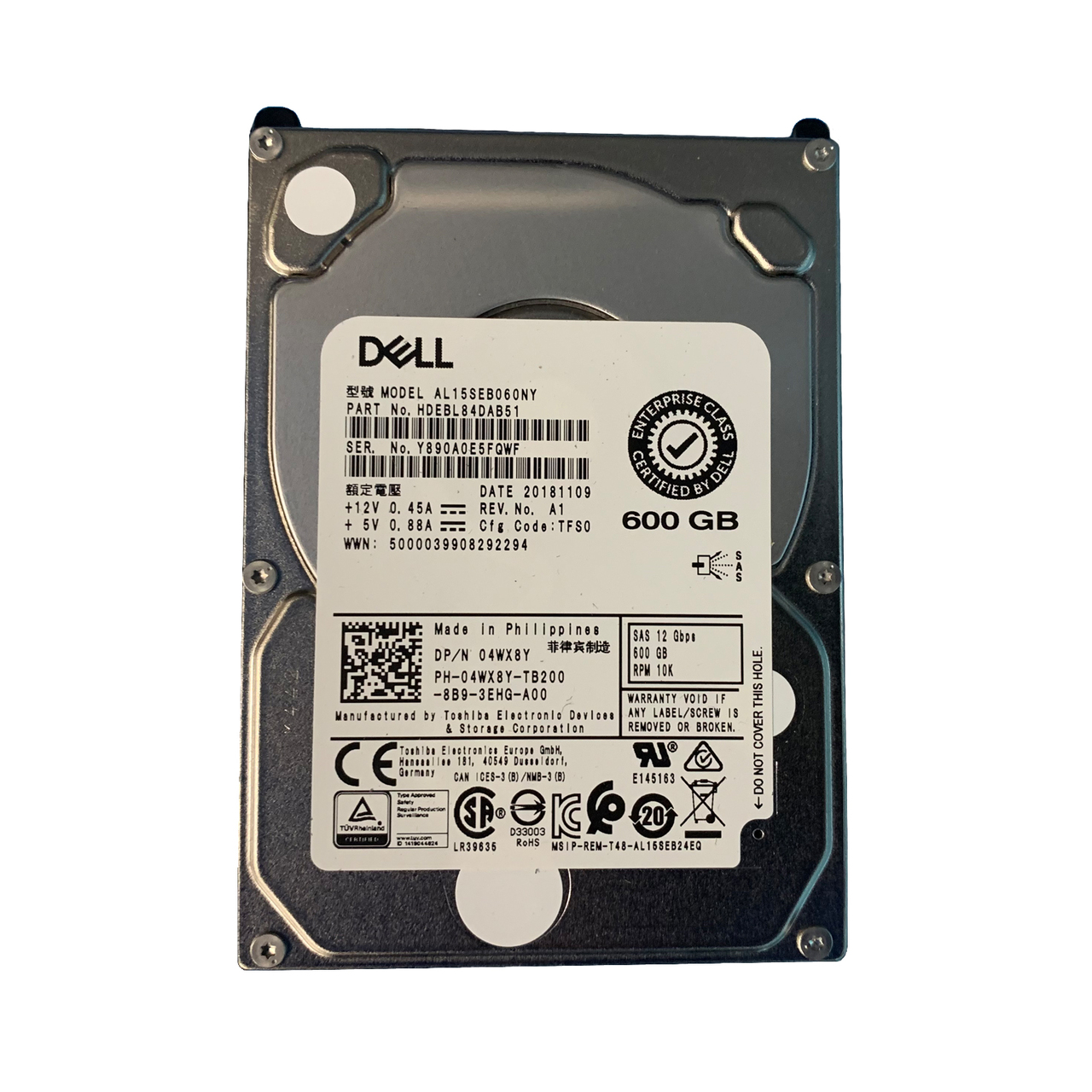

Dell 4WX8Y / Toshiba AL15SEB060NY 600GB 12Gbps 10K 2.5″ SFF Enterprise SAS Hard Drive

Add to Wishlist

AED599.00

Add to Wishlist

Dell 4WX8Y / Toshiba AL15SEB060NY 600GB 12Gbps 10K 2.5″ SFF Enterprise SAS Hard Drive – Refurbished OEM

Dell 4WX8Y / Toshiba AL15SEB060NY 600GB 12Gbps 10K 2.5″ SFF Enterprise SAS Hard Drive – Refurbished OEM

The 12.0 Gbit/s SAS interface AL15SEB Series Enterprise Performance HDDs provide up to 2.4 TB capacity and 10,500rpm performance with Enterprise-class reliability.  Engineered for mission critical IT operations, including database servers and hybrid storage platforms, AL15SE Series provides a range of models including 512 native (512n), or emulated 512 (512e) or 4K native(4Kn) sector length technologies for suitable application and operating system compatibility.   Toshiba Persistent Write Cache technology protects against data loss in the event of unexpected power loss, and helps maintain suitable performance and data reliability for high-duty cycle Mission Critical environments.

Key Features

  • 2400, 1800, 1200, 900 and 600 GB Capacity (Advanced Format sector technology models)
  • 1200, 900, 600, 300GB (512n sector technology models)
  • Space Efficient, Power Saving 2.5-inch Form Factor
  • 12.0 Gbit/s SAS Interface for Better Performance
  • 10,500 rpm Performance
  • Industry Leading Average Latency (2.86ms)
  • 24/7 Mission Critical Workload Performance and Data Reliability
  • 512n sector length support in all capacities for optimum legacy application compatibility
  • Toshiba Persistent Write Cache Technology
  • Sanitize Instant Erase (SIE) Option

Applications

  • Tier 1 Mission-Critical Servers and RAID Storage
  • Tier 1 Hybrid Storage platforms Servers hosting transaction-based applications
  • Rack-Optimized Data Centers Content Serving with low-latency requirements
  • Software-defined and Converged Storage architecture
  • Mission-Critical Server Boot and Logging
SKU: AL15SEB060NY Category: Tags: , ,
Weight 0.220 kg
Specifications
Model Number AL15SEB060NY
Dell Part Number 4WX8Y
Drive Capacity 600GB
Drive Interface SAS 2.0
RoHS Compliant Yes
Transfer Rate to Host 12 Gb/sec
Performance
Track-to-track Seek 0.2ms typ. (Read), 22ms typ. (Write)
Average Seek Time 3.7ms typ. (Read), 4.1 ms typ. (Write)
Rotational Speed 10,500 RPM
Average Latency 2.8 ms
Buffer Size 128MB
Power Requirements
Voltage 5V (+/- 5%), 12V (+/- 5%)
Spin up (start) Power 12V (=/-5%) @ 1.65A (peak) 3.0A (peak < 100us) 1.5V (+/-5%) @ 1.1A (peak)
Power Idle (Ready) 4.0 watts (max.)
Physical Size
Dimensions (W) x (D) x (H) 69.85 mm (2.75”) x 100.45 mm (3.95”) x 15 mm (0.59”)
Weight 220 g, or less
Environmental
Temp
– Operating
– Non-Operating		 5° to 55°C (41° to 131°F)
-40° to 70°C (-40° to 158°F)
Humidity
– Operating
– Non-Operating		 5% to 95% RH
5% to 95% RH
Vibration
– Operating
– Non-Operating		 (0.6mm) 5 to 20 Hz / 9.8 m/s² (1.0G) 20 to 300 Hz
(3.1mm) 5 to 20 Hz / 49 m/s² (5.0G) 20 to 300 Hz
Shock
– Operating
– Non-Operating		 980 m/s2 (100G) 1ms
3,920 m/s2 (400G) 1ms
Altitude
– Operating
– Non-Operating		 -1,000 to 10,000 ft
-1,000 to 40,000 ft
Acoustics
Acoustics (Ready) 30dB
Reliability
Mean Time Between Failures (MTBF) 2,000,000 hours
Component Life 5 years POH
