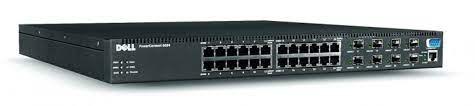

Dell 6024 PowerConnect 24 Port Gigabit Switch

Port Configuration

• 24 10/100/1000BASE-T ports
• 8 Gigbit Ethernet SFP slots (combo) for fiber support
• Out-of-band RS-232 and 10/100BASE-T management console ports

Performance

• Switching Capacity 48.0 Gbps
• Forwarding Rate 35.6 Mpps
• Up to 14,000 MAC Addresses
• 256MB of CPU SDRAM
• 64MB of packet buffer memory
• 32MB of Flash Memory

Management

• Web-based management interface
• Industry-standard command line interface
• SNMPv1 and SNMP v2c supported
• 4 RMON groups (history, statistics, alarms, and events)
• BootP/DHCP IP address management; DHCP helper/relay
• Syslog remote logging

Quality of Service

• 8 priority queues per port, adjustable WRR and Strict Priority scheduling
• Layer 2/3/4 Tristed Mode (IEEE 802.1p taggin, DSCP,TCP/UDP)
• Advanced mode using layer 2/3/4 flow-based policies, including metering/rate limiting, marking and bandwidth guarantees

Security

• Port-Based MAC address alert and lock-down
• Layer 2/3/4-based Access Control Lists (ACLs); ACLs can be bound to ports, VLANs or link aggregation groups;up to 1024 ACLs supported, up to 1024 Access control Entries (ACEs) per ACL, up to 1024 ACEs per switch
• RADIUS support for switch management access
• SSL/SSH encryption for switch management traffic
• SNMP access filtering

VLAN

• IEEE 802.1Q tagging, port-based and protocol-based, up to 4063 VLANs
• Dynamic VLANs with GVRP support

Multicast

• Static IP Multicast
• Dynamic Multicast – IGMP, IGMP snooping

Switching Features

• Link Aggregation, up to 7 ports per aggregated link (IEEE 802.3ad) and up to 7 aggregated links, LACP support
• Broadcast storm control
• Port mirroring with one-to-many support
• Jumbo frame support up to 9018 bytes

Routing Features

• Static routes
• RIP v1/v2, up to 128 routing interfaces
• OSPF v1/v2, up to 128 routing interfaces
• VRRP (Virtual Router Redundancy Protocol)
• DVMRP (Distance Vector Multicast Routing Protocol)
• Up to 24,000 unicast routes
• Up to 8,000 multicast routes
• Up to 128 routing interfaces per VLAN
• Up to 256 multicast routing groups

Availability

• Spanning Tree and Rapid Spanning Tree with Fast Link support
• Dual firmware images
• Configuration file upload and download via TFTP
• Dual internal redundant hot-pluggable power supplies
• Dual internal redundant hot-pluggable cooling fans
• Integrated CableTester

Alternate MPNs: CG271

Weight: 22 lb
