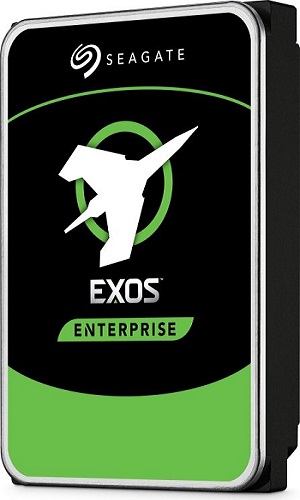

Dell 8JYD7 / Seagate ST12000NM0128 12TB SATA Hard Drive

Dell 8JYD7 / Seagate Exos X14 ST12000NM0128 12TB 3.5″ LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive – Brand New OEM

Dell 8JYD7 / Seagate Exos X14 ST12000NM0128 12TB 3.5″ LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive – Brand New OEM

Alternate PNs: KVW2X 8JYD7 08JYD7 2H3131-136 Functionally identical to: ST12000NM0008 & ST12000NM0038

Seagate Exos X14 ST12000NM0128 12TB FastFormat is capable for 512e or 4Kn Enterprise SATA Hard Drives

May require TCG-compliant host or controller support.

Exos Enterprise X14 and X14z
Scalable. Responsive. Innovative.

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

• 14TB per drive for 40% more petabytes per rack
• Industry’s lowest power and weight for optimum data center TCO
• Highest 14TB hard drive performance with enhanced caching, making it perfect for big data applications
• Hyperscale SATA model tuned for large data transfers
• PowerBalance feature optimizes IOPS/Watt
• Helium sealed-drive design with no porosity and uniform density
• Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
• Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
• Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
• Proven enterprise-class reliability backed by 2.5M-hr MTBF rating

Best-Fit Applications

• Hyperscale applications/cloud data centers
• Massive scale-out data centers
• Big data applications
• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems, including Hadoop and Ceph
• Enterprise backup and restore— D2D, virtual tape
• Centralized surveillance

IMPORTANT INFORMATION

• All 4Kn/512e drives ship in 512-byte emulation mode and can be easily reformatted to 4Kn (and vice versa) with the FastFormat feature. New sector size will take effect only after a fast format
• FastFormat is not compatible with 512n drives
• FastFormat are only compatible with 512e and 4Kn Drives
• Back up ALL data on drive when reformatting to FastFormat drives or all your data will be lost
• T10 FastFormat conversion between 4Kn and 512e configurations is possible only if sector sizes are exact multiples of 8
• Data must be aligned to 4K sectors to see improved performance in 4Kn fomat.
