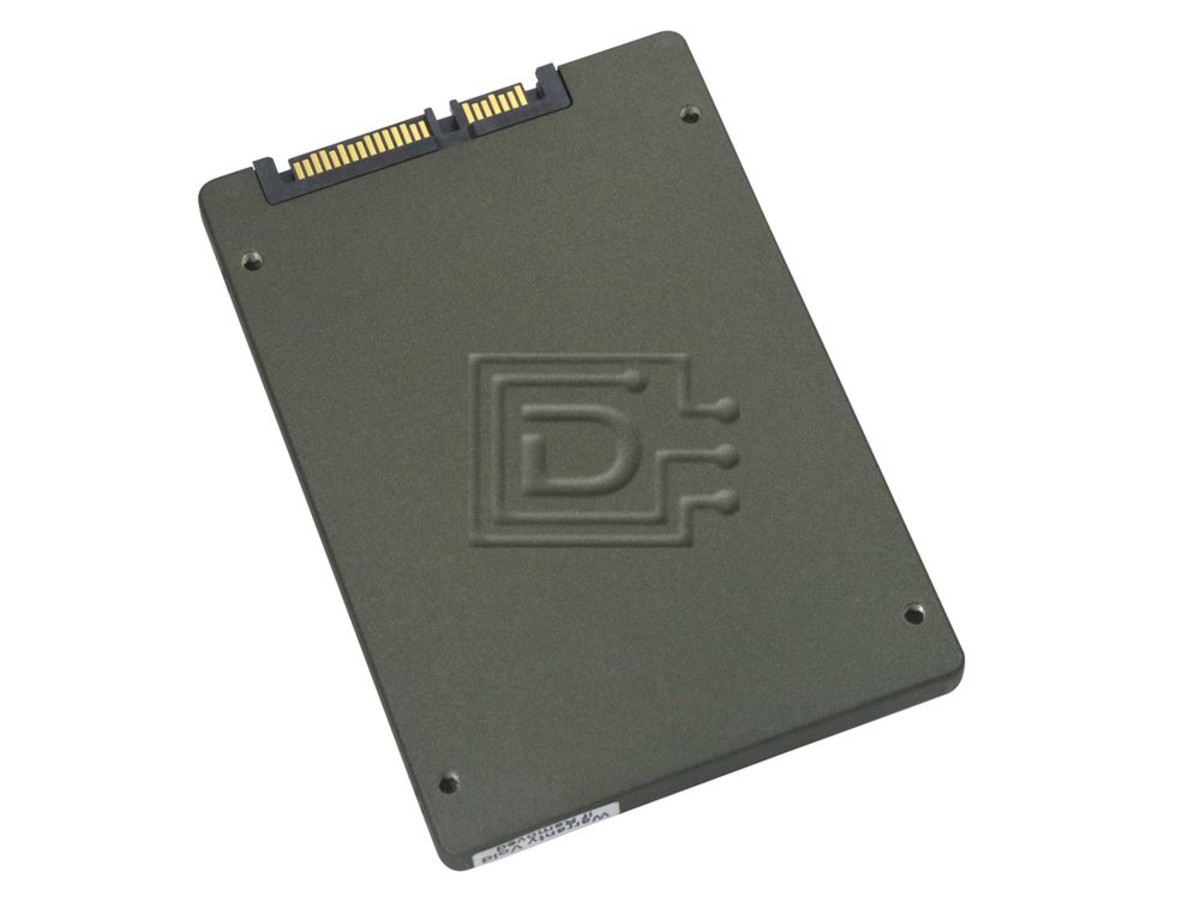

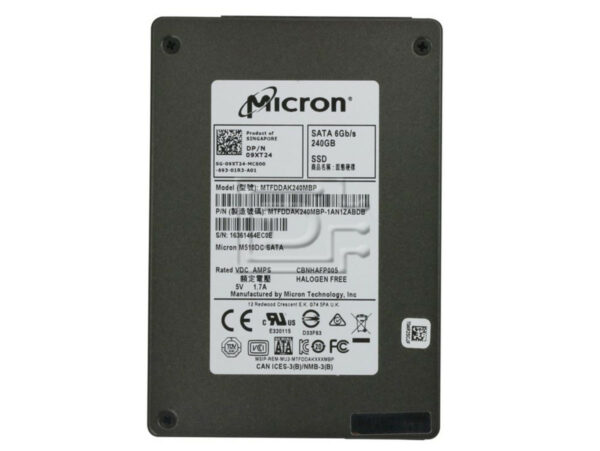

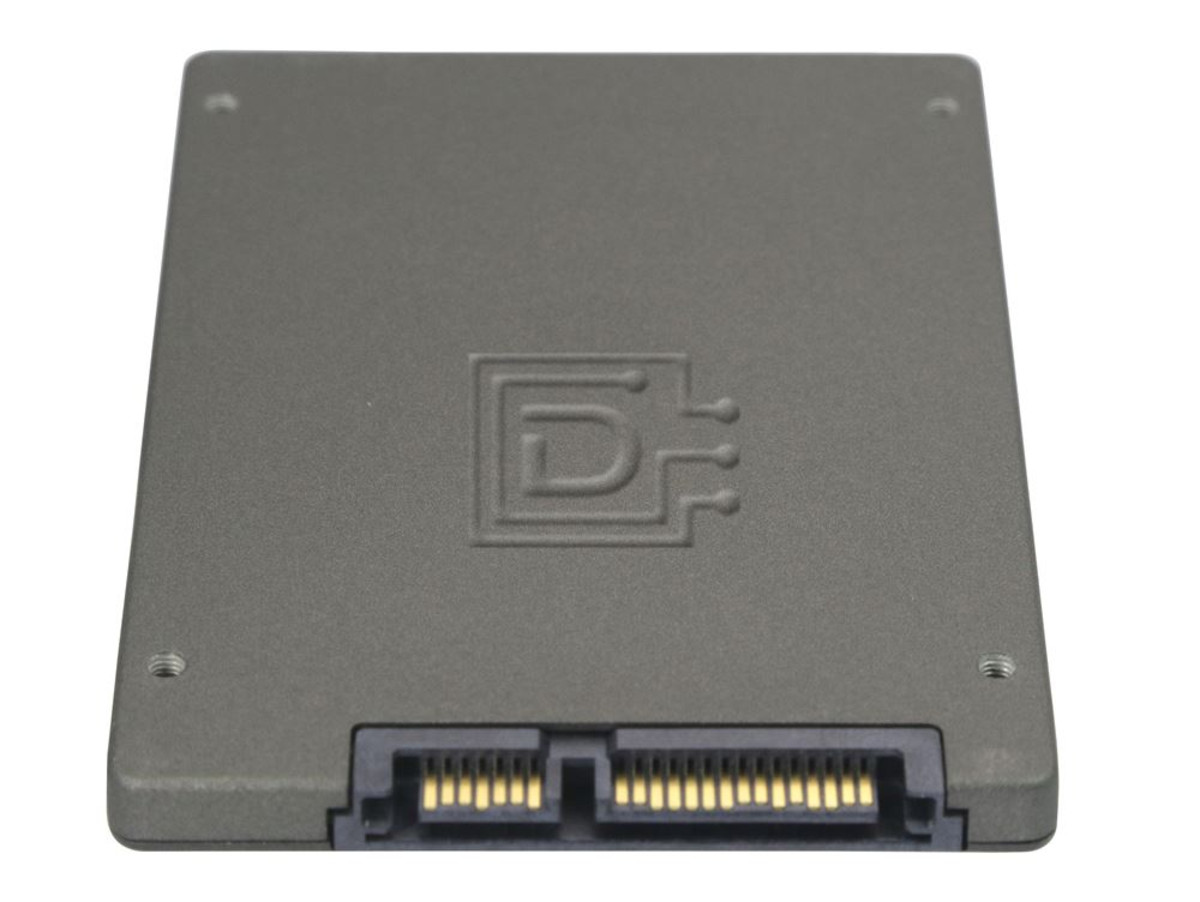

Dell 9XT24 / Micron M510DC MTFDDAK240MBP-1AN1ZABDB 2.5″ 240GB SATA III Enterprise Solid State Disk

Dell 9XT24 / Micron M510DC MTFDDAK240MBP-1AN1ZABDB 2.5″ 240GB SATA III Enterprise Solid State Disk – Brand New

M510DC 2.5-Inch TCG Enterprise SATA NAND Flash SSD
MTFDDAK240MBP
Features
• Micron® 16nm MLC NAND Flash
• SATA 6 Gb/s interface
• TCG Enterprise Ver 1.0 Final Rev 3.0 compliant selfencrypting drive (SED)
• ATA modes supported
– PIO mode 3, 4
– Multiword DMA mode 0, 1, 2
– Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
• 512-byte sector size support
• Hot-plug capable
• Native command queuing support with 32-command slot support
• ATA-8 ACS2 command set compliant
• ATA security feature command set and password login support
• Security erase command set: fast and secure erase

• 240GB performance (steady state) 1, 2
– Sequential 128KB read/write: 420/290 MB/s
– Random 4KB read/write: 63,000/18,000 IOPS
– READ/WRITE latency: 0.50/2.0ms (TYP)

• Reliability0
– MTTF: 2.0 million device hours3
– Static and dynamic wear leveling
– Uncorrectable bit error rate (UBER): <1 sector per 1016 bits read
– End-to-end data protection
– Enhanced power-loss data protection with data protection capacitor monitoring
• Self-monitoring, analysis, and reporting technology (SMART) command set
• Mechanical: 7.0mm height – SATA connector: 5V ±10% – 2.5-inch drive: 100.45mm x 69.85mm x 7.0mm – Conforms to SFF standards
• RoHS-compliant package
• Field-upgradeable firmware
• Power consumption: <6.0W (TYP); <6.3W (TYP) for 600GB/800GB/960GB
• Operating temperature – Commercial (0°C to 70°C)
