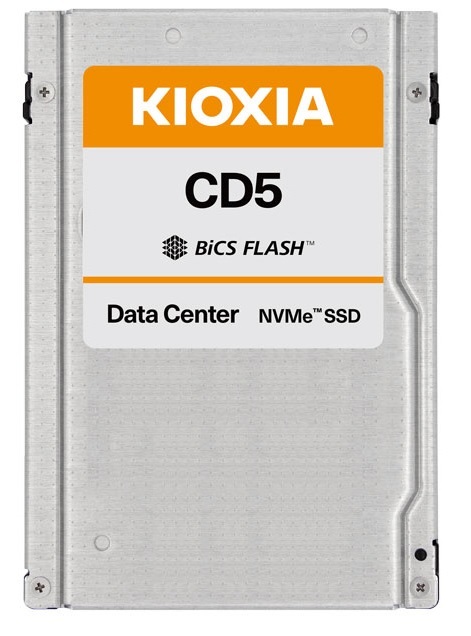

Dell EMC DRC9H / Toshiba Kioxia KCD5XLUG960G 960GB 2.5″ PCIe NVMe 3.0 SSD

Dell EMC DRC9H / Toshiba Kioxia KCD5XLUG960G D5 Series 960GB 2.5″ TLC SFF U.2 PCIe U.2 3.0 SSD – New Pull OEM

Dell EMC DRC9H / Toshiba Kioxia KCD5XLUG960G D5 Series 960GB 2.5″ TLC SFF U.2 PCIe NVMe 3.0 SSD – New Pull OEM

Toshiba Model Number: KCD5XLUG960G
Alt. Dell Part Number: DRC9H, 0DRC9H

CD5 SERIES – DATA CENTER NVMe™ SSD

MAIN SPECIFICATIONS

The CD5 Series is a read-intensive data center NVMe™ SSD that is optimized to support broad range of scale-out and cloud applications that include Big Data/IoT, Online Transaction Processing, and Virtualization. CD5 SSDs, with a PCIeⓇ Gen3x4 lane interface, deliver consistent performance up to 550K IOPS (random read) and 50K IOPS (random write), with active power consumption of 11-13W.

Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CD5 SSDs deliver <1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 7.68TB in a 2.5 inch form factor, making them suited for hyperscale data center applications.

KEY FEATURES

• PCIeⓇ Gen3 x4 lane interface with single port support
• NVMeTM Rev. 1.3a compliant
• Capacities from 960GB to 7.68TB
• Up to 550K random read IOPS (single port (1×4) mode)
• Low power consumption of 11-13W active power
• 2.5 inch small form factor, 15mm Z-Height
• Power loss protection
• End-to-end data protection
• Sanitize Instant Erase (SIE) option *Note 1,4
• Self-encrypting drive (SED) option *Note 2,4
• Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4
• 5-year limited warranty

APPLICATIONS

• Hyperscale
• IoT and Big data analytics
• Online transaction processing (OLTP) (transactional and relational databases)
• Virtualized environments
• Streaming media (Content delivery networks(CDN))
