Dell MHJKF 24-Port Ethernet Switch

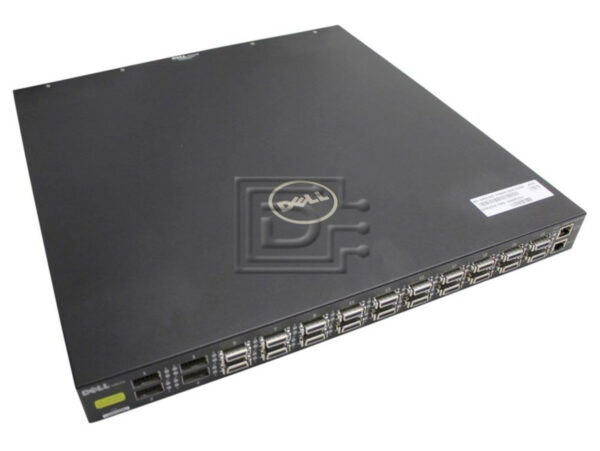

Dell Force10 S-series MHJKF / S2410-01-10GE-24CP 24-Port 10GbE Ethernet Switch – Refurbished

Dell Force10 S-seriesMHJKF 24-port 10 GbE switch with 20 10GBase-CX4, four 10 GbE XFP ports with layer 2 software

Dell Force10 S-Series
S2410 Data Center 10 GbE Switch
High 10 Gigabit Ethernet density for the data center edge; end-to-end 10 Gigabit Ethernet data center solutions; standards-based Layer 2 features.

High Performance, Low Latency 10 GbE Data Center Switches
The Dell Force10 S-Series S2410 combines the industry’s lowest Ethernet switching latency with industry leading 10 GbE density to provide IT managers with more flexible deployment options.

• 24-port 10 GbE fixed configuration 1-RU data center switch
• XFP or CX4 interfaces
• Ultra low 10 GbE switching latency

Key applications
Coupled with the Dell Force10 E-Series, which delivers unmatched resiliency and performance, the S2410 enables IT managers to deploy a reliable end-to-end 10 GbE data center solution, spanning from core aggregation to the server or storage edge.

• Ultra low latency interconnect switch for high performance cluster computing
• Low cost 10 GbE interconnect to network attached storage systems
• Low cost aggregation of 10 GbE uplinks from S25N or S50N switches in server racks
• Connects directly to 10 GbE servers
• Foundation for a virtualized applications model

Key features
Resilient and scalable high density, low latency 10 GbE switch for high performance Ethernet environments.

SAFETY TIPS FOR CANOEISTS

• 24 line rate 10 GbE ports in a 1-RU form factor
  • S2410CP: 20 CX4 ports plus four 10 GbE pluggable XFP interfaces
  • S2410P: 24 XFP interfaces

• Switching latency as low as 300 ns under full load
  • 64 byte to 10,240 byte frames

• Switching fabric capacity of 480 Gbps and forwarding capacity of 360 Mpps
• Supports jumbo frames of up to 10,240 bytes supporting high-end server connectivity and network attached file servers
• 12 link aggregation groups with up to 12 members per group, using advanced hashing for even traffic distribution
• Built-in power redundancy
• CX4 interfaces support up to 1 W of power per port for active cables or electrical to optical extenders
