04 3550600 052 7036860

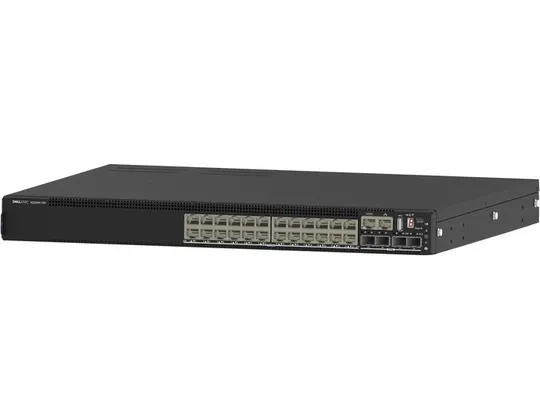

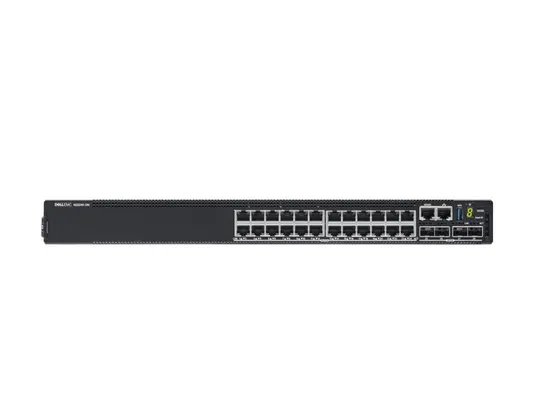

DELL N2224X-ON Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Add to Wishlist
L3, 24×1/2.5GbE RJ-45, 160 Gbit/s, 550W, 1U

AED33,399.00

Add to Wishlist

Highlights

Modernize your campus access network Purpose-built industry’s first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.

SKU: 210-ASPJ Category: Tag:
Feature Details
Switch type Managed
Switch layer L3
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 4
Gigabit Ethernet (copper) ports quantity 24
SFP28 ports quantity 4
USB 2.0 ports quantity 1
Port mirroring Y
Full duplex Y
IP routing Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Auto-negotiation Y
Active link detection Y
VLAN support Y
Number of VLANs 4096
MAC address table 32000 entries
Switching capacity 160 Gbit/s
Forwarding rate 667 Mpps
Packet buffer memory 4 MB
Access Control List (ACL) Y
IGMP snooping Y
Authentication type RADIUS
Multicast support Y
Rack mounting Y
Stackable Y
Form factor 1U
Product colour Black
Power supply included Y
Power consumption (typical) 550 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 45 °C
Storage temperature (T-T) -40 – 65 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 85%
Heat dissipation 812 BTU/h
Width 434.1 mm
Depth 400.1 mm
Height 43.4 mm
Weight 6.49 kg
Harmonized System (HS) code 85176990
