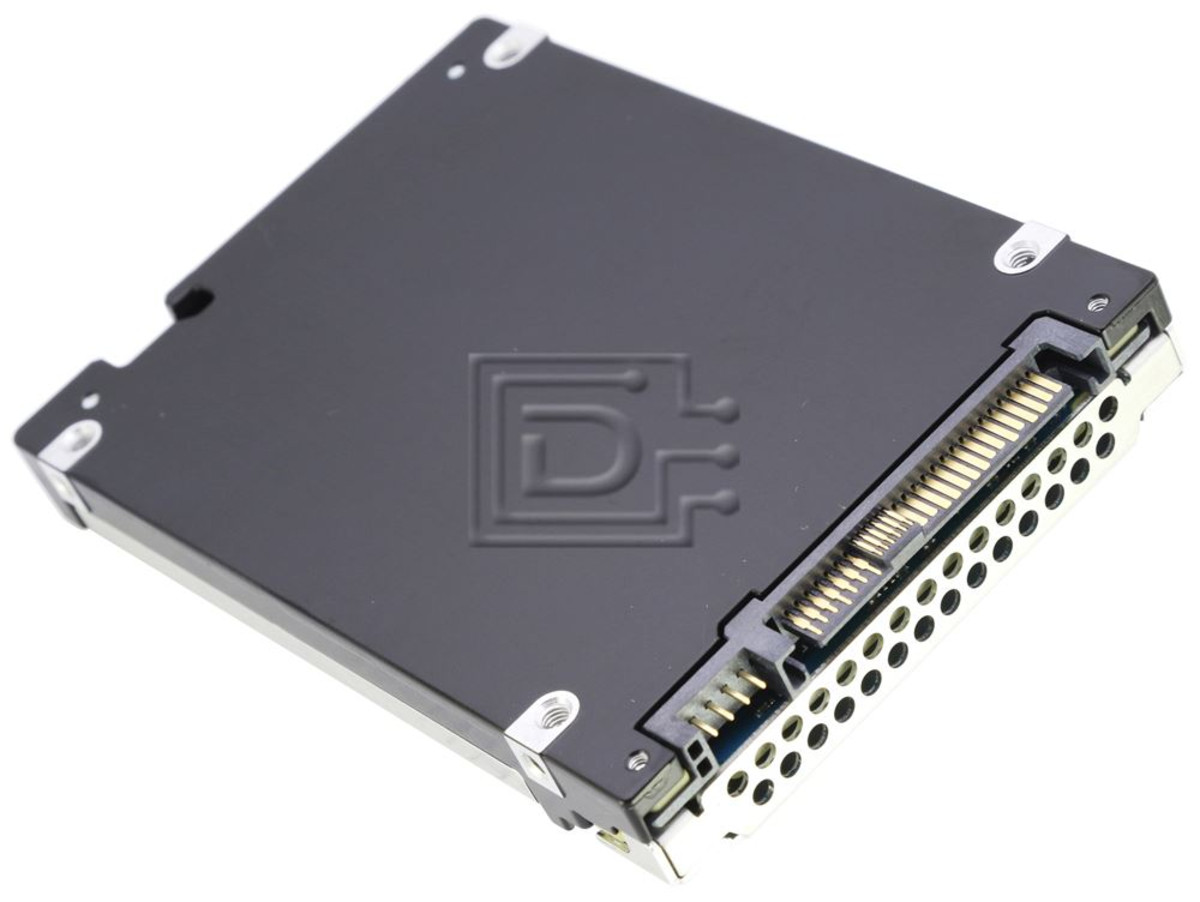

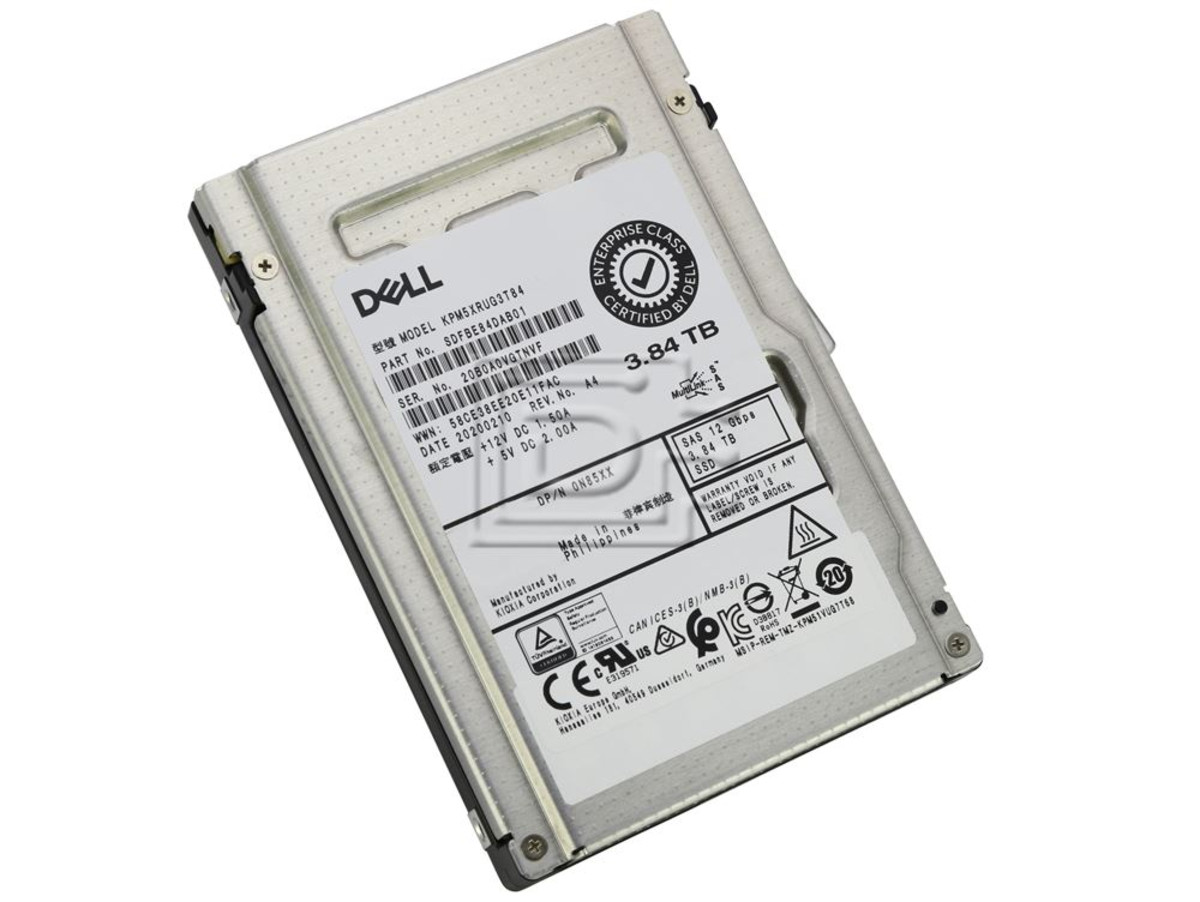

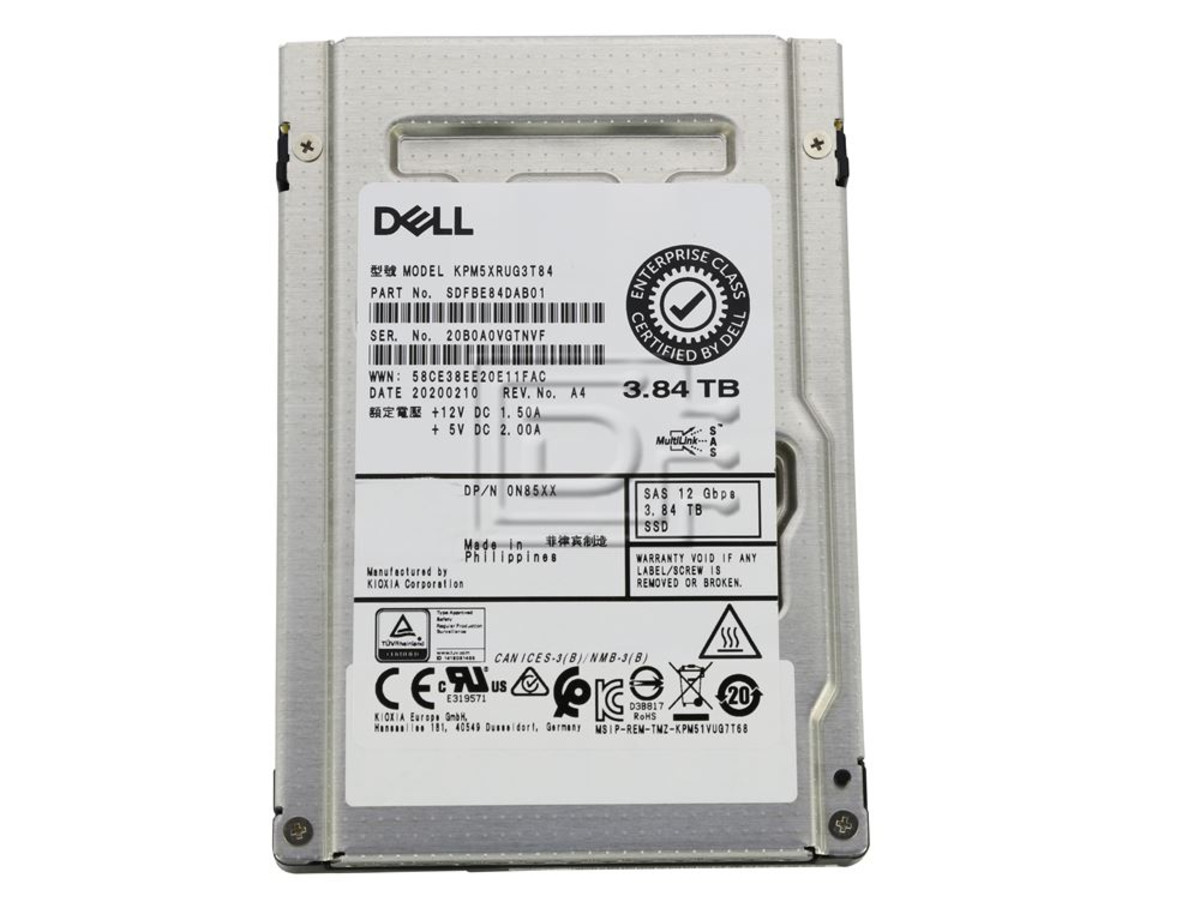

Dell N85XX / KIOXIA Toshiba KPM5XRUG3T84 3.84TB Read Intensive SAS SSD

Add to Wishlist

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2100/2100

Electrical Interface: SAS-3 Serial Attached SCSI v3 – 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 14th Gen High Density ME4084/ME484, Dell 13th Gen. R730/T630, Dell 13th Gen. MD3x60 High Density Arrays, Dell 13th Gen. FD332, Dell 12th Gen M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620

4,999.00 د.إ

Add to Wishlist

Dell N85XX / KIOXIA Toshiba KPM5XRUG3T84 3.84TB 2.5″ 12Gbps Read Intensive 1-DWPD MLC SIE SAS eSSD – Certified 95



PM5-R Series – Enterprise Read Intensive SSD

PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 15.36 TB.

Key Features

  • 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
  • Capacities from 480 GB to 15.36 TB
  • T10 Multi-Stream Write support
  • Up to 385 K random read IOPS (4 KiB) in dual port mode
  • 2.5 inch form factor, 15 mm Z-height
  • 1 DWPD with 100 % Random Write Workload
  • Power loss protection and end-to-end data protection, including T10 DIF
  • Pin-3 power disable support
  • Sanitize Instant Erase (SIE) option
  • Self-Encrypting (SED) option
  • Self-Encrypting (SED), FIPS 140-2 validated option
  • 5-year limited warranty



Key Applications

  • Media streaming
  • Data warehousing
  • Web servers
  • Video on demand (VOD)



Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Category:
Enterprise Read Intensive SSD
Model Number KPM5XRUG3T84
Basic Specifications
Interface SAS-3.0
Interface Speed 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory Type BiCS FLASH TLC
Formatted Capacity 3.84TB / 3,840GB
Sustained 64KiB Sequential Read 2,100 MiB/s
Sustained 64KiB Sequential Write 2,100 MiB/s
Sustained 4KiB Random Read 370,000 IOPS
Sustained 4KiB Random Write 55,000 IOPS
Reliability
MTTF 2,500,000 hours
DWPD 1
Power Requirements
Supply Voltage 5 V ±7 % , 12 V ±7 %
Power Consumption (Operating) 3.2W Typ.
Dimensions
Height 15.0 mm +0 , -0.5 mm
Width 69.85 ±0.25 mm
Length 100.45 mm Max.
Weight 130 g Max.
Enviromental
Temperature (Operating) 0 to 55 °C
Relative Humidity ( Operating ) 5 to 95 % R.H.
Vibration (Operating) 21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating) 9.8 km/s {1,000 G} (0.5 msec)



ROHS Compliant

Alternate MPNs: N85XX 0N85XX SDFBE84DAB01
