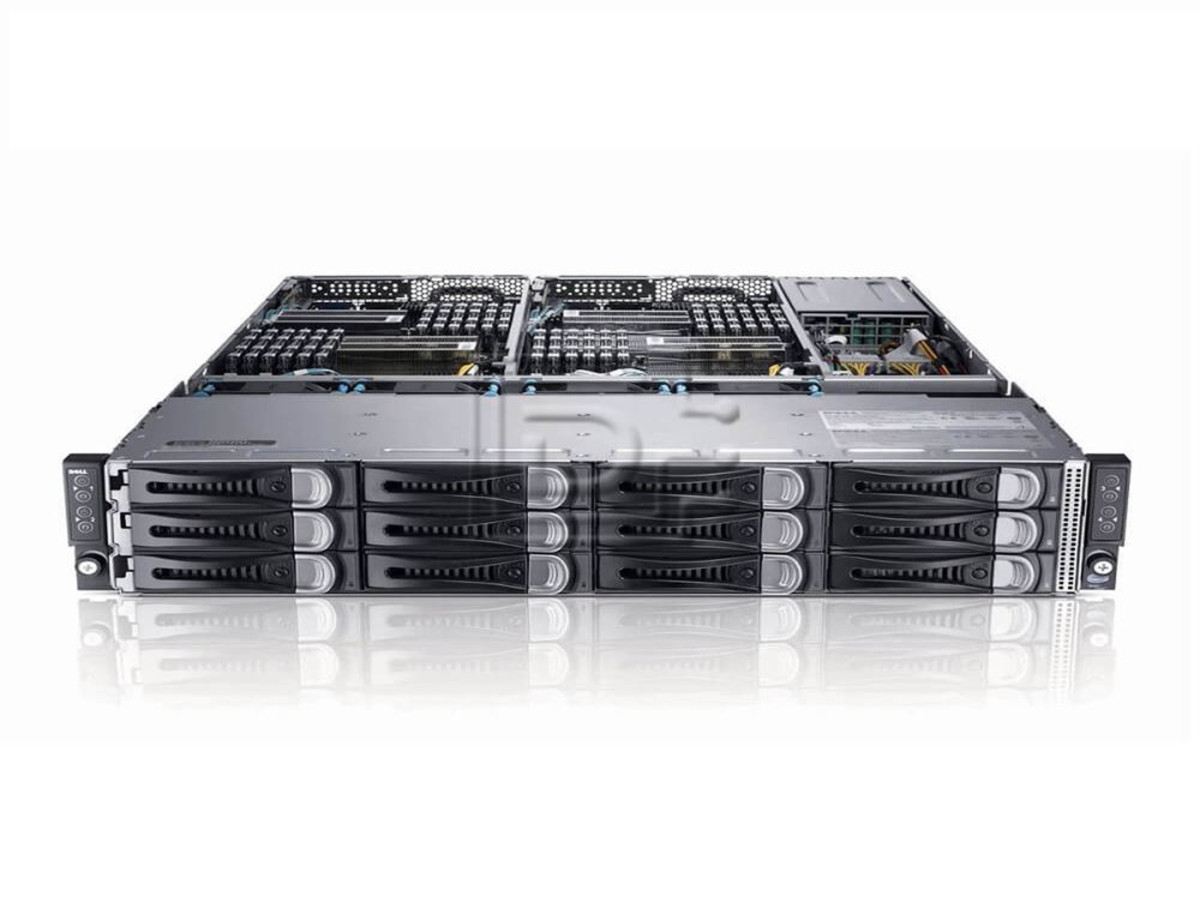

Dell PowerEdge C6100 2U Rackmount Server


Interface Types:Ā SAS Serial Attached SCSI, SATA, USB 2.0, Ethernet RJ45, PCIe, VGA, SFF-8087, Micro SD, Riser

Form Factor:Ā 3.5inx1.0in LFF Hard Drive

Electrical Interface:Ā SATA 300 – 3.0Gbps

On-Board Cache:Ā 2GB

Bays/Ports/Slots:Ā 24

U Height:Ā 2U

Compatible Systems:Ā Dell 11th Gen. R710/T610

AED5,499.00

Dell PowerEdge C6100 Gen11 2U Rackmount Bare Bones / Chassis only Server – No HDDs – Refurbished

Alt MPN: PEC6100

Note:Ā NO HARD DRIVES or TRAYSĀ included, please add to order as separate line item.

PowerEdge C6100
Ultra-dense 2U shared infrastructure, the Dell PowerEdge C6100 supports up to 4 independent server nodes, providing capacity, performance and flexibility in a very dense eco-friendly package.

Designed with your needs in mind
The Dell PowerEdge C6100 is a hyperscale-inspired building block for high-performance cluster computing, Web 2.0 and cloud builders.

Find inside: Four independent nodes feature dual IntelĀ® XeonĀ® 5500/5600 series quad- and hex-core processors. Slots include: 12 DDR3 memory, a x16 PCI Express generation 2 and a x8 PCI Express mezzanine slot. Includes dual-port embedded gigabit Ethernet, and an integrated IPMI 2.0 BMC with a dedicated RJ45 connection. Available with up to 12 x 3.5ā€ or 24 x 2.5ā€ hotplug SAS, SATA or SSD drives.

Along with that capacity and flexibility, the PowerEdge C6100 high-efficiency fans and power supplies are shared across nodes, saving space and weight to create one of the most eco-friendly designs yet.

Best-in-class density without sacrifice
Increasing density shouldn’t mean sacrificing critical features such as single-node serviceability and hot-plug hard drive flexibility. With four 2-socket server nodes in a 2U rack chassis, the PowerEdge C6100 offers maximum density with the convenience of both single-node serviceability and hot-plug 2.5ā€ and 3.5ā€ hard disk drives (HDDs). The result: an uncompromised, remarkably efficient server with 2x the density capability of traditional 1U servers.

Ultimate flexibility in a standard 2U chassis
The PowerEdge C6100 has the specialized features you need to run your hyperscale applications. It has front mounted 3.5ā€ or 2.5ā€ hot-plug hard drive options; up to four discrete 2-socket nodes; x 16 PCIe slot and x8 mezzanine slot expansion options; IPMI 2.0 BMC for remote management; and single node serviceability. Together, these options enable the PowerEdge C6100 to easily adapt to a wide variety of workloads.

Save energy and increase efficiency
By sharing power supplies, fans and backplanes, the PowerEdge C6100 effectively reduces the total amount of power consumed, increases energy efficiency and lowers operating costs

Select Samsung’s latest low-voltage high-density DDR3 memory and you can save more than 70% in energy over previous generation memory solutions.

PowerEdge C server line
The PowerEdge C6100 is part of Dell’s new hyperscale inspired PowerEdge C server line designed to bring the most computer power in the least amount of space with the least energy draw to lower operational costs. These servers have the right combination of what you need and nothing more.

These purpose-built servers are designed for high performance computing, Web 2.0, data analytics, and cloud building. They are best for rack deployments, large homogenous cloud/cluster application environments where the software stack provides primary platform availability and resiliency. The PowerEdge C server line does not come with features you don’t need like comprehensive systems management, or broad enterprise storage.

Global services and support
Dell is dedicated to simplifying IT, and Dell Services can help you manage the complexities of growing and maintaining your hyperscale, high performance and cloud computing environments. Dell’s broad portfolio of planning, implementation and maintenance services can help accelerate your IT initiatives and grow your business.

SKU: PEC6100 Category:
PowerEdge C6100 Technical Specifications
Standard Model Numbers C6100
Alt MPNs PEC6100
Chassis 2U rack-mount
Processors
  • Up to four 2-socket servers, 4 or 6 cores per processor
  • IntelĀ® XeonĀ® 5500/5600 processor series, with L2/L3 cache: 4MB/8MB/12MB
Front Side Bus IntelĀ® QuickPath Interconnect
Chipset IntelĀ® 5520
Acoustics
  • Typically configured 2.5ā€ chassis in 23 +/- 2 C ambient
  • Idle: LwA-UL = 7.0 bels, LpAm = 75 dBA
Primary Storage Maximum internal storage: 24TB SATA or NL 36TB SAS
Drive Bays and Hard Drives (Not Included) 24 x 2.5ā€ hard drive options:

  • 2.5ā€ SAS (10K RPM): 146GB, 300GB, 600GB
  • 2.5ā€ SAS (15K RPM): 146GB
  • 2.5ā€ SATA II (7.2K RPM): 500GB, 1TB
  • 2.5ā€ SATA SSD (SLC): 50GB, 100GB

12 x 3.5ā€ hard drive options:

  • 3.5ā€ SATA (7.2K): 250GB, 500GB, 1TB, 2TB
  • 3.5ā€ SAS (15K): 300GB, 450GB, 600GB
  • 3.5ā€ NL SAS (7.2K): 1TB, 2TB, 3TB
Connectivity
  • Onboard: IntelĀ® 82576 – 2 x Gb Ethernet and 1 x 100Mb Ethernet dedicated management port
  • Add-in: 1Gb and 10Gb Ethernet card options
  • QDR InfiniBand card options
Ports – USB 2 USB ports external (rear)
I/O Slots
  • 1 PCIe x 8 mezzanine daughtercard slot and x 16 riser slot Mezzanine
  • MellanoxĀ® ConnectX-2 40Gb/s dual-port QDR IB adapter (optional) Mezzanine
  • Intel 82599 dual-port 10GbE adapter (optional)
Drive Controllers LSIĀ® 2008 6Gb SAS mezzanine
RAID Controllers In PCIe slot: LSI 9260-8i add-in RAID controller
Power Supplies Dual hot-plug redundant high-efficiency 470W/750W/1100W/1400W power supplies
Fans Shared redundant cooling with 4 x 80mm speed fans detectable with PWM control
Operating System
  • NovellĀ® SUSEĀ® LinuxĀ® Enterprise Server 11 SP1 x64 SP1
  • Red HatĀ® Enterprise Linux 6.1
  • MicrosoftĀ® Windows ServerĀ® 2008 R2 Enterprise SP1 and HPC Server 2008 R2 x64 SP1
Server Management
  • Embedded BMC with IPMI 2.0 support with 1 x 10/100 Mbps RJ45 connector
  • IntelĀ® Intelligent Power Node Manager compliant
