Dell PowerEdge T320 5U Tower Server Intel Xeon E5-2420 1.90GHz 8 X 3.5″ LFF Bays Hot Swap Power


Interface Types:Ā SAS Serial Attached SCSI, SATA, USB 2.0, Ethernet RJ45, PCIe, VGA

Form Factor:Ā 3.5inx1.0in LFF Hard Drive

Electrical Interface:Ā SAS-2 Serial Attached SCSI v2 – 6.0Gbps

On-Board Cache:Ā 4GB

Bays/Ports/Slots:Ā 8

U Height:Ā 5U

AED5,499.00

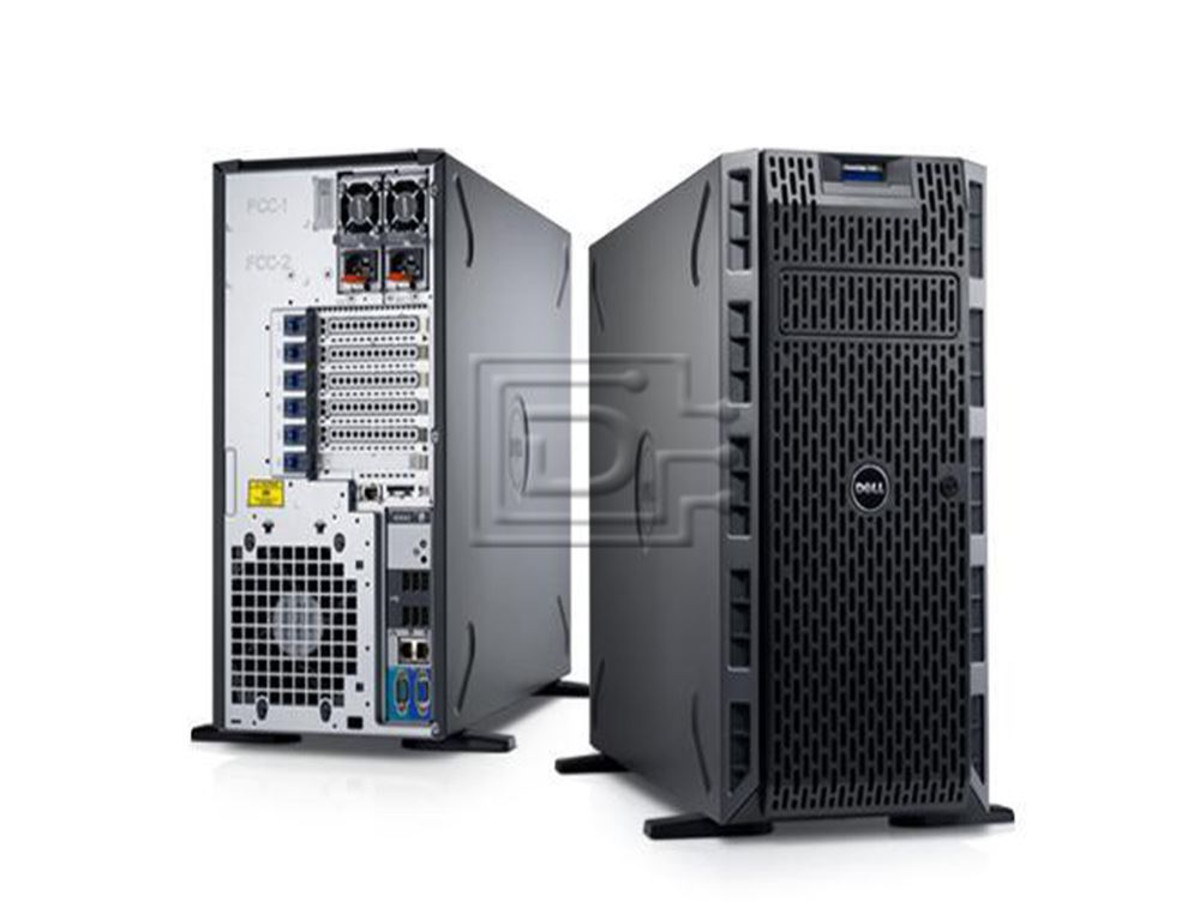

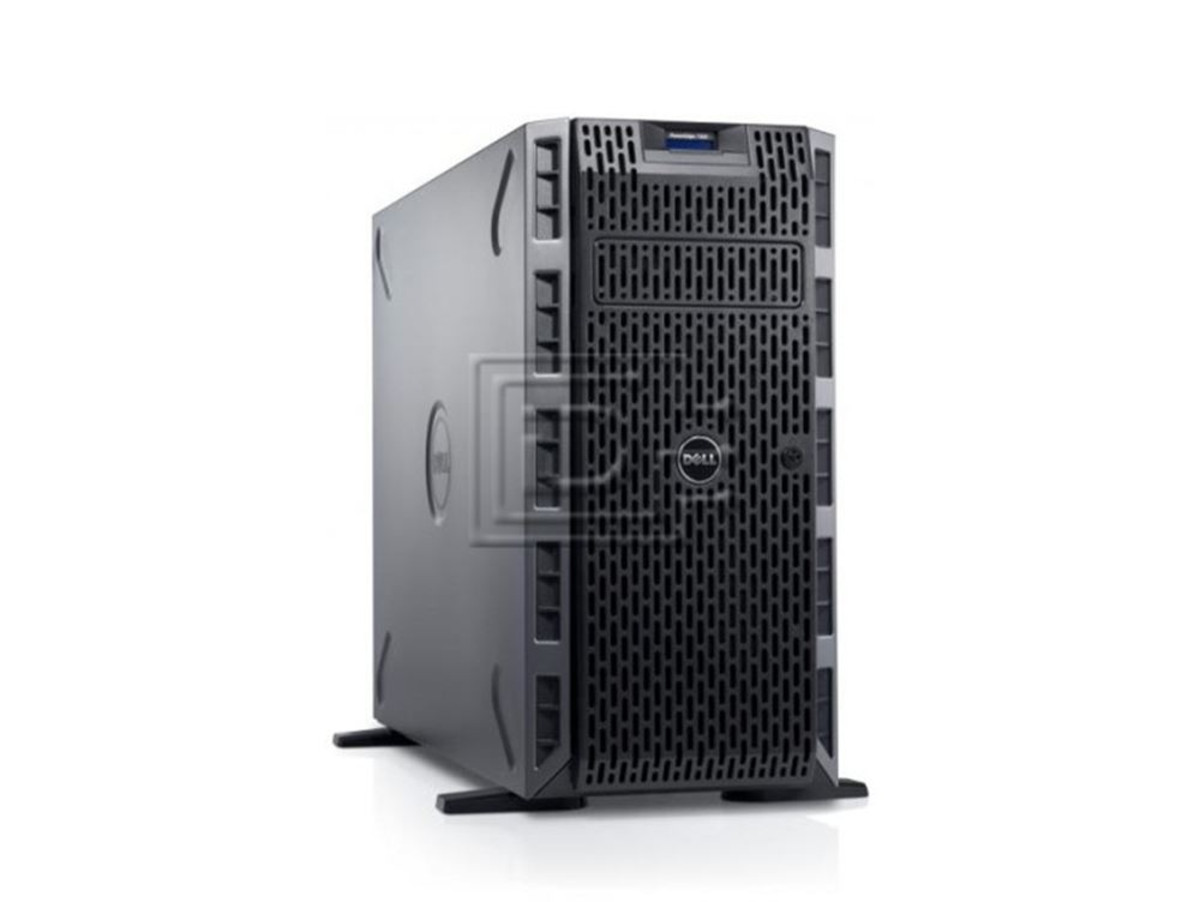

Dell PowerEdge T320

The Dellā„¢ PowerEdgeā„¢ T320 features performance and reliability in a quiet, 1-socket tower server.

Designed for a broad range of workloads and applications, the Dell PowerEdge T320 delivers performance, reliability and value in its 1-socket tower form factor. The PowerEdge T320 is an excellent fit for a wide range of general-purpose applications, such as file and print, email and messaging, productivity applications, data coordination and sharing. The T320’s feature set also fits the requirements of departments and workgroups of large enterprises and organizations. The robust design and simplified manageability make it a trustworthy server for small and medium businesses, and for branch offices and remote sites that might not have technical IT skills onsite.

Powerful and quietly confident

Boasting up to six DIMM slots of memory, five PCIe slots for broad I/O bandwidth, and driven by the extensive performance of the IntelĀ® XeonĀ® E5-2400 processors, the T320 delivers balanced performance and built-in room for growth. Capacity for up to eight 3.5-inch or sixteen 2.5-inch hard drives accommodate storage as your business or organization expands.
To protect your virtualized workloads, the T320 offers redundant dual SD media cards making your hypervisors failsafe. Other reliability and availability features that give you peace of mind include hot-plug hard drives, both hardware and software RAID options, redundant fans and hot-plug power supplies. Last, but not least, the T320’s quiet acoustical profile allows it to fit unobtrusively into quiet office environments.

The PowerEdge server line

The PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for businesses and organizations of all sizes.
The Dell OpenManageā„¢ systems management portfolio includes Dell Remote Access Controller (iDRAC) with Lifecycle Controller.
This embedded feature helps IT administrators manage Dell servers in physical, virtual, local and remote environments, operating in-band or out-of-band, with or without a systems management software agent. OpenManage integrates and connects to third-party systems management solutions so you can maintain your single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring, and maintaining your Dell PowerEdge servers.

  • Enterprise computing with Intel Xeon processors E5-2400
  • Up to sixteen 2.5-inch or eight 3.5-inch drive capacity
  • Up to six DIMMs with RAS
  • PCIe 3.0-enabled expansion slots
  • Optional internal GPU accelerators

Server Inclusions

  • Intel Xeon E5-2420 1.90GHzĀ Quad Core CPU
  • 8 x 3.5ā€ Drive Bays (Drives and caddys not included)
  • Perc H310 SAS/SATA Hardware RAID Controller
  • 4GB RAM
  • DVD
  • 1 x 495W Hot Swap Power Supply Unit* (supports up 2 hot swap power supplies.)

Compatibility:

The Dell PowerEdge T320 server is compatible with the following operating systems …

  • Microsoft Windows ServerĀ® 2016
  • Microsoft Windows ServerĀ® 2012
  • Microsoft Windows Server 2012 Essentials
  • Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-VĀ® v2)
  • Microsoft WindowsĀ® Small Business Server 2011
  • NovellĀ® SUSEĀ® Linux Enterprise Server
  • Red HatĀ® Enterprise LinuxĀ®

Optional embedded hypervisors:

  • CitrixĀ® XenServerĀ®
  • VMwareĀ® vSphereĀ® ESXā„¢ and ESXiā„¢
  • Red Hat Enterprise VirtualizationĀ®
Category:
PowerEdge T320 general technical specifications & options
Form factor Tower (5U rackable w/ optional Tower to Rack Kit & Rails)
Processors IntelĀ® XeonĀ® processor E5-2400 product family
Intel Xeon processor E5-2420
Intel PentiumĀ® processor 1400 product family
Processor sockets 1
Internal interconnect Intel DMI 2.0
Cache 2.5MB per core; core options: 2, 4, 6, 8
Chipset Intel C600 serie
Memory Up to 192GB (6 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
I/O slots 5 PCIe slots:

  • One x16 slot with x16 bandwidth, 3.0, full-length, full-height
  • One x8 slot with x4 bandwidth, 3.0, half-length, full-height
  • One x8 slot with x4 bandwidth, 2.0, half-length, full-height
  • One x8 slot with x4 bandwidth, 3.0, full-length, full-height
  • One x8 slot with x1 bandwidth, 2.0, full-length, full-height
GPU options One NVIDIAĀ® QuadroĀ® 6000 or 4000 graphics card
RAID controller Internal controllers:

  • PERC S110 (SW RAID)
  • PERC H310 (installed)
  • PERC H710
  • PERC H710P

Internal HBAs (non-RAID):

  • Internal tape adapter

External HBAs (RAID):

  • PERC H810

External HBAs (non-RAID):

  • 6Gbps SAS HBA
Drive bays Choose from four 3.5ā€ cabled, eight 3.5ā€ hot-plug, or sixteen 2.5ā€ hot-plug drive bays
Maximum internal storage Up to 32TB
Hard drives Hot-plug hard drive options:

  • 2.5ā€ SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD
  • 3.5ā€ SATA, nearline SAS, SAS (15K)

Cabled hard drive options:

  • 3.5ā€ SATA, nearline SAS, SAS (15K)
Embedded NIC BroadcomĀ® 5720 Dual Port 1Gb LOM
I/O adapter options 1Gb Ethernet:

  • Broadcom 5720 Dual Port 1Gb NIC
  • Broadcom 5719 Quad Port 1Gb NIC
  • Intel I350 Dual Port 1Gb stand-up adapter
  • Intel I350 Quad Port 1Gb stand-up adapter

FC4 HBA:

  • QLogic QLE2460 4Gb Single Port FC HBA
  • QLogic QLE2462 4Gb Dual Port FC HBA
Power supply Platinum efficiency, hot-plug, redundant 495W or 750W power supply
Silver efficiency, cabled 350W power supply
Auto-ranging power supplies
Remote management Basic management (default)
iDRAC7 with Lifecycle Controller
iDRAC7 Express (upgrade option) or iDRAC7 Enterprise (upgrade option)
8GB or 16GB vFlash media (upgrade options)
Systems management IPMI 2.0 compliant
OpenManageā„¢ Essentials and Dell Management Console
OpenManage Power Center
Dell OpenManage Connections:

  • OpenManage Integration Suite for MicrosoftĀ® System Center
  • Dell plug-in for VMwareĀ® vCenterĀ®
  • HP Operations Manager, IBM TivoliĀ® NetcoolĀ®, and CA Network and Systems Management (NSM)
Rack support ReadyRailsā„¢ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
