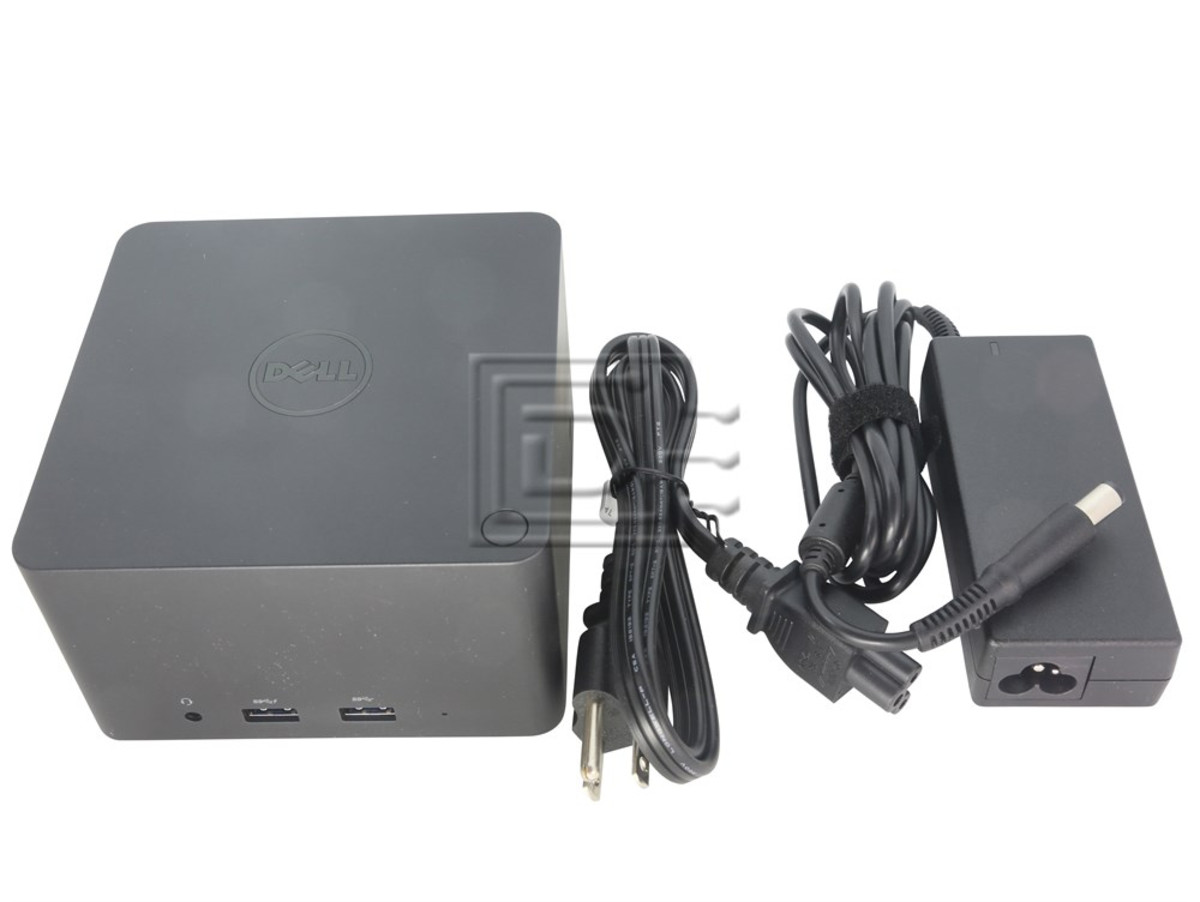

Dell WLD15 7DCTG / 61GRY E/Port Plus Wireless Docking Station With USB 3.0

Dell WLD15 7DCTG / 61GRY E/Port Plus Wireless Docking Station with USB 3.0 (WiGig Capable)

DP/N – 61GRY, WLD15 ePort e/Port e-Port

The Dell Wireless Docking Station (WLD15: WiGig capable)

The Dell Wireless Dock (WLD15) is the second generation WiGig docking station for Dell. It is designed based on the Tri-band Intel 17265 802.11ad wireless local area network (WLAN) and Intel WiGig 1.1 specifications.

The WLD15 has the following features:

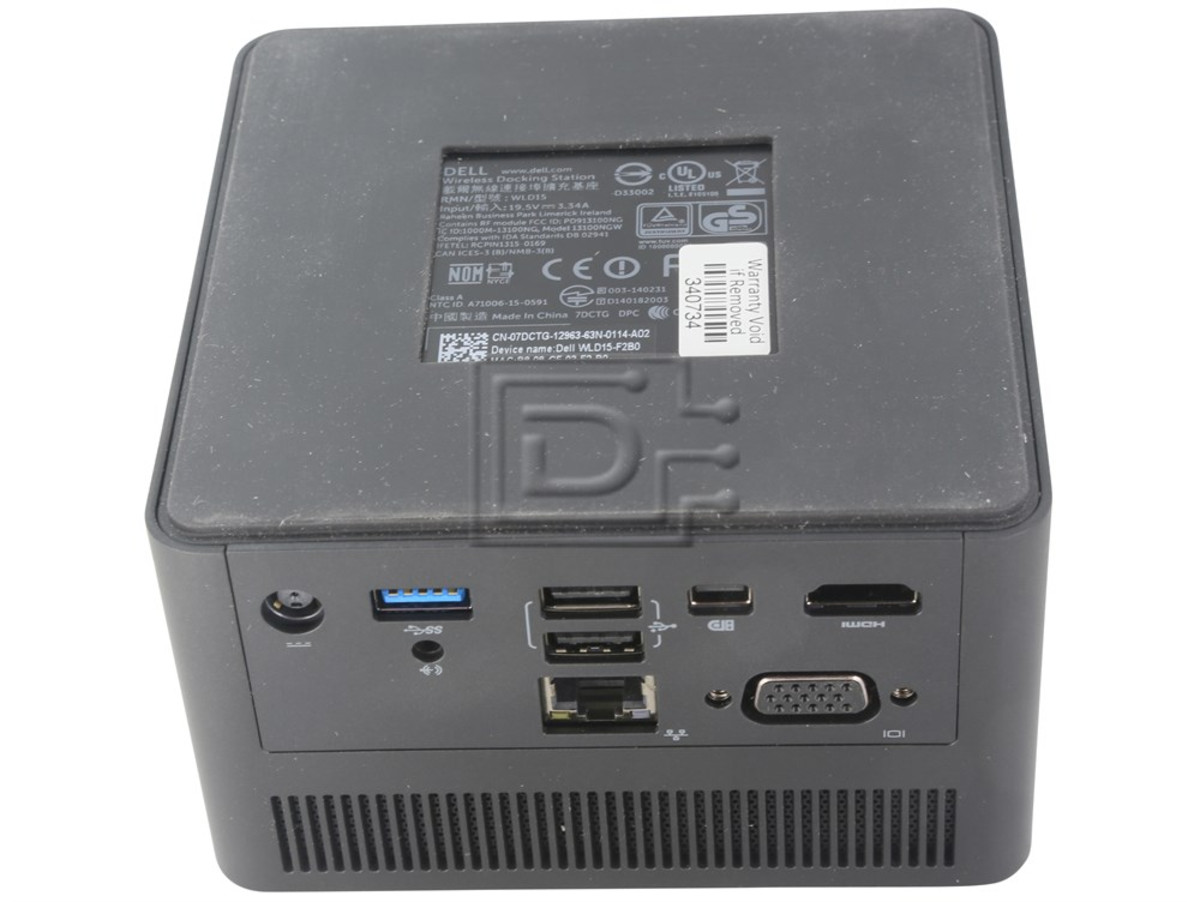

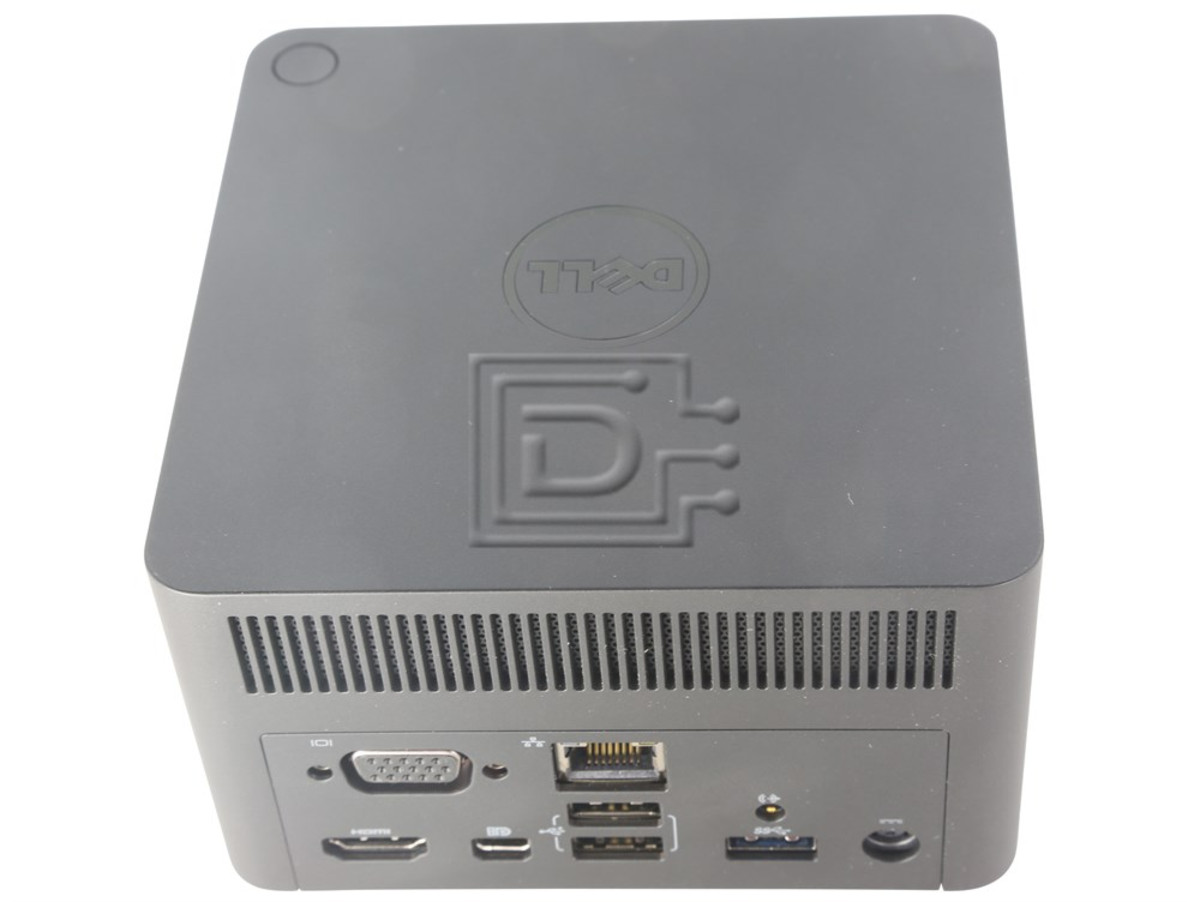

Video connections: 1 – mini-DisplayPort (DP1.2), 1 – HDMI (1.4) and 1 – Video Graphics Array (VGA)

I/O ports: 1 – Headset Connection, 1 – Speaker out

Network port: 1 – 10/100/1000 LAN Connection

USB: 2 – front USB 3.0 ports (one with Powershare), 1 – rear USB 3.0 port, 2 – rear USB 2.0 ports

Wireless status LED:

Search/Disconnected mode: Steady Amber

Connected mode: Steady White

Pairing: Amber blinking

Firmware upgrade: White blinking

Error: Alternating White and amber

Operating system support: Windows 7, 8, 8.1,& 10

System Requirements:

Computers equipped with an Intel WiGig antenna and Intel WiGig Module (Intel® Tri-Band Wireless-AC 17265 WiGig + WLAN + BT4.0LE Wireless Card) supporting WBE protocol

Compatible Systems.

Systems that are compatible with the WLD15 WiGig wireless dock meet the following minimum hardware/software requirements:

Equipped with an Intel WiGig antenna

Equipped with an Intel 17265 Tri-Band 802.11ad WLAN module

Microsoft Windows 7, 8, 8.1 or Windows 10 (Post release)

As of May 2015, WLD15 compatible systems include:

Latitude E7250

Latitude E7450

Latitude E5450

Latitude E5550

Latitude E5250
