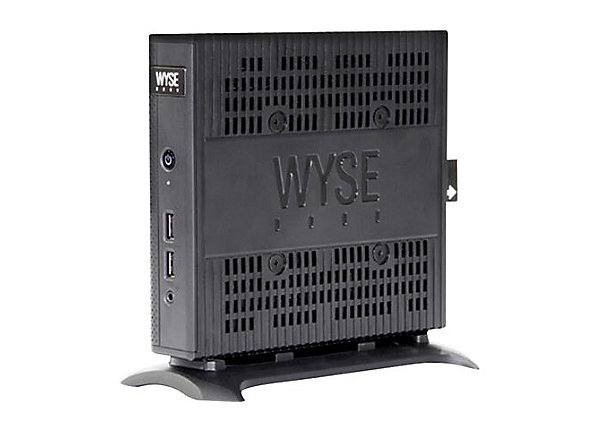

The Wyse 5490-D90Q8 Thin Client is a reliable and secure computing device designed for varied computing environments. With a sleek and compact form factor, this device saves space in workplaces, while boasting utilities akin to those of a computer. It packs in a powerful 1.5 GHz quad-core AMD G-Series SoC processor and 1600 MHz 2 GB DDR3 SDRAM for fast performance and smooth multitasking. The integrated AMD Radeon HD 8330E along with Display Data Control (DDC) for automatic setting of resolution and refresh rate renders enhanced visuals. Equipped with 16 GB flash drive, you can store important data conveniently on this device. Connect other peripherals to the device through a host of connectivity options including four USB 2.0 ports, two USB 3.0 ports and one LAN, display and VGA interfaces. It runs on the Windows Embedded Standard 8 operating system, which offers a user-friendly and intuitive interface.
- 1.5 GHz quad-core AMD G-Series processor for fast and smooth execution of operations
- Windows Embedded Standard 8 OS to work on a variety of applications simultaneously
- 16 GB flash drive to save files on the device
- 2 GB RAM offers seamless performance
| Processor |
| |
|
|
|
| |
|
| |
Clock Speed: |
|
1.5 GHz |
| |
|
| |
Installed Qty: |
|
1 |
| |
|
| |
Manufacturer: |
|
AMD |
| |
|
| |
Max Supported Qty: |
|
1 |
| |
|
| |
Number of Cores: |
|
Quad-Core |
| |
|
| |
Type: |
|
G-Series |
| |
|
| |
|
|
|
| |
RAM |
| |
|
|
|
| |
|
| |
Installed Size: |
|
2 GB |
| |
|
| |
Technology: |
|
DDR3 SDRAM |
| |
|
| |
|
|
|
| |
OS Provided |
| |
|
|
|
| |
|
| |
Edition: |
|
Windows Embedded Standard |
| |
|
| |
Family: |
|
Windows CE / Embedded |
| |
|
| |
Type: |
|
Windows Embedded 8 Standard |
| |
|
| |
|
|
|
| |
Storage Hard Drive |
| |
|
|
|
| |
|
| |
Capacity: |
|
16 GB |
| |
|
| |
|
|
|
| |
Service |
| |
|
|
|
| |
|
| |
Support Details Full Contract Period: |
|
3 years |
| |
|
| |
Support Details Type: |
|
Limited warranty |
| |
|
| |
|
|
|
| |
Audio Output |
| |
|
|
|
| |
|
| |
Form Factor: |
|
Integrated |
| |
|
| |
Sound Output Mode: |
|
Stereo |
| |
|
| |
|
|
|
| |
Cabinet |
| |
|
|
|
| |
|
| |
Chassis Built-in Devices: |
|
Speaker |
| |
|
| |
|
|
|
| |
Cable |
| |
|
|
|
| |
|
| |
Connectivity Details Type: |
|
DVI-VGA adapter |
| |
|
| |
|
|
|
| |
Dimensions & Weight |
| |
|
|
|
| |
|
| |
Depth: |
|
7.3 in |
| |
|
| |
Height: |
|
6.7 in |
| |
|
| |
Weight: |
|
32.8 oz |
| |
|
| |
Width: |
|
1.6 in |
| |
|
| |
|
|
|
| |
Display |
| |
|
|
|
| |
|
| |
Type: |
|
None. |
| |
|
| |
|
|
|
| |
Environmental Parameters |
| |
|
|
|
| |
|
| |
Humidity Range Operating: |
|
20 – 80% |
| |
|
| |
Max Operating Temperature: |
|
104 °F |
| |
|
| |
Min Operating Temperature: |
|
50 °F |
| |
|
| |
|
|
|
| |
Header |
| |
|
|
|
| |
|
| |
Brand: |
|
Dell Wyse |
| |
|
| |
Compatibility: |
|
PC |
| |
|
| |
Manufacturer: |
|
WYSE Technology |
| |
|
| |
Model: |
|
D90Q8 Thin Client |
| |
|
| |
Packaged Quantity: |
|
1 |
| |
|
| |
Product Line: |
|
Dell Wyse |
| |
|
| |
|
|
|
| |
Input Device |
| |
|
|
|
| |
|
| |
Type: |
|
Keyboard , Mouse |
| |
|
| |
|
|
|
| |
Interface Provided |
| |
|
|
|
| |
|
| |
Qty: |
|
1 |
| |
|
| |
Type: |
|
DVI-I |
| |
|
| |
|
|
|
| |
|
| |
Location: |
|
2 front, 2 rear |
| |
|
| |
Qty: |
|
4 |
| |
|
| |
Type: |
|
USB 2.0 |
| |
|
| |
|
|
|
| |
|
| |
Type: |
|
LAN (Gigabit Ethernet) |
| |
|
| |
|
|
|
| |
|
| |
Type: |
|
Headphones |
| |
|
| |
|
|
|
| |
|
| |
Location: |
|
With adapter |
| |
|
| |
Type: |
|
VGA |
| |
|
| |
|
|
|
| |
|
| |
Type: |
|
DisplayPort |
| |
|
| |
|
|
|
| |
|
| |
Qty: |
|
2 |
| |
|
| |
Type: |
|
USB 3.0 |
| |
|
| |
|
|
|
| |
Miscellaneous |
| |
|
|
|
| |
|
| |
Color Category: |
|
Black |
| |
|
| |
Compliant Standards: |
|
C-Tick , EN 60950 , FCC Class B certified , ISO 9241-3 , ISO 9241-8 , RoHS , TUV GS , UL 60950 , VCCI , WEEE |
| |
|
| |
Features: |
|
Security lock slot (cable lock sold separately) |
| |
|
| |
Included Accessories: |
|
Vertical stand |
| |
|
| |
|
|
|
| |
Networking |
| |
|
|
|
| |
|
| |
Compliant Standards: |
|
IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n |
| |
|
| |
Data Link Protocol: |
|
Ethernet , Fast Ethernet , Gigabit Ethernet , IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n |
| |
|
| |
Form Factor: |
|
Integrated |
| |
|
| |
Wireless Protocol: |
|
802.11a/b/g/n |
| |
|
| |
|
|
|
| |
Optical Storage |
| |
|
|
|
| |
|
| |
Drive Type: |
|
No optical drive |
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
Optical Storage (2nd) |
| |
|
|
|
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
Power Device |
| |
|
|
|
| |
|
| |
Frequency Required: |
|
50/60 Hz |
| |
|
| |
Nominal Voltage: |
|
AC 120/230 V |
| |
|
| |
Power Provided: |
|
65 Watt |
| |
|
| |
Type: |
|
Power adapter |
| |
|
| |
|
|
|
| |
Printer |
| |
|
|
|
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
Storage Controller (2nd) |
| |
|
|
|
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
Storage Removable |
| |
|
|
|
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
System |
| |
|
|
|
| |
|
| |
Hard Drive Capacity: |
|
16 GB |
| |
|
| |
Type: |
|
Thin client |
| |
|
| |
|
|
|
| |
Video Output |
| |
|
|
|
| |
|
| |
Form Factor: |
|
Integrated |
| |
|
| |
Graphics Processor Series: |
|
ATI Radeon HD |
| |
|
| |
Graphics Processor Vendor: |
|
AMD Radeon HD 8330E |
| |
|
| |
Video Interfaces: |
|
DisplayPort , DVI , VGA |
| |
|
| |
|
|
|
| |
Service & Support |
| |
|
|
|
| |
|
| |
Type: |
|
3 years warranty |
| |
|
| |
|
|
|
| |
Chassis |
| |
|
|
|
| |
|
| |
Form Factor: |
|
Desktop slimline |
| |
|
| |
Manufacturer Form Factor: |
|
Desktop slimline |
| |
|
| |
|
|
|
| |
Environmental Standards |
| |
|
|
|
| |
|
| |
ENERGY STAR Qualified: |
|
Yes |
| |
|
| |
|
|
|
| |
Hard Drive |
| |
|
|
|
| |
|
| |
Type: |
|
Flash |
| |
|
| |
|
|
|
| |
Hard Drive (2nd) |
| |
|
|
|
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
Hard Drive (3rd) |
| |
|
|
|
| |
|
| |
Type: |
|
None |
| |
|
| |
|
|
|
| |
Keyboard |
| |
|
|
|
| |
|
| |
Features: |
|
Built-in PS/2 port |
| |
|
| |
Interface: |
|
USB |
| |
|
| |
|
|
|
| |
Mouse |
| |
|
|
|
| |
|
| |
Interface: |
|
PS/2 |
| |
|
| |
Technology: |
|
Optical |
