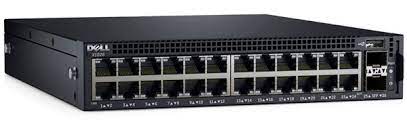

Dell X1026P Networking X-Series Smart Managed 24 Port Switch with 2 SFP ports – Brand New
- Delivers full wire-speed switching across all ports and web-managed features
- Dell-designed switch ships as an unmanaged switch, but can be easily set up as a web-managed switch with the push of a button
- Dell Networking X1026 Smart Web Managed Switch, 24x 1GbE and 2x 1GbE SFP ports
Dell p/n: 062MWJ 62MWJ
Specs:
Dimensions: Ā 1.62 in x 8.23 in x 9.84 in (41.25 mm x 209.0 mm x 250.0 mm)
Weight: Ā 1.88Kg
Fanless design
40W Power Supply
Forward Rate: Ā 38.7Mbps
Capacity up to 52Gbps
4 Priority queues per port
2 SFP ports
24 10/100/1000 Base-T auto Sensing Gigabit Switching ports
Port attributes:
Supports Virtual Cable Diagnostics by Marvell⢠and fiber transceiver diagnostics to provide advanced troubleshooting capabilities for your cable infrastructure
Integrated LEDs for improved visual monitoring and analysis
Performance:
MAC addresses: 16K
Packet buffer memory: 1 Mb
VLAN:
Supports up to 4096 port-based VLANs. Honors all 4096 VLAN tags.
Quality of service:
Honor 802.1p values and honor IP DSCP values
Supports strict priority and configurable weighted round robin (WRR) scheduling across queues
Link aggregation:
Industry-standard link aggregation adhering to IEEE 802.3ad standards (static and dynamic, LACP)
Supports 12 link aggregation groups and up to 4 ports per group
Management:
Local password and restricted IP addresses for secure access to the switch Port mirroring provides the capability of mirroring 8 source ports and VLAN mirroring to improve network traffic monitoring and troubleshooting.
Internal DHCP Server
DHCP client support allows for simplified IP address assignment when used with a DHCP server
Switch software can be easily uploaded to the switch through the web-management interface
Configurations can be easily uploaded to and from the switch through the intuitive web-management interface
Port statistics available through industry-standard RMON
Switch is factory-configured as an unmanaged switch, but can be easily configured as a web-managed switch with the push of a button
Jumbo frame support for packets up to 9,000 bytes
Broadcast storm control to help eliminate network traffic storms
Environmental operating conditions:
100% Lead-free
Operating temperature: 32° to 113°F (0° to 45°C)
Storage temperature: -20Āŗ C to 70Āŗ C (-4Āŗ F to 158Āŗ F)
Operating relative humidity: 10% to 90% noncondensing
Standards and additional features supported:
IEEE 802.3ac ā VLAN tagging
IEEE 802.3ad ā Link aggregation with static LAG support
IEEE 802.1W ā Rapid Spanning Tree (1)
IEEE 802.1D ā Spanning Tree (1)
IEEE 802.1Q ā Port-based VLANs
IEEE 802.1v ā Protocol-based VLANs
IEEE 802.1p ā Ethernet priority with user provisioning and mapping
IEEE 802.1X ā Port authentication
IEEE 802.3x ā Flow control
RFC 826 ā ARP
RFC 854 ā Telnet
RFC 855 ā Telnet option
RFC 1155 ā SMIv1
RFC 1157 ā SNMP
RFC 1213 ā MIB II ā Updated by RFCās 2011, 2012 and 2013
RFC 2579 ā Textual conventions for SMI v2
RFC 2580 ā Conformance statements for SMI v2
RFC 2819 ā RMON
RFC 3164 ā BSD Syslog Protocol
RFC 3416 ā Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) (December 2002)
RFC 768 ā UDP
RFC 783 ā TFTP
RFC 791 ā IP
RFC 792 ā ICMP
RFC 793 ā TCP
RFC 951 ā BOOTP
RFC 1533 ā Including 1534, Interoperation between BOOTP and DHCP
DHCP server
RFC 2131 ā Dynamic Host Configuration Protocol
RFC 2132 ā DHCP options and BOOTP vendor extensions
RFC 950 ā Internet Standard Subnetting Procedure
RFC 1123 ā Requirements for internet hosts
RFC 1042 ā A standards for transmission of IP datagrams over IEEE 802 networks
RFC 1071 ā Computing the internet checksum
IGMPv2 snooping
MLD snooping
GARP
GMP snooping
Jumbo frames
IPv6 support
IPv4 and IPv6 Static routing
USB support for update of firmware/configuration
Auto-update of firmware and configuration, from TFTP server/USB
Console port
Authentication via TACACS+ server
Port security
Dynamic ARP Inspection
DHCP Snooping
SHCP Relay
ACL
Voice VLAN
Unidirectional Link Detection (UDLD)
Multiple Spanning Tree (MSTP)
LLDP and LLDP-MED
sFlow V5
Port Profile (built-in scripts)
ROHS Compliant
Alternate MPNs:Ā 062MWJ 62MWJ
Weight:Ā 22Ā lb
