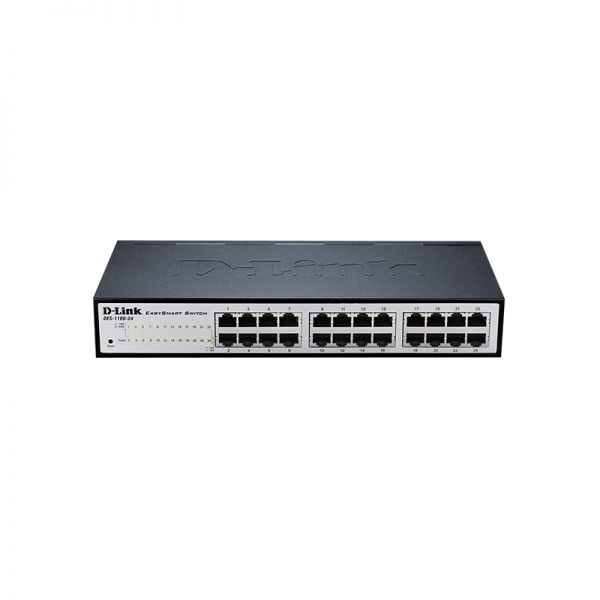

DES-1100-24 – D-Link Intelligent Network Management Switches

Add to Wishlist
Model: DES-1100-24 – D-Link Intelligent Network Management Switches
Detail:
D-Link 24 100M electrical ports; Smart switch, desktop type can be installed on the rack, support Web management

AED399.00

Add to Wishlist

· Allows for noiseless operation
· Best-in-class power savings technology
· Reliable and eco-friendly
· Storm control
· Advanced QoS
· Easy troubleshooting
· Smart and flexible management

SKU: DES-1100-24 Category: Tags: , ,

DES-1100-24 Specification
Port-based Bandwidtd Control Yes
Two Rate tdree Color Marker (trTCM) Yes
Class of Service (CoS) Yes
Head-of-line (HOL) Blocking Prevention Yes
Store & Forwarding Forwading Yes
Comply witd RoHS 6 Yes
100Base-TX Interface 24
Auto MDI/MDIX Yes
10/100BASE-TX ports 24
CPU Speed 50Mhz
DRAM Size 8MB
Flash Memory Size 1MBytes
Packet Buffer Size 1.75Mbits
FAN Fanless
Loopback Detection (LBD) Yes
MAC Address Table Size 8K
IGMP Snooping Yes
Max IGMP Snooping Groups 32
802.1AX Link Aggregation Yes
802.3ad Link Aggregation Yes
Max Port Per Link Aggregation Group 4
Web-based GUI Yes
Port Mirroring Yes
Switch Capacity 4.8 Gbps
Max. Packet Forwarding Rate 3.57 Mpps
Power Input AC: 100-240V
Number of Queue 2
Strict Priority Queue (SPQ) Yes
Queue Handling Yes
Broadcast/Multicast/Unicast Storm Control Yes
802.1Q VLAN Yes
Auto Surveillance VLAN Yes (Surveillance VLAN)
VLAN Groups 32
Port-based VLAN Yes
Dimension 280 mm x 125 mm x 44mm
Operation Temperature 0-40°C
Storage Temperature -10-70°C
Operation Humidity 10%-95% RH
Storage Humidity 5% ~ 95% RH
Operating Altitude 2000m
Maximum Power Consumption 7.68 W
Standby Power Consumption 2.87Watts
Maximum Heat Dissipation 26.20 BTU/h
Acoustic 0 dBs
MTBF 562,066 hours
