Network Switches & Routers

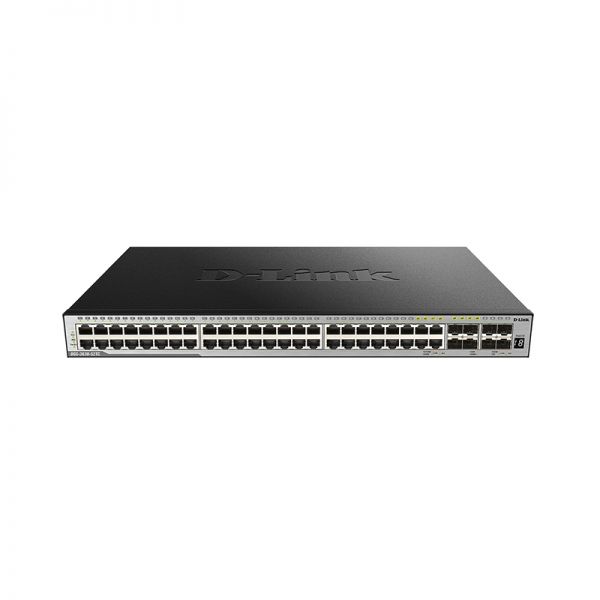

DGS-3630-52TC – D-Link Core Switches
| Model: | DGS-3630-52TC – D-Link Core Switches |
| Detail: |
D-Link 44 Gigabit electrical ports + 4 Gigabit optical multiplexing ports + 4 Gigabit SFP+ ports, switching capacity:
|
AED10,799.00
Ā· 44 x 10/100/1000BASE-T ports
Ā· 4 x Combo 10/100/1000BASE-T/SFP ports
Ā· 4 x 10G SFP+ ports
Ā· 6 kV surge protection on all RJ-45 access ports
Ā· Switch Resource Management (SRM) for ļ¬exible management of system resources
Ā· Redundant Power Supply (RPS) support
Ā· MPLS L2VPM/L3 VPN support
Ā· Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
Ā· SDN-enabled switch, compatible with Openflow 1.3
DGS-3630-52TC Specification |
|
| 10/100/1000BASE-T ports | 44 |
| Combo 10/100/1000BASE-T/SFP ports | 4 |
| 10G SFP+ ports | 4 |
| RJ-45 and Mini-USB port | 1 |
| RJ-45 Management Port | 1 |
| RJ-45 Alarm port | 1 |
| USB 2.0 port | 1 |
| Switch Capacity | 176 Gbps |
| Max. Packet Forwarding Rate | 130.95 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 441mm x 259.8mm x 44mm |
| Operation Temperature | -5-50Ā°C |
| Storage Temperature | -40-70Ā°C |
| Operation Humidity | 10%-95% RH |
| Storage Humidity | 5% ~ 95% RH |
| Operating Altitude | Up to 2000 M |
| Maximum Power Consumption | 62 W |
| Standby Power Consumption | 36 Watt |
| Maximum Heat Dissipation | 212 BTU/h |
| MTBF | 263,936.78 hours |
| Power Input | AC Input: 100 ā 240 VAC, 50-60 Hz |
| Redundant Power Supply | Yes |
| CPU Speed | 1GHz |
| DRAM Size | 1GB (Byte)āDDR3 |
| Flash Memory Size | 1GB (Byte) |
| Packet Buffer Size | 4MB |
| FAN | Yes |
| Comply with RoHS 6 | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By System Hibernation | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Physical Stacking | Yes |
| Physical Stacking Bandwidth | 80 G (support stacking trunk) |
| Units Per Physical Stack | 9 |
| Units Per SIM Stack | 32 |
| D-Link Single IP Management (SIM) | Yes |
| MAC Address Table Size | up to 68K (SRM’s LAN mode) |
| Black Hole MAC Address | Yes |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| BPDU Filtering | Yes |
| Root Guard | Yes |
| Loop Guard | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1s Multiple Spanning Tree (MSTP) | Yes |
| Multiple ERPS Ring | Yes |
| G.8032 ERPS | Yes (Support ERPSv2) |
| Link Aggregation Group Per Device | 32 |
| Max Port Per Link Aggregation Group | 8 |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Port Mirroring | Yes |
| VLAN Mirroring | Yes |
| RSPAN | Yes |
| Flow-based (ACL) mirroring | Yes |
| Jumbo Frame | 12K Bytes |
| L2 Protocol Tunneling | Yes |
| Flex Link | Yes |
| iSCSI Awareness | Yes |
| Loopback Detection (LBD) | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | up to 8K (refer to SRM) |
| IGMP Snooping Fast Leave | Yes |
| IGMP Proxy Reporting | Yes |
| IGMP Authentication | Yes |
| IGMP Accounting | Yes |
| MLD Snooping | Yes |
| MLD Snooping Groups | up to 4K (refer to SRM) |
| MLD Snooping Fast Leave | Yes |
| MLD Proxy Reporting | Yes |
| PIM Snooping | Yes |
| VLAN Groups | 4,096 |
| Port-based VLAN | Yes |
| MAC-based VLAN | Yes |
| Subnet-based VLAN | Yes |
| Voice VLAN | Yes |
| Auto Surveillance VLAN | Yes (v1.4) |
| GVRP | Yes |
| Selective Q in Q | Yes |
| VLAN Translation | Yes |
| Asymmetric VLAN | Yes |
| Private VLAN | Yes |
| Super VLAN | Yes |
| VLAN trunking | Yes |
| 802.1Q VLAN | Yes |
| 802.1v Protocol-based VLAN | Yes |
| Double VLAN (Q in Q) | Yes |
| ISM VLAN (Multicast VLAN) | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | Yes |
| Loopback Interface | Yes |
| Null Interface | Yes |
| ARP | Yes |
| ARP Entries | up to 32K (SRM’s IP mode) |
| Gratuitous ARP | Yes |
| ND Entries | up to 16K (SRM’s IP mode) |
| UDP Helper | Yes |
| IPv6 Tunneling | Yes |
| IPv6 Neighbor Discovery (ND) | Yes |
| VRRP | Yes |
| Routing Table Entry | 16K (16,384) |
| L3 Forwarding Table Entry | up to 32K (SRM’ IP mode) |
| Default Route | Yes |
| Static Route | Yes |
| Null Route | Yes |
| Route Preference Setting | Yes |
| Route Redistribution | Yes |
| Equal-Cost Multi-Path Route (ECMP) | Yes |
| Weighted-Cost Multi-Path Route (WCMP) | Yes |
| Policy-based Route (PBR) | Yes |
| Graceful Restart (GR) Helper | Yes |
| Bidirectional Forwarding Detection (BFD) | Yes |
| RIPv1 | Yes |
| RIPv2 | Yes |
| RIPng | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| BGP4 | Yes |
| Announce on loopback interface | Yes |
| L3 IP Multicast Entry | up to 8K (refer to SRM) |
| IGMPv1 | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| IGMP Proxy | Yes |
| Limited IP Multicast (IGMP Filtering) | Yes |
| MLDv1 | Yes |
| MLDv2 | Yes |
| MLD Proxy | Yes |
| Limited IP Multicast (MLD Filtering) | Yes |
| DVMRPv3 | Yes |
| PIM-DM | Yes |
| PIM-DM v6 | Yes |
| PIM-SM | Yes |
| PIM-SM v6 | Yes |
| PIM-SSM | Yes |
| PIM Sparse-Dense Mode (PIM-SDM) | Yes |
| Multicast Source Discovery Protocol (MSDP) | Yes |
| VRF-Lite | Yes |
| Number of Queue | 8 |
| Class of Service (CoS) | Yes |
| Two Rate Three Color Marker (trTCM) | Yes |
| Single Rate Three Color Marker (srTCM) | Yes |
| Rate Limiting | Yes |
| Time based QoS | Yes (based on ACL) |
| Remark 802.1p priority | Yes |
| Remark ToS/DSCP | Yes (Support remark IP precedence/DSCP) |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Weighted Deficit Round Robin (WDRR) | Yes |
| SPQ + WRR | Yes |
| Weighted Random Early Detection (WRED) | Yes |
| 802.1Qbb Priority-based Flow Control (PFC) | Yes (only for 10G port) |
| Port-based Bandwidth Control | Yes |
| Flow-based bandwidth Control | Yes |
| Queue-based Bandwidth Control | Yes |
| MAC Access List | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| Time based ACL | Yes |
| CPU Interface Filtering | Yes |
| Max Access Control List (ACL) Entries | 3072 |
| SSH | Yes |
| SSL | Yes |
| Port Security | Yes |
| Traffic Segmentation | Yes |
| IP Source Guard | Yes |
| DHCP Snooping | Yes |
| IPv6 Snooping | Yes |
| DHCPv6 Guard | Yes |
| IPv6 ND Inspection | Yes |
| D-Link Safeguard Engine | Yes |
| L3 Control Packet Filtering | Yes |
| DHCP Server Screening | Yes |
| DHCP Client Filtering | Yes |
| ARP Spoofing Prevention | Yes |
| BPDU Attack Protection | Yes |
| DoS Attack Prevention | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| IP-MAC-Port Binding (IMPB) | Yes |
| Dynamic ARP Inspection (DAI) | Yes |
| IPv6 Route Advertisement (RA) Guard | Yes |
| Duplicate Address Detection (DAD) | Yes |
| NetBIOS/NetBEUI filtering | Yes |
| Port based WAC Authentication | Yes |
| Host based WAC Authentication | Yes |
| Identity Driven WAC Policy Assignment | Yes |
| Port based MAC Authentication | Yes |
| Host based MAC Authentication | Yes |
| Identity Driven MAC Policy Assignment | Yes |
| Compound Authentication | Yes |
| Guest VLAN | Yes |
| Authentication for Management Access | Yes |
| Privilege Level for Management Access | Yes |
| RADIUS | Yes |
| RADIUS Accounting | Yes |
| Authentication Database Failover | Yes |
| Trusted Host | Yes (via ACL) |
| 802.1X | Yes |
| Port based 802.1X Authentication | Yes |
| Host based 802.1X Authentication | Yes |
| Identity Driven 802.1X Policy Assignment | Yes |
| Web-based Access Control (WAC) | Yes |
| MAC-based Access Control (MAC) | Yes |
| MicrosoftĀ® NAP Support | Yes |
| TACACS+ | Yes |
| TACACS+ Accounting | Yes |
| Cable Diagnostics | Yes |
| Dying Gasp | Yes |
| 802.3ah Ethernet Link OAM | Yes |
| D-link Unidirectional Link Detection (DULD) | Yes |
| 802.1ag Connectivity Fault Management (CFM) | Yes |
| Y.1731 OAM | Yes |
| Optical Transceiver Digital Diagnostic Monitoring (DDM) | Yes |
| Network Time Protocol (NTP) | Yes |
| Precision Time Protocol (PTP) | Yes |
| Web-based GUI | Yes |
| Telnet Server | Yes |
| Telnet Client | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| TFTP Client | Yes |
| FTP Client | Yes |
| ZModem | Yes |
| System Log | Yes (RFC3164 only) |
