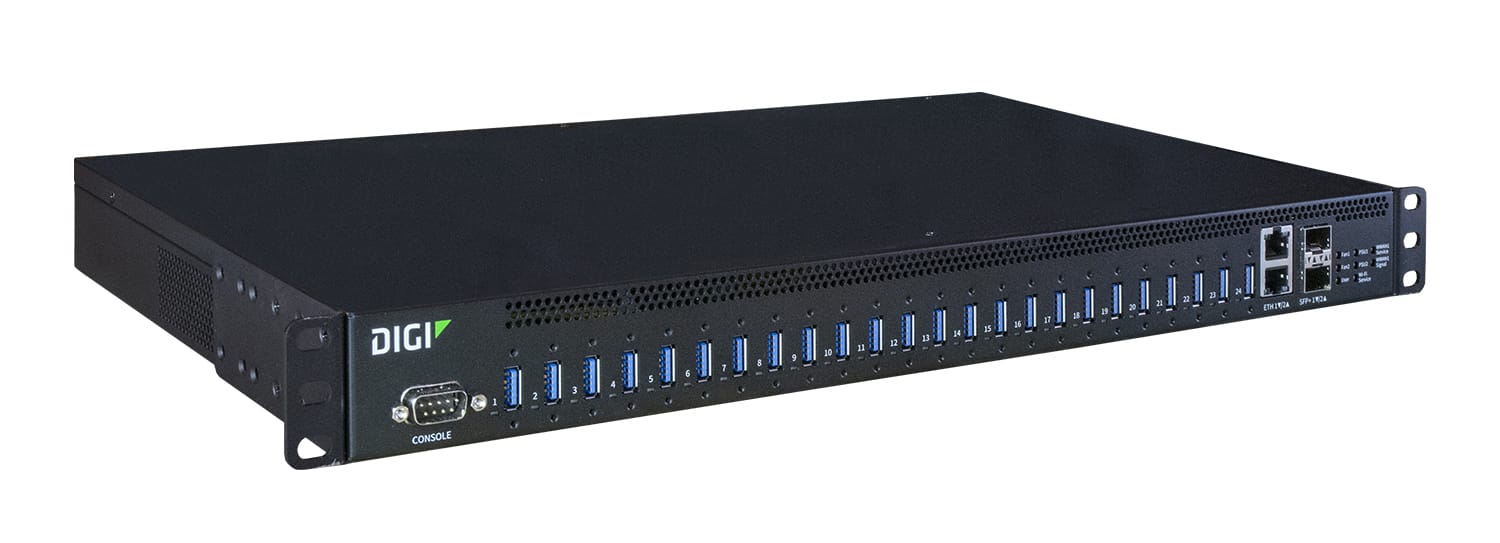

Digi AnywhereUSB 24 Plus — 24-port USB over IP remote USB 3.1 hub with dual 10 M/100 M/1 G/10 G Ethernet, dual SFP+ modules support, dual 100-240 VAC power and optional cellular Digi CORE module (DIGI AW24-G300)

Digi AnywhereUSB® 24 Plus

• Cellular:
  • Module support: (1) Digi CORE® plug-in LTE modem-compliant socket
• Wi-Fi:
  • ​Not included
• Software and management:
  • Remote management: Digi Remote Manager® (cloud-based)
  • Local management: Web UI (HTTP/HTTPS); CLI (Console, SSH)
  • Operating systems: Windows® 7, Windows 8.1, Windows 10; Windows Server® 2012 R2, Windows Server 2016, Windows Server 2019 and Linux
  • Protocols: Supports multi-host connectivity for each USB port or group independently
  • Memory: 2 GB RAM, 4 GB flash (eMMC)
• Network:
  • ​Ethernet: (2) RJ-45; 10 M / 100 M / 1 G / 10 G
  • SFP+: (2) SFP+ sockets
• Connectors:
  • Console: (1) DB09M; RS-232 DTE
  • USB: (24) USB 3.1 Gen 1 Type A
  • USB port power: 1 A per port (simultaneous)
• Physical:
  • ​Dimensions (L x W x H): 450.85 mm x 255 mm x 44.45 mm (17.75 in x 10 in x 1.75 in)
  • Weight: 4.7 kg (10.36 lb)
  • Status LEDs: 2x Ethernet, 2x SFP+, 24x USB, 2x PSU, 2x fan, user, 2x WWAN (if CORE module is inserted)
• Mounting accessory:
  • ​Rackmount extension kit for use in 19” 1U rack (included)
• Power requirements:
  • ​Power input: dual 100-240 VAC, 3 A max (dual supplies for redundancy)
  • Power consumption: 157.7 watts max
  • Power connector: IEC 60320 C14 (inlet)
• Environmental:
  • ​Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Relative humidity: 5% to 95% (non-condensing)
• Approvals:
  • ​Safety: UL 62368/60950, EN 62368, IEC 62368, CSA 22.2 62368-1
  • Emissions / Immunity: CE; FCC Part 15 Class B, AS/NZS CISPR 22, EN 55024, EN 55032
• Product warranty: 5-year
• Accessories: Rack mount extension kit included

What’s in the box

• Digi AnywhereUSB 24 Plus — 24-port USB over IP remote USB 3.1 hub with dual 10 M/100 M/1 G/10 G Ethernet, dual 100-240 VAC power, dual SFP+ modules support and optional cellular Digi CORE module
  • Rackmount extension kit
