Network Adapters

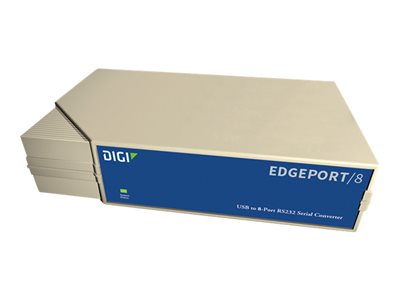

Digi Edgeport 8s – serial adapter – USB – RS-232/422/485 x 8
Digi Edgeport 8s – Serial adapter – USB – RS-232/422/485 x 8
AED3,899.00
Digi Edgeport USB-to-serial converters offer instant I/O expansion for peripheral device connectivity. An out-of-the-box (external) alternative to PCI cards, Edgeport makes it easy to add serial and USB ports to a PC, server or thin client in minutes – without opening the chassis, reconfiguring or rebooting the system. Feature-rich design, reliability and unmatched operating system support make Edgeport USB-to-serial converters ideal for mission-critical enterprise applications.
| Category | Details |
|---|
| General |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB |
| Networking |
| Ports | RS-232/422/485 x 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Data Transfer Rate | 230 Kbps |
| Features | Software flow control, hardware flow control, USB powered |
| Compliant Standards | USB 1.1, USB 2.0 |
| Expansion / Connectivity |
| Interfaces | 8 x RS-232/422/485 – 9 pin D-Sub (DB-9) |
| Miscellaneous |
| Cables Included | 1 x USB cable (external) – 3.3 ft |
| Compliant Standards | FCC Class B certified, EN 60950, EN55022, UL 1950, EN55024, CSA 22.2 No. 950, IEC 950 |
| Software / System Requirements |
| OS Required | Linux, Microsoft Windows XP Embedded, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2019 |
| Dimensions & Weight |
| Width | 7.2 in |
| Depth | 4.4 in |
| Height | 1.8 in |
| Weight | 16 oz |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 – 95% (non-condensing) |
There are no reviews yet.
