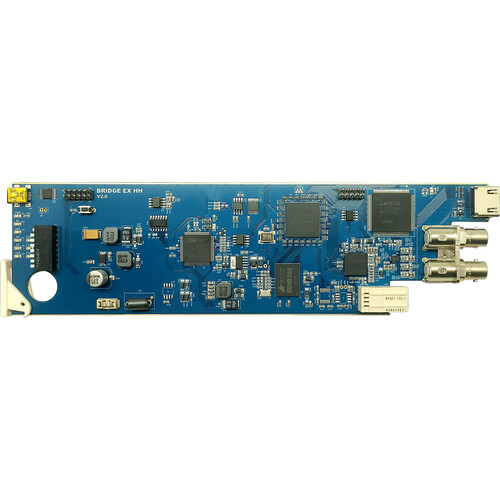

DIGITAL FORECAST Bridge EX HH HDMI TO HD/SD-SDI Converter Module

Add to Wishlist

AED2,499.00

Add to Wishlist

The DIGITAL FORECAST Bridge EX HH HDMI TO HD/SD-SDI Converter Module can be used for converting a HDMI signal into a standard SMPTE SDI signal. It can support formats up to 1080p60 and can export 2 SDI output signals from 1 HDMI input. The converter also allows you to set the output in a specific format. In addition, it also comes with a built-in scaler.

1 HDMI input
2 HD/SD SDI outputs
SCAN converter
Improved output jitter
Input state LED expression
Dipswitch configuration
SKU: BRIDGE EX HH Category: Tag:

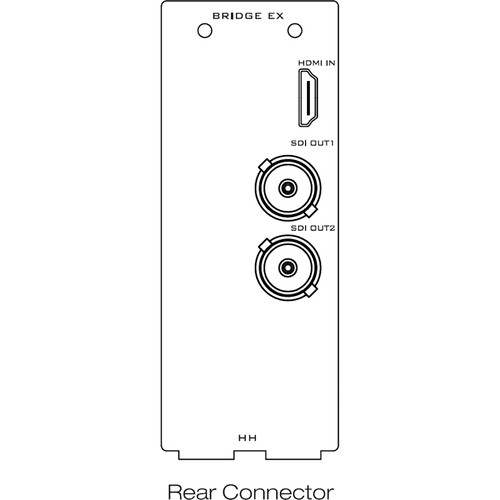

HDMI Input
Connector: 1 x HDMI
Formats: 525i/625i, 576p/480p, 720p (50/59/60), 1080i (50/59/60), 1080p (24/25/29/30/50/59/60)

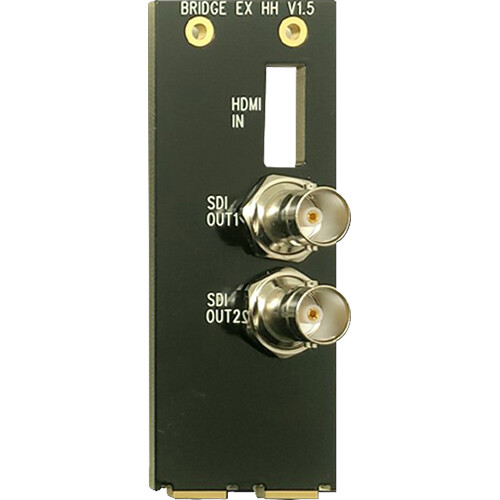

SDI Outputs
Connector: 75 Ohms BNC
No. of Connectors: 2
Formats: 1080i (50/59/60), 1080p (50/59/60)
Output Standards: SMPTE 125/274/296M/425M
Signal Level: 800 mV ± 10%
Return Loss: >15 dB to clock frequency
Electrical
Voltage: +12 VDC
Power Dissipation: <7 W
Temperature
32 to 104°F (0 to 40°C)
Physical
Mounting: Bridge EX frame mounting
No. of Slots: 2
Dimensions
Not specified by the manufacturer
Weight
Not specified by the manufacturer
