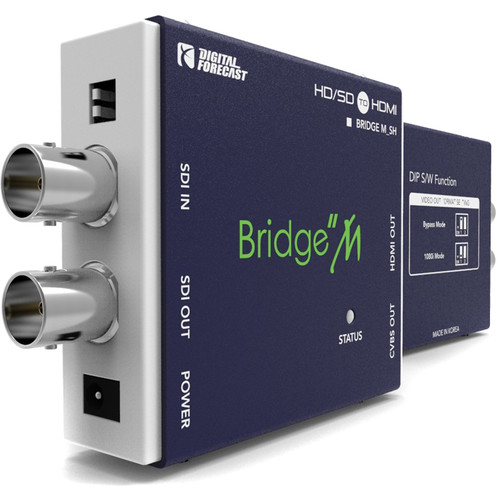

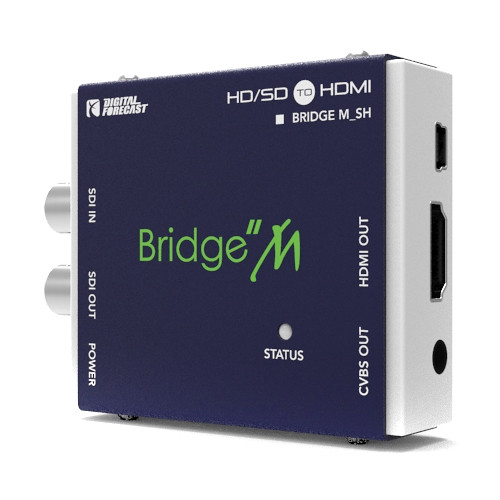

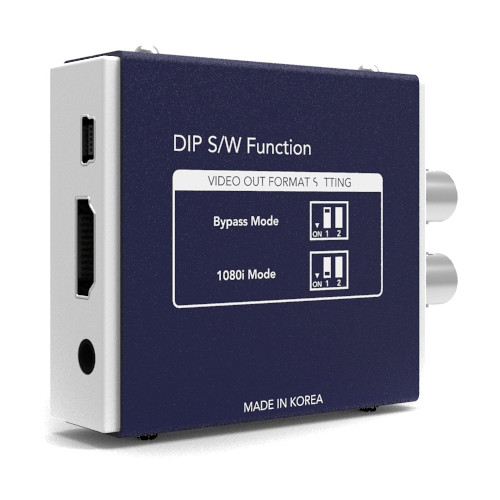

DIGITAL FORECAST Bridge M_SH Mini SDI to HDMI Converter

Add to Wishlist
Key Features
  • Scales and Converts SDI to HDMI
  • Supports up to 1080p Resolution
  • SDI Loop Output
  • Separate Composite Video Output

AED1,299.00

Add to Wishlist

Use the DIGITAL FORECAST Bridge M_SH Mini SDI to HDMI Converter for connecting an SD, HD, or 3G-SDI source to an HDMI-compatible device. With this converter, broadcast-grade SDI signals can be displayed on inexpensive consumer equipment, such as televisions and projectors. Built-in scaling hardware can convert the output resolution to best fit the application. A separate composite video output is available via 3.5mm output. An RCA adapter for the composite video output is included. The re-clocked SDI loop output transmits an untouched SDI signal for connecting to other SDI equipment. For professional equipment installations, 10 units can be mounted in a standard equipment rack using the separately available Bridge M_PLUS.

SKU: M_SH Category: Tag:
Inputs
1 x BNC, SD/HD/3G-SDI
1 x DC power
Outputs
1 x BNC, SD/HD/3G-SDI
1 x HDMI Type A
HDMI Format Support
v1.3
SDI Format Support
SMPTE-424M: 1080p 59.94/60
SMPTE-292M: 1080p 23.98/24/25/29.97/30
SMPTE-274M: 1080i 50/59/94/60
SMPTE-296M: 720p 50/59.94/60
SMPTE-125M: NTSC/PAL
Power Supply
12 VDC
Power Consumption
Nominal: 3 W
Maximum: 4 W
Environmental
Operating Temperature: -4 to 158°F / -20 to 70°C
Humidity: 0-95% RH, non-condensing
Dimensions
2.7 x 2.3 x 0.8″ / 68 x 59 x 20 mm
Weight
3.2 oz / 90 g
Packaging Info
Package Weight
0.85 lb
Box Dimensions (LxWxH)
4.7 x 3.9 x 3.4″
