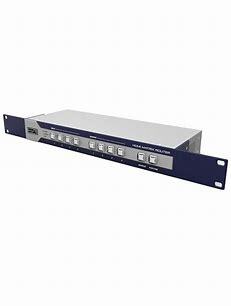

DIGITAL FORECAST Bridge RS HDMI 4×4 Matrix Switcher


  • 4 x HDMI Inputs, 4 x HDMI Outputs
  • Supports SD and HD Formats up to 60p
  • Rout Any Input to Any Output
  • Resolution Conversion via DIP Switches
  • Multiview Mode
  • Remote Control via Ethernet or RCP
  • Front-Panel Controls

AED4,799.00

With theĀ DIGITAL FORECAST Bridge RS HDMI 4×4 Matrix SwitcherĀ up to four HDMI sources can be sent to any combination of four HDMI outputs. Input resolutions can be converted to conform to the connected displays, and a multiview option is available as well. Conversion and multiview modes can be engaged using the built-in DIP switches. Dual RJ45 ports can be connected for either Ethernet or RCP remote control. Local control can be taken using the comprehensive front-panel buttons.

SKU: RS HDMI 4X4 Category: Tag:
Inputs
4 x HDMI type A, v1.3
Outputs
4 x HDMI type A, v1.3
Video Format Support
1080p 24/25/30/50/59.94/60
1080PsF 24
1080i 50/59.94/60
720p 24/25/30/50/59.94/60
576p
480p
NTSC
PAL
Other I/O
1 x RJ45, Ethernet
1 x RJ45, RCP
1 x USB Mini-B
Power Consumption
13 W
Operating Temperature
-4 to 158°F / -20 to 70°C
Humidity
0-95%, non-condensing
Dimensions
19 x 6.2 x 1.7″ / 48.3 x 15.7 x 4.4 cm
Weight
2.2 lb / 990 g
