DIGITAL FORECAST Bridge UHD X_SH 12G-SDI to HDMI 2.0 UHD Converter

Add to Wishlist
Key Features
  • Supports up to DCI 4K60 Video
  • 1 x 12G-SDI Input, 1 x Re-Clocked Output
  • 2 x HDMI 2.0 4:4:4 Outputs
  • For Broadcast In, Commercial Display Out
  • 7-16 VDC Power Input
  • LED Status Indicators

AED3,499.00

Add to Wishlist

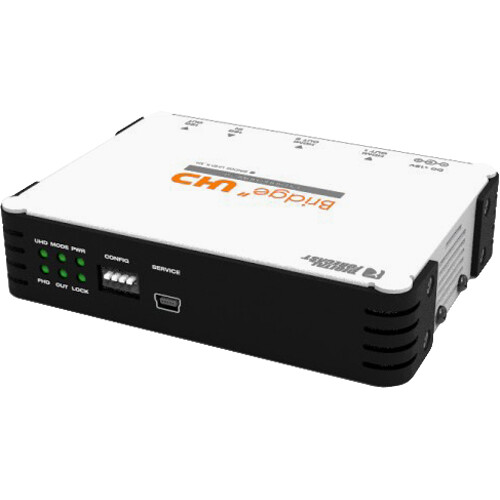

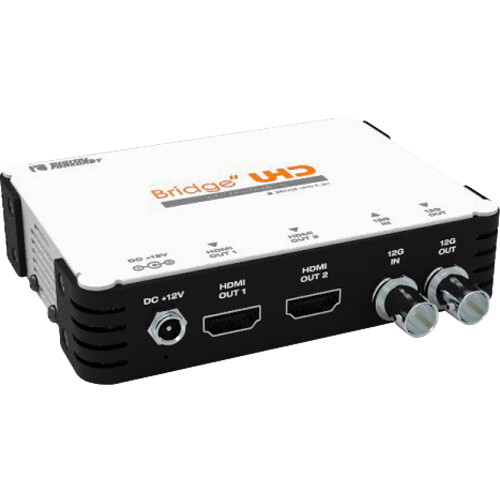

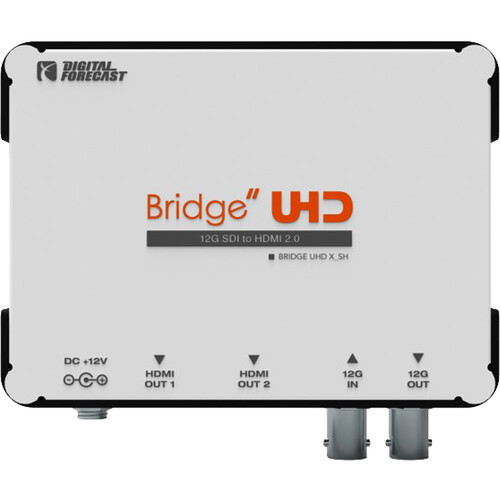

The Bridge UHD X_SH 12G-SDI to HDMI 2.0 UHD Converter from DIGITAL FORECAST enables you to convert broadcast-style SDI video input for HDMI output to commercial displays. This converter supports resolutions up to DCI 4K60 and has one 12G-SDI input and one 12G-SDI re-clocked output and dual HDMI 2.0 outputs. The Bridge UHD X_SH converter has LED status indicators and is powered via the included DC power adapter.

SKU: UHD X_SH Category: Tag:
Key Specs
Video I/O
Input
1x BNC (12G-SDI)
Output
1x BNC (12G-SDI)
2x HDMI 2.0
Video Resolution
BNC Input/Output (4:4:4)
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080 at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
HDMI Output
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Broadcast System Compatibility
NTSC, PAL
Wireless
No
Other I/O
Input
1x Mini-USB (Service)
Expansion Slots
No
Video Resolution
BNC Input/Output (4:4:4)
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080 at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
HDMI Output
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Embedded Audio
SDI Input
SDI Output
HDMI Output
Reclocking
Yes
Standards
Broadcast System Compatibility
NTSC, PAL
Hardware
Wireless
No
Power
Power I/O
1x Barrel (7 to 16 VDC ) Input
Power Consumption
Device: 11.8 W
Environmental
Operating Temperature
32 to 131°F / 0 to 55°C
Operating Humidity
0 to 95%
General
Dimensions
4.8 x 3.5 x 1.1″ / 122 x 90 x 28 mm
Weight
6.8 oz / 193 g
