DIGITAL FORECAST Bridge X_TS mini

Add to Wishlist
Key Features
  • Signal Test & Conversion in Compact Form
  • SDI/HDMI Up/Down/Cross-Conversion
  • Signal Integrity Checks
  • Audio Level Metering up to 8 Channels
  • Test Pattern Generator (8 Types)
  • Up to 1080p60 Input/Output
  • 5″ LCD with 800 x 480 Resolution
  • Eye Pattern Diagram of SDI Input
  • 1/4″-20 Mounting Thread
  • PSU Included, Battery Plates Supported

3,999.00 د.إ

Add to Wishlist

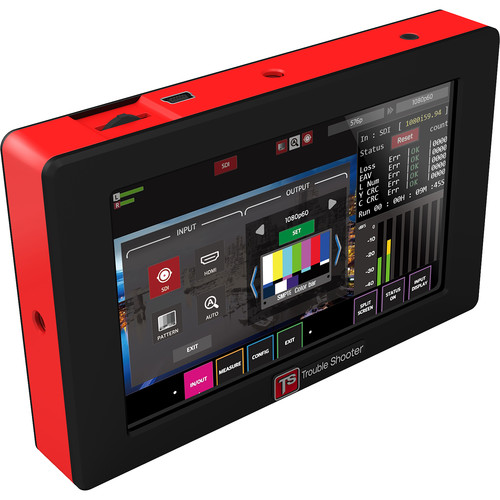

In a compact and portable form factor, the DIGITAL FORECAST Bridge X_TS mini provides SDI/HDMI up/down/cross-conversion and signal measurement functions for up to 1080p60 signals. The lightweight device allows signal integrity checks, up to 8 channels of audio level metering, and simultaneous test pattern generation and measurement. Up to 1080p60 resolution input and output is supported over 3G/HD/SD-SDI and HDMI 1.3 connections.

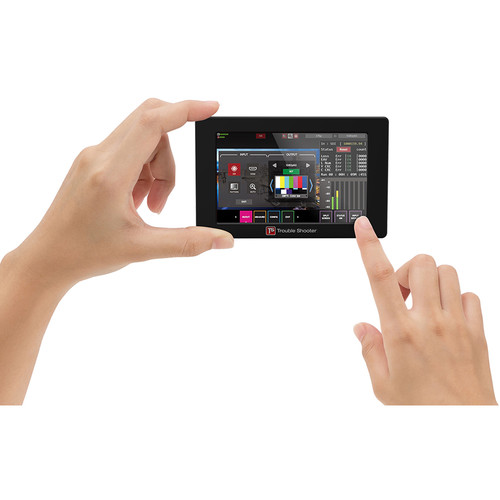

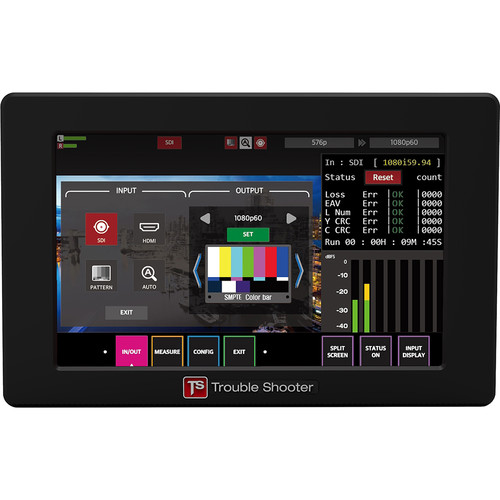

An intuitive workflow via the 5″ screen lets you select the signal type to display, monitor waveform, vectorscope, jitter, and other analysis factors, set the output resolution and frame rate, and more. The signal can be viewed in standard full screen mode or in split screen mode where the video is displayed on the left side and measurement details on the right.

A power supply is included with international plug adapters, but optional L-Series and LP-E6 battery plates are also supported on the rear for portable use (see Accessories tab). A 1/4″-20 mounting thread is provided on the bottom.

Key Feature
  • Up/down/cross-conversion between SDI/HDMI and HDMI/SDI signals
  • Signal integrity checks
  • Audio level metering up to 8 channels
  • Test pattern generator (8 types)
  • Simultaneous test pattern generation and measurement
  • 3G/HD/SD-SDI and HDMI 1.3 inputs and outputs
  • Up to 1080p60 resolution I/O
  • 5″ LCD with 800 x 480 resolution
  • Audio monitoring headphone output
  • Eye pattern diagram of the SDI input
  • SDI signal integrity check (Loss, TSR, CRC, line number)
  • HDMI signal integrity check (Loss, resolution, HDCP)
  • Indicates whether HDCP is activated
  • 1/4″-20 mounting thread
  • Power supply included
  • 7-17 VDC operation range
  • Optional L-series and LP-E6 battery plates supported
SKU: X_TS MINI Category: Tag:
Inputs / Outputs
Video Inputs
1x BNC (3G-SDI)
1x HDMI (1.3)
Video Outputs
1x BNC (3G-SDI)
1x HDMI
Audio Outputs
1x 1/8″ / 3.5 mm TRS
Format Support
Input Video Format
SDI
1080p at 24/25/30/50/59.94/60 fps
1080PsF 24 fps
1080i 50/59.94/60 fps
720p 24/25/30/50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
576p
480p
HDMI
1080p at 24/25/30/50/59.94/60 fps
1080PsF 24 fps
1080i 50/59.94/60 fps
720p 24/25/30/50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
576p
480p
Output Video Format
SDI
1080p at 24/25/30/50/59.94/60 fps
1080PsF 24 fps
1080i 50/59.94/60 fps
720p 24/25/30/50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
576p
480p
HDMI
1080p at 24/25/30/50/59.94/60 fps
1080PsF 24 fps
1080i 50/59.94/60 fps
720p 24/25/30/50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
576p
480p
Hardware
Display Size
5″
Screen Resolution
800 x 480
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
9 W
Environmental
Operating Temperature
32 to 102°F / 0 to 70°C
Operating Humidity
0 to 95%
General
Dimensions
5.47 x 3.46 x 0.87″ / 13.9 x 8.8 x 2.2 cm
Weight
0.72 lb / 325 g
Packaging Info
Package Weight
1.535 lb
Box Dimensions (LxWxH)
7.3 x 5.3 x 3.2″
