Drake Digital PEG-PLUS with ZIXI – MPEG-2 or H.264 Digital Video PEG Channel Encoder – HD-SDI or Composite In and IP Out

Add to Wishlist
  • Built-in watchdog timer with system reboot capability
  • VLAN and QoS support for streaming and traffic management
  • Unicast and multicast capabilities
  • ATSC PSIP tables support
  • MPEG-2 or H.264 video encoding

د.إ12,699.00

Add to Wishlist

Stand-alone MPEG-2 or H.264 digital video PEG channel encoder

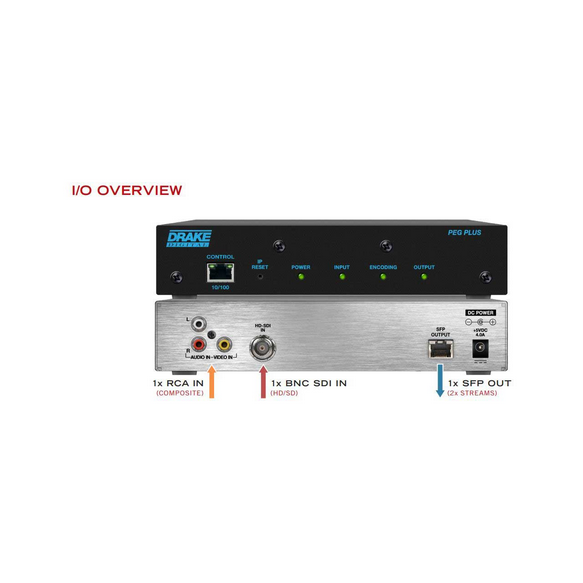

The Blonder Tounge Drake Series PEG PLUS is a stand-alone MPEG-2 or H.264 digital video PEG channel encoder with a single SD/HD-SDI, or composite video input, and an IP-encapsulation output via a single SFP Ethernet port. A separate RJ45 10/100 Ethernet port is provided for control and monitoring capability.

The Drake PEG PLUS features selectable SDI PCM-embedded audio, or analog left and right audio. Audio compression can be either Dolbyr Digital, MPEG1-Layer 2 stereo, or AAC stereo.

Utilize the Zixi output protocol, a UDP-based video-optimized platform, for smooth streaming of H.264 content over unmanaged networks, including the public internet. This robust solution equips professional broadcasters, sports networks, and service providers to effortlessly ingest and transport broadcast-quality video through standard IP networks.

  • Features:

    • Built-in watchdog timer with system reboot capability
    • VLAN and QoS support for streaming and traffic management
    • Unicast and multicast capabilities
    • ATSC PSIP tables support
    • MPEG-2 or H.264 video encoding
    • Selectable SD/HD-SDI or Composite video input
    • Encodes two HD or SD streams of the same content in either MPEG-2 or MPEG-4/H.264 formats
    • Supports video resolutions of 480i, 720p, or 1080i
    • Dolby® Digital, AAC, or MPEG1-Layer 2 stereo audio encoding from PCM-embedded audio source
    • IP output via SFP port (SFP sold separately)
    • Unicast and multicast-capable
    • Separate Management port and streaming port
SKU: 1002613B Category: Tag:

  • Specifications:

    • INPUT
    • Video Inputs
    • 1x RCA Composite
    • 1x BNC SD/HD-SDI
    • Audio Inputs
    • 1x BNC SDI (PCM-Embedded Audio);
    • 2x RCA (L, R) – Analog Audio
    • Supported
    • Closed Caption
    • Audio Gain Adjustment
    • Control
    • 1x Front Panel RJ45 (10/100)

      VIDEO

    • Video Resolution
    • 480i (640×480 / 720×480 @ 30 FPS)
    • 720p (1280×720 @ 60 FPS)
    • 1080i (1920×1080 @ 30 FPS)
    • AUTO-SCAN for Input Resolution

      AUDIO

    • Audio Format
    • L-PCM (IEC-60958) at up to 192 kHz

      OUTPUT

    • Connectors
    • 1x SFP Module Port (Plug-In sold Separately)

      SPTS STREAM PROTOCOLS

    • Standard
    • ISO/IEC 13818-1 Systems
    • Profiles
    • Single
    • Encoding Type
    • CBR or Capped VBR
    • Streams Supported
    • 2
    • Video Bitrate
    • 2 Mbps to 19 Mbps (0.1 Mbps increments)
    • Packet Format
    • UDP SPTS (two HD or SD streams)
    • Zixi
    • UDP Transport Stream Protocol

      ENCODED VIDEO

    • Video Resolution
    • 1080p (30 FPS);
    • 1080i (60 FPS);
    • 720p (30, 60 FPS);
    • 480i (30, 60 FPS)
    • Video Format
    • MPEG-2; H.264 (AVC)
    • Video Adjustments
    • Brightness, Contrast, Hue, Saturation
    • H.264 Profile Support
    • Baseline, Main, High

      ENCODED AUDIO

    • Audio Formats
    • Dolby® Digital AC3, AAC, or
    • MPEG1-Layer 2
    • Audio Output
    • Bitrates 128, 192, 224, or 384 Kbps

      ALARMS & MONITORING

    • Local Monitoring
    • 1x Power LED (bicolor)
    • 1x Input LED (bicolor)
    • 1x Encoding LED (bicolor)
    • 1x Output LED (bicolor)
    • Local Control
    • 1x IP Reset Button
    • Remote Monitor/Control
    • 1x RJ45 (10/100 Base-T)
    • GUI-based menu via standard web browser

      GENERAL

    • Dimensions (W x H x D)
    • 8.7 x 2.0 x 7.6 in (221 x 51 x 193 mm)
    • Form Factor
    • Desktop (rack panel sold separately)
    • Power Requirements:
    • External Power Supply
    • Input
    • 100/120VAC, 60Hz
    • Output
    • +5VDC @ 4.0A
    • Power Consumption
    • 35 W (is consumption = dissipation?)
    • Weight
    • 1.5 lbs (0.68 kg)
    • Temperature Rating
    • 32 to 122 °F (0 to 50 °C)

      Available SFPs (sold separately)

    • Item # Model Description
    • 1002620 SFP-C-10/100/1000 Transceiver 10/100/1000BASE-T SFP, RJ-45, 100M, COPPER
    • 1002621 SFP-MM-850-550M 1000BASE-SX SFP, 850NM, 550M, MMF, DDM
    • 1002622 SFP-SMF-1310-10KM 1000BASE-LX SFP, 1310NM, 10KM, SMF, DDM
    • 1002670 SFP-SMF-1310-40KM 1000BASE-LX SFP, 1310NM, 40KM, SMF, DDM
    • 1002623 SFP-SMF-1550-80KM 1000BASE-ZX SFP, 1550NM, 80KM, SMF, DDM
    • 1002624 SFP-SMF-CWDM-1470nm-80KM 1.25GBASE-CWDM-SFP, 1470NM, 80KM, SMF, DDM
    • 1002625 SFP-SMF-CWDM-1490nm 80KM 1.25GBASE-CWDM-SFP, 1490NM, 80KM, SMF, DDM
    • 1002626 SFP-SMF-CWDM-1510nm-80KM 1.25GBASE-CWDM-SFP, 1510NM, 80KM, SMF, DDM
    • 1002627 SFP-SMF-CWDM-1530nm-80KM 1.25GBASE-CWDM-SFP, 1530NM, 80KM, SMF, DDM
    • 1002628 SFP-SMF-CWDM-1550nm-80KM 1.25GBASE-CWDM-SFP, 1550NM, 80KM, SMF, DDM
    • 1002629 SFP-SMF-CWDM-1570nm-80KM 1.25GBASE-CWDM-SFP, 1570NM, 80KM, SMF, DDM
    • 1002630 SFP-SMF-CWDM-1590nm-80KM 1.25GBASE-CWDM-SFP, 1590NM, 80KM, SMF, DDM
    • 1002631 SFP-SMF-CWDM-1610nm-80KM 1.25GBASE-CWDM-SFP, 1610NM, 80KM, SMF, DDM
    • 1002632-XX SFP-SMF-DWDM-CHXX-40KM 1.25GBASE-DWDM-SFP, CH. 20-59 ,40KM, SMF, DDM
    • 1002633-XX SFP-SMF-DWDM-CHXX-80KM 1.25GBASE-DWDM-SFP, CH. 20-59, 80KM, SMF, DDM
    • Last 2 numbers indicate channel number (20-59).

  • Item Includes:

    • 1x Drake PEG-PLUS Encoder
    • 1x Power Adapter
