Drawmer SP2120 Dual-Channel Speaker Protector and Brickwall Limiter


Key Features
  • Secure Audio Limiter for Live Venues
  • Controls Accessible Only with Key
  • Dual 16-Segment LED Meter
  • AGC Automatic Protection Circuit
  • Threshold & Meter Calibration Controls
  • No Sound Quality Loss During Protection
  • Reduces Costs and Downtime
  • Includes AC Power Cord

AED4,799.00

Drawmer SP2120Ā Overview

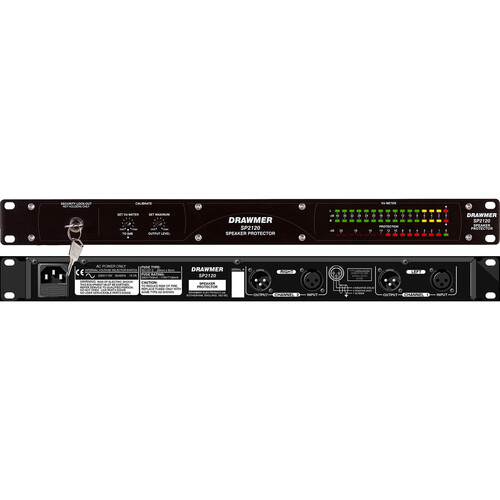

Designed to offer both strict level control and tremendous peace of mind for contractors, installers, and live performance venues, theĀ SP2120Ā fromĀ DrawmerĀ is a stereo, 1 RU speaker protector and brickwall limiter that protects sensitive speaker systems from spikes, pops, and over-enthusiastic DJs or engineers. Designed for absolute security and full compliance with local authority regulations concerning noise levels, the SP2120 sports two simple front-panel controls, maximum output level (threshold) and meter calibration, which are locked and protected from tampering with a convenient key, ensuring that only the key holder can make adjustments.

The SP2120 features two 16-segment LED meters for at-a-glance signal monitoring as well as a 16-segment protection meter that displays the level of active protection. The AGC (automatic protection circuit) allows for powerful signal limiting with minimal input, reducing downtime, replacement costs, or equipment servicing, with no loss of sound quality, allowing small overloads to sound louder, even though they’re not. The SP2120 includes an AC power cord and a globally compatible PSU for easy and simple installation in any venue.

SKU: SP2120 Category: Tag:
General
Input Impedance
20 Kilohms
Output Impedance
100 Ohms
Maximum Input Level
+21 dBu
Maximum Output Level
+14 dBu
CMR
>40 dB (22 Hz to 22 kHz)
Balance
>40 dB (22 Hz to 22 kHz)
Crosstalk
>90 dB (at 20 kHz)
Noise
-103 dB (Unity Gain, Reference +4 dBu / 22 Hz to 22 kHz)
Inputs / Outputs
Audio I/O
2x XLR 3-Pin Line Input (1 Stereo Pair)
2x XLR 3-Pin Line Output (1 Stereo Pair)
Power
Power Source
AC Input (Built-In)
Power Consumption
9 VA
AC Input Power
115 / 230 VAC, 50/60 Hz
Environmental
Certifications
CE
Physical
Mounting
Back: 4xĀ Standard Rackmount Hole
Color
Black
Material of Construction
Metal
Dimensions
19 x 6.3 x 1.7″ / 48.2 x 16 x 4.4Ā cm
Weight
4.9Ā lb / 2.2Ā kg
Packaging Info
Package Weight
6.175 lb
Box Dimensions (LxWxH)
22.6 x 14.9 x 4.5″
