Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter – PoE/PSE – TAA

Add to Wishlist

Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer



  • Dual 10/100/1000 Mbps PoE RJ45 ports
  • Supports IEEE 802.3at (Type 1, 2) Power over Ethernet standard
  • Power Sourcing Equipment (PSE) design provides data and up to 25.5W of power on each port
  • Built-in SATA and LP4 Molex power connector
  • Unique surge protection design helps prevent system damage in the event of lightning strikes
  • Jumbo Frame support
  • On-chip 48 KB Big Transmit/Receive Buffer Support
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
  • Crossover Detection & Auto-Correction (Auto MDIX)
  • Includes full and low-profile/half-height installation brackets

AED1,099.00

Add to Wishlist

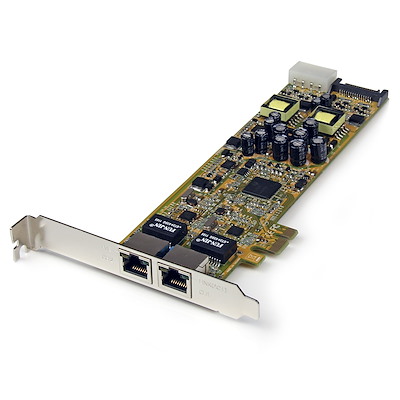

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.

This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones, and wireless access points.

Suitable for any PCI Express-enabled client, server, or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging, and Wake on LAN (WOL).



Applications

  • Provide power to PoE-powered devices, where they have no access to a power source
  • Add 2 Ethernet ports to a workstation or server computer from a single PCIe slot
  • Connect to 2 separate networks simultaneously
  • Install dual networking capabilities into a small form factor or other space-constrained computer system
  • Connecting Power over Ethernet-enabled IP cameras, IP phones, or Wireless Access Points
SKU: ST2000PEXPSE Category: Tag:

āœ… 2-Port PCIe Gigabit Ethernet PoE Network Adapter

Chipset: Realtek RTL8111G
Interface: PCIe x1 | Dual RJ-45 | PoE Support | SATA & LP4 Power Inputs

šŸ–„ļø Compatibility

Platform Supported Versions
WindowsĀ® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows ServerĀ® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac OS XĀ® 10.6 to 10.9
Linux Kernel 2.4.x and up (LTS versions only)

šŸ”Œ Connectors

Type Count
PCI Express x1 1
RJ-45 (Gigabit Ethernet) 2
SATA Power (15-pin) 1
LP4 (Molex – 4-pin) 1

šŸŒ”ļø Environmental Specifications

Parameter Range
Operating Temperature 0Ā°C to 55Ā°C (32Ā°F to 131Ā°F)
Storage Temperature -20Ā°C to 85Ā°C (-4Ā°F to 185Ā°F)
Humidity 5% ~ 95% RH

šŸ§± Hardware Specifications

Feature Details
Ports 2
Interface RJ45 (Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile (Low-profile bracket incl.)
Port Style Integrated on card
Chipset Realtek RTL8111G

šŸ“¶ Network Standards

  • IEEE 802.3 (10BASE-T)

  • IEEE 802.3u (100BASE-TX)

  • IEEE 802.3ab (1000BASE-T)

  • IEEE 802.3at (PoE+)

  • PCI Express Rev 2.0

šŸ’” LED Indicators

Indicator Type Function
Green LED Link / Activity (2x)
Yellow LED PoE Active (2x)

šŸš€ Performance

Feature Value
Max Data Rate 1000 Mbps (uni-directional)
2000 Mbps (bi-directional)
Buffer Size 48 KB
Compatible Speeds 10 / 100 / 1000 Mbps
Auto MDIX Yes
Wake-on-LAN Yes
Full Duplex Yes
MTBF 140,981 hours

šŸ“ Physical Characteristics

Property Value
Color Yellow
Material Steel
Length 7.7 in [19.5 cm]
Width 0.7 in [1.9 cm]
Height 2.7 in [6.8 cm]
Weight 3.7 oz [104.0 g]

āš” Power

Feature Details
Output Voltage 48V DC (for PoE)
Required Power Input LP4 or SATA power connector

šŸ“¦ Packaging Information

Item Value
Height 1.7 in [4.4 cm]
Length 9.0 in [22.9 cm]
Width 6.5 in [16.4 cm]
Shipping Weight 8.3 oz [236.0 g]
Package Quantity 1

šŸ” Special Notes / Requirements

  • Requires available full/low profile PCIe x1 (or higher) slot

  • Requires available LP4 or SATA power connector

  • PoE functionality enabled via the external power input

  • U.S. Patents:

    • #5,406,260 (expired), #6,650,622, #7,457,250, #8,155,012,

    • #8,902,760, #8,942,107, #9,019,838, #9,049,019

    • Applications: #14/695,456 and #14/726,940

šŸ“‚ What’s in the Box

  • 1 Ɨ PCI Express Network Card

  • 1 Ɨ Low Profile Bracket

  • 1 Ɨ Instruction Manual
