DVDO USB 2.0 Extender over Ethernet (196.85′)

Add to Wishlist
Key Features
  • Integrated 4-Port USB Hub
The DVDO USB 2.0 Extender over Ethernet is a slim transmitter and receiver set. It can extend USB signal up to 165ft via a Cat 5e/6 cable. The built-in USB Hub in the receiver supports up to 4 ports of USB 2.0. The transmitter can be powered by the USB host such as a PC.

AED1,299.00

Add to Wishlist

DVDO USB-PAIR Overview

The DVDO USB 2.0 Extender over Ethernet is a slim transmitter and receiver set. It can extend USB signal up to 165ft via a Cat 5e/6 cable. The built-in USB Hub in the receiver supports up to 4 ports of USB 2.0. The transmitter can be powered by the USB host such as a PC.

  • Supports high-speed USB 2.0 (Up to 480Mbps) over a Cat 5e/6 cable up to 165′
  • Up to 4 USB device connections supported by the Hub
  • Transmitter can be powered by USB port, receiver can be powered bylockable DC supply with 500mA to each USB device
  • Plug-and-play, with no driver installation required
  • Supports all major operating systems: Windows, Mac OS and Linux
  • Compatible with USB 1.1 and USB 1.0 peripherals
SKU: DVDO-USB-PAIR Category: Tag:

DVDO USB-PAIR Specs

General

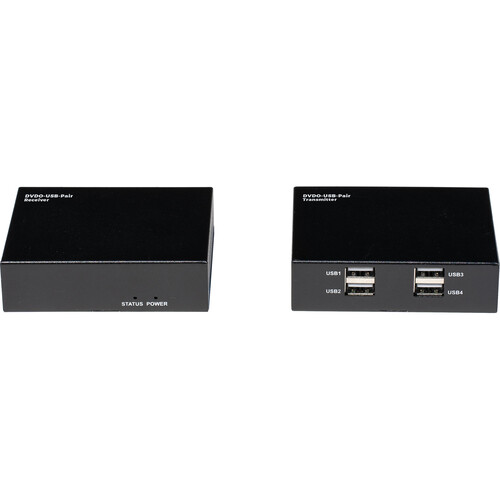

Inputs/Outputs Transmitter:
1 x USB-B
1 x RJ45Output

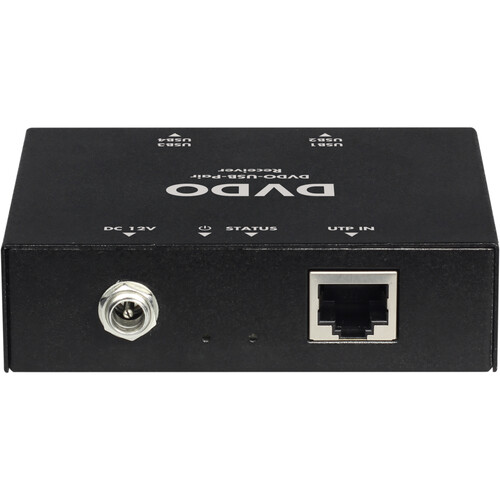

Receiver:
1 x RJ45Input
4 x USB-A
Maximum Transmission Distance 164.0′ / 50 m
Transmission Method CAT5e/CAT6 Cable
Power
Power Consumption 4.5 W
DC Input Power 12 VDC at 1 A
Physical
Dimensions 3.5 x 2.8 x 1.0″ / 90.0 x 71.0 x 25.0 mm (Transmitter)
3.5 x 2.8 x 1.0″ / 90.0 x 71.0 x 25.0 mm (Receiver)
Weight 12.3 oz / 350.0 g (Transmitter)
12.3 oz / 350.0 g (Receiver)
Packaging Info
Package Weight 1.575 lb
Box Dimensions (LxWxH) 10.3 x 5.5 x 2.6″
