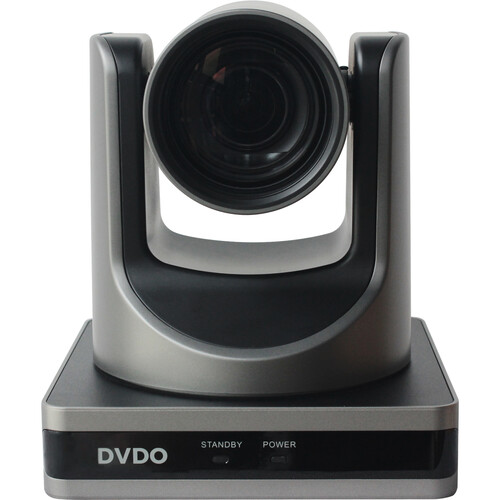

DVDO USB PTZ Video Conference Camera with 12x Optical Zoom

Add to Wishlist

AED5,299.00

Add to Wishlist

The DVDO USB PTZ Video Conference Camera features USB 3.0 and Ethernet connections and allows you to output two streams, one in up to 1080p30 in YUY2, MJPEG, or H.264 compression, and the second stream in up to 720p30 in H.264. Compatible with the UVC 1.5 protocol, the camera can be used with virtually all popular conferencing platforms by simple plug-and-play connectivity.

A 3.5mm line input lets you embed external audio, and an RS-232 input allows serial control via VISCA, Pelco-D, and Pelco-P protocols. An IR remote control is also included for selecting presets and performing other key functions.

A built-in lens provides up to 12x optical zoom for small- to mid-size environments, capturing a closeup to wide-angle field of view range from 72.5 to 6.9°, and complemented by 16x digital zoom.

Dual power supply capability allows you to choose between the included 12V power supply or running 5V power over the USB connection.

Other Features

1/2.7″ CMOS sensor, up to 1080p30 image capture
H.264 Slice/SVC encoding mode for video conferencing and advanced USB applications
AAC audio encoding
2D/3D noise reduction algorithms greatly reduce image noise to keep images clean and clear even under low lighting, with signal-to-noise ratio up to 55 dB
Backlight compensation
255 presets with 0.1° preset accuracy

First Stream Resolution (YUY2/MJPEG/H.264)

1920 x 1080 up to 30 fps, 1280 x 720 up to 30 fps, 1024 x 576, 960 x 540, 640 x 480, 640 x 360

Second Stream Resolution (H.264)

1280 x 720 up to 30 fps, 1024 x 576, 720 x 576 (50 Hz support), 720 x 480 (60 Hz), 720 x 408, 640 x 360, 480 x 270, 320 x 240, 320 x 180

Video Bit Rate

32 to 20,480 Kb/s (variable/fixed)

Audio Bit Rate

96, 128, and 256 Kb/s

White Balance

Auto, Indoor, Outdoor, One Push, Manual, VAR

Protocols

TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, and more

MTBF

>30,000 hours
Key Features
  • Dual Streams (1080p30 and 720p30)
  • USB, RJ45, and 3.5mm Line-In Ports
  • RS-232 Input
  • 3.5 to 42.3mm Built-In Lens
  • 12x Optical Zoom for Small/Medium Rooms
  • 72.5 to 6.9° Close to Wide Field of View
  • 2D/3D Noise Reduction
  • 255 Presets with 0.1° Preset Accuracy
  • Signal-to-Noise Ratio up to 55 dB
  • JEITA/USB Dual Power Supply
SKU: DVDO-C2-1 Category: Tag:
Weight 1.17 kg

DVDO C2-1 Specs

Image Sensor
Image Sensor 1-Chip 1/2.7″ CMOS Sensor
Sensor Resolution Effective: 2.07 Megapixel
Signal-to-Noise Ratio 55 dB
White Balance Range 3000 to 6500K
Camera
Shutter Speed 1/30 to 1/10,000 sec
Scan Rate Adjustable No
Max Digital Zoom 16x
IR Cut Filter No
Flip / Mirror Support Image Flip
Lens
Optical Zoom Ratio 12x
Focal Length 3.5 to 42.3mm
Field of View Horizontal: 72.5 to 6.9°
Vertical: 44.8 to 3.9°
Maximum Aperture f/1.8 to 2.8
Focus Control Autofocus
Manual Focus
Video Output
Output Formats RJ45, USB: 1920 x 1080p at 30 fps
Recording
Audio Recording AAC Audio
Control
Presets 255
Move Speed Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light No
Interfaces
Video Output Connectors 1 x USB 3.0 Type-B
1 x RJ45
Audio I/O 1 x 1/8″ / 3.5 mm Mono Line Level Input
Control Interface 1 x 8-Pin Mini-DIN (RS-232) Input
System Requirements
Supported Operating Systems Windows, macOS, Linux, Android
Power
Power Connectors 1 x JEITA (12 VDC at 1 A)
Power Consumption 12 W
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
General
Security Lock Support None
Physical
Max Cable Length 98.4′ / 30 m (RS-232)
Dimensions 6.6 x 5.7 x 5.7″ / 168 x 144 x 144 mm
Weight 2.58 lb / 1.17 kg
Packaging Info
Package Weight 4.795 lb
Box Dimensions (LxWxH) 10 x 9.2 x 9.2″
