Control, mix, and route audio signals through professional audio systems with the Dynacord MXE5 Matrix Mix Engine, an open architecture audio matrix and system controller with professional sound quality, Dante network, and AES70/OCA control. The MXE5 is designed for fixed and live audio installations such as stadiums, arenas, houses of worship, concert halls, theaters, and other applications that require high-performance multichannel audio system controllers with sophisticated signal processing and networking.
The performance audio matrix with 12 analog mic/line inputs, 8 line outputs and 24×24 Dante channels provides configurable matrix blocks with up to 3840 cross-points and up to 256 internal signal-paths. The configuration allows the choice between a fixed or a free DSP configuration. At the same time, the MXE5 serves as a control center and communications hub for system devices and IP-based peripherals, providing comprehensive supervision of system-wide commands. The MXE5 ships with a set of Euroblock connectors and a power cord.
| Specification | Details |
|---|
| General |
| Compatibility | Not Specified by Manufacturer |
| Frequency Response | 20 Hz to 20 kHz (±0.5 dB) (1 kHz, Analog In to Analog Out, 48 kHz) |
| 20 Hz to 40 kHz (±0.5 dB) (1 kHz, Analog In to Analog Out, 96 kHz) |
| Signal to Noise Ratio | Analog Input: >118 dBA |
| Analog Output: >118 dBA |
| Analog Input to Analog Output: >115 dBA |
| EIN | <-128 dB (20 Hz to 20 kHz, A-Weighted) |
| THD+N | <0.002% (1 dB Below Maximum, at 1 kHz) |
| Crosstalk | <-105 dB (1 dB Below Maximum, at 1 kHz) |
| CMRR | > 70 dB (1 kHz, Nominal Level) |
| Phantom Power | +48 V / 10 mA, Switchable per Analog Input |
| Gain | 0 to +60 dB (Analog Inputs) |
| DSP | Sampling Rate: 48 kHz / 96 kHz, OMNEO / Dante Synchronized |
| Signal Delay / Latency: < 0.45 ms / < 0.22 ms (Analog In to Analog Out, 48 kHz / 96 kHz) |
| Signal Processing: 32/40 Bit, Floating Point |
| Filter: PEQ, Lopass, Hipass, Loshelv, Hishelv, XOver, FIR |
| Dynamics: Ducker, Compressor, Noisegate |
| Limiter: Peak (PA) Limiter, RMS / TEMP Limiter |
| Pilot Tone: Generator, Detector with Notch |
| Generators: Sine, Pink Noise, White Noise |
| Mixer/Router: Router, Matrix Mixer |
| Miscellaneous: VU Meter, Level, Polarity, Mute, Delay |
| Special Algorithms: Speaker Processing |
| Memory | DSP Presets 60 |
| Performance | Nominal Input / Output Level: +6 dBu / 1.55 V |
| Maximum Input / Output Level: +22 dBu / 9.7 V |
| Reference Level Equal to Digital Input: +22 dBu for 0 dBFS |
| Input Impedance: 2.2 Kilohms (Active Balanced) |
| Output Impedance: 47 Ohms (Active Balanced) |
| Minimum Load Impedance: 600 Ohms |
| Display |
| Panel Type | OLED |
| Display Size | Not Specified by Manufacturer |
| Native Resolution | 256 x 64 |
| Touchscreen | No |

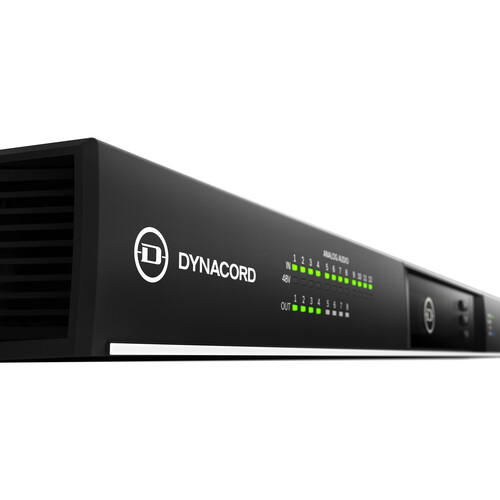

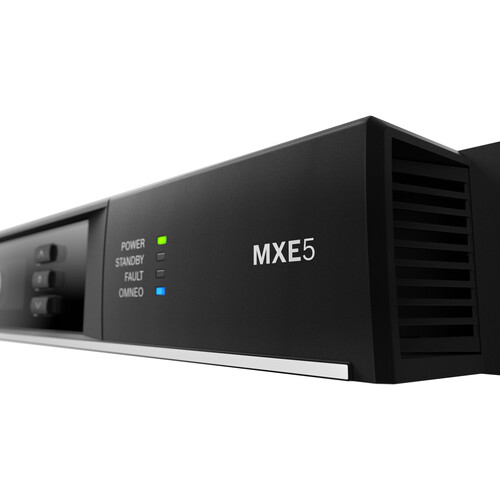

| Controls and Indicators | Front-Panel Indicators: 12 x Input LEDs (Signal/Clip), 12 x Phantom Power LEDs (+48 V), 8 x Output LEDs (Signal/Clip), 4 x Status LEDs (Power, Standby, Fault, OMNEO) |
| Front-Panel Operating Elements: 3 Push Buttons (Up, Enter, Down) |

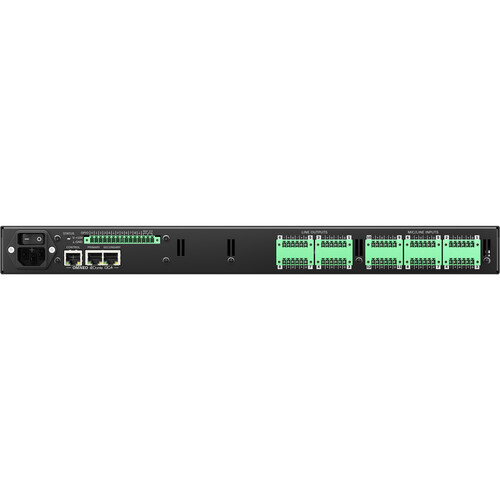

| Rear-Panel Indicators: 1 x Status LED (Status) |
| Rear-Panel Operating Elements: Mains Switch |
| Inputs / Outputs |
| Audio I/O | 6 x Block 6-Pin Line/Mic Input |
| 4 x Block 6-Pin Line Output |
| Network | 1 x RJ45 OMNEO / OCA Control Port |
| 2 x OMNEO/Dante/OCA (Primary / Secondary) Ports |
| Standards: 1000Base-T / 100Base-TX, Integrated Switch |
| Network Audio Inputs: 24 Channels, 48 kHz / 96 kHz, OMNEO/Dante Format |
| Network Audio Outputs: 24 channels, 48 kHz / 96 kHz, OMNEO/Dante Format |
| Control Port | GPIO: 15-Pin Euroblock Connector, Control Port / GPIO |
| Ports and Operating Modes: 8 x GPIO, Switchable Analog In / Digital In / Digital Out |
| Analog Input Range: 0 to +11 V (110 Kilohms Input Resistance) |
| Digital Inputs | ON: <1.5 V |
| OFF: >2.0V, Internal Pull-Up (10 Kilohms) |
| Digital Outputs | ON: Output Switched to Ground, Maximum 200 mA |
| OFF: Open Collector (110 Kilohms to Ground) |
| Reference Voltage Output | +10 V, Maximum 200 mA, Supervised, Short-Circuit Protected |
| Ready / Fault Contact | Galvanic Isolated Relay, Maximum 30 VDC / 500 mA |
| Power |
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 55 W (Maximum) |
| Environmental |
| Environmental Resistance | No |
| Operating Temperature | 23 to 113°F / -5 to 45°C |
| Physical |
| Color | Black |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 19 x 18.5 x 1.7″ / 483 x 471 x 43.5 mm |
| Weight | 13.2 lb / 6 kg |
