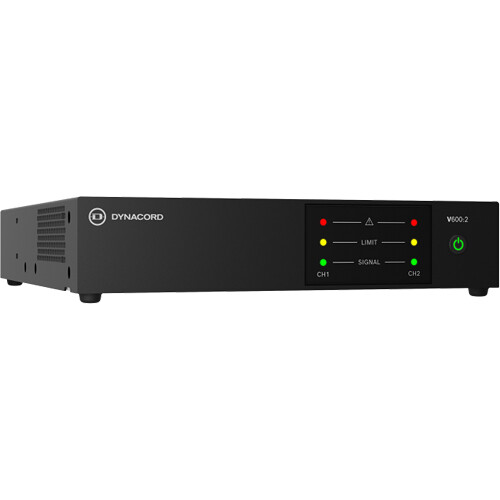

Dynacord V600:2 Two-Channel 600W Power Amplifier for Commercial Installations (1 RU, 1/2-Rack)

Add to Wishlist
Key Features
  • For Background Music and Announcements
  • 2 x 300W Amplifier Channels
  • 600W Total powerTANK Capacity
  • Drive at 4 or 8 Ohms & 70 or 100V Loads
  • Variable Load Drive to All Channels
  • ecoRAIL for Reduced Power Consumption
  • dualCOOL Convection + Fan Cooling
  • Includes Euroblock Connectors
  • Includes Rackmount Hardware
  • Includes IEC Power Cord

AED4,499.00

Add to Wishlist

System installers and integrators looking for a flexible 2-channel amplifier will be pleased with the Dynacord V600:2, a lightweight 1 RU (1/2 rack) amplifier well suited for background music and announcements in small to midsized commercial installations. With its low energy consumption and flexible power-load allocation, the V600:2 provides easy and trouble-free performance with a reduced cost of ownership.

Notable features include powerTANK, which provides a reservoir of power while the Variable Load Drive (VLD), ensures the powerTANK provides consistent power to either channel with any impedance. The built-in DSP handles input routing and provides HPF, LPF, and peak limiting. The amplifier is equipped with a PFC power supply and protection to ensure reliable and safe operation for years to come. The included rackmount hardware allows you to mount one or two units in a single 1 RU rack. Euroblock connectors and an IEC power cord are also included.

At a Glance
  • 2-channel amplifier, with a total powerTANK capacity of 600W
  • Variable Load Drive (VLD), providing the same power into 4/8 ohms or 70/100V
  • ecoRAIL and APD deliver significant reduction in power consumption
  • dualCOOL convection cooling with additional intelligent fan in case of extreme thermal conditions
  • Comprehensive protection package for reliable operation
powerTANK
powerTANK is a reservoir of available amplification power that is deployed flexibly across the 2 channels of the amplifier. There is no need to set up the powerTANK as it adapts to the requirements of each zone or output without extra manual configuration of each individual channel.
Variable Load Drive
Variable Load Drive (VLD) ensures that the powerTANK capacity is utilized efficiently, providing consistent power to any channel with any impedance.
dualCOOL
The dualCOOL thermal design means that the amplifier typically operates as a convection cooled amplifier, but in extreme thermal conditions the amplifier is also equipped with an intelligent multi-speed fan to ensure maximum performance and reliability in any application.
ecoRAIL
ecoRAIL’s power consumption is similar to a regular standby level, yet ecoRAIL still produces audio output suitable for background music levels, and the Auto Power Down (APD) mode can be engaged to further reduce power consumption to less than 1W when there is no signal present for extended periods.
Line Input
The single-cable installation feature is compatible with AES72-1E (RJ45 connectors) wired devices. This solution provides easy installation for both channels without needing to wire all the connections individually.
PFC Power Supply
Equipped with a PFC power supply and protection features usually reserved for the professional power amplifiers, means that the amplifier resists complete shutdown situations and will always perform at its best under all conditions.
SKU: F.01U.410.739 Category: Tag:
Key Specs
Number of Channels
2
Amplifier Power Rating
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 300 W per Channel
4 Ohms / 70 V:
1x 500 W One Channel Driven (1 kHz)
8 Ohms / 100 V:
600 W One Channel Driven (1 kHz)
Load Impedance / Voltage
4 / 8 Ohms per Channel
70 V (16.7 Ohms)
100 V (33.3 Ohms)
DSP
Yes
Analog Audio I/O
1x Block 6-Pin Balanced Line Input
1x Block 5-Pin Control/Remote Input
1x Block 4-Pin Speaker Output
Digital I/O
1x RJ45 Amplink Input (I/O, Network)
Network I/O
No
Rackmount Size
1 RU (1/2-Rack)
Amplifier
Number of Channels
2
Amplifier Power Rating
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 300 W per Channel
4 Ohms / 70 V:
1x 500 W One Channel Driven (1 kHz)
8 Ohms / 100 V:
600 W One Channel Driven (1 kHz)
Amplifier Class
Class-D
Load Impedance / Voltage
4 / 8 Ohms per Channel
70 V (16.7 Ohms)
100 V (33.3 Ohms)
Performance
Protections
DC Fault, DC Offset, Output Limiter, Overcurrent, Overvoltage, Power Supply, RF, RMS, Short Circuit, Thermal, Ultrasonic, Undervoltage
Frequency Response
20 Hz to 20 kHz -3 dB
Input Impedance
20 Kilohms (Balanced)
Max Gain
33 dB (at 2 Ohms)
36 dB (at 4 Ohms)
39.2 dB (at 70 V)
42.2 dB (at 100 V)
Max Input Level
18 dBu
SNR
> 100 dB (at 4 Ohms)
> 102 dB (at 8 Ohms)
> 101 dB (at 70 V)
> 103 dB
THD+N
< 0.1% (1/8th Rated Output Power, 1 kHz)
Crosstalk
< -70 dB (4 Ohm)
< -75 dB (8 Ohm)
< -90 dB (70 V)
< -95 dB (100 V)
Signal Processing
DSP
Yes
Crossover
Yes
Limiting
Peak (per Channel)
Connectivity
Analog Audio I/O
1x Block 6-Pin Balanced Line Input
1x Block 5-Pin Control/Remote Input
1x Block 4-Pin Speaker Output
Digital I/O
1x RJ45 Amplink Input (I/O, Network)
Network I/O
No
Mobile App Compatible
No
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power Connector
IEC 15 A / NEMA 5-15
Power Consumption
115 W (1/8 Power)
12 W (Idle)
1 W (Standby)
Physical
Display & Indicators
2x Green LED (Signal)
2x Yellow LED (Limit)
2x Red LED (Fault)
Rackmount Size
1 RU (1/2-Rack)
Cooling
1x Convection
1x Fan (Variable Speed)
Operating Temperature
23 to 113°F / -5 to 45°C
Dimensions
8.6 x 1.7 x 10.6″ / 21.8 x 4.3 x 26.9 cm
Weight
4.6 lb / 2.1 kg
Packaging Info
Package Weight
7.275 lb
Box Dimensions (LxWxH)
15.3 x 14 x 3.7″
