Eaton 1.4kW Single-Phase Switched PDU, LX Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. (3.66 m) Cord, 1U Rack,

Add to Wishlist

Quick tech specs

  • 14kW single-phase PDU distributes,monitors and manages AC power in an IT environment
  • 8 individually controllable NEMA 5-15R outlets
  • 1u pdu/ switched pdu/ single phase pdu/ power distribution unit/ rack-mount power strip/ 120v pdu/ horizontal pdu/ rackmount power strip
  • Digital ammeter for on-site load monitoring in real time
  • Tripp Lite is now a part of Eaton

AED4,199.00

Add to Wishlist

Know your gear

The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

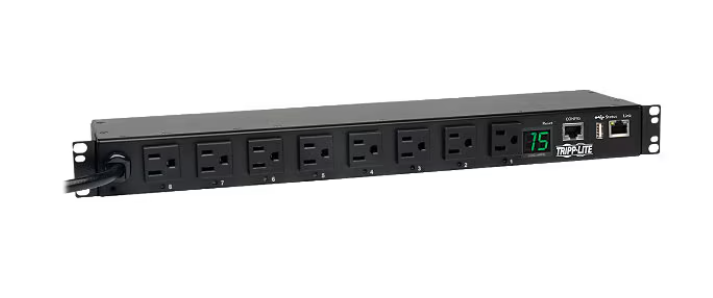

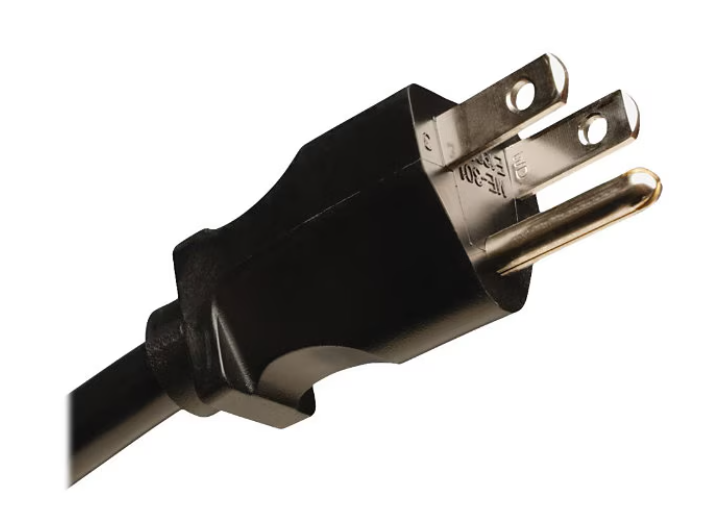

The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The  Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload.

SKU: PDUMH15NET2LX Category: Tag:
Overview
Specification Details
Brand Tripp Lite
Product Line Eaton
Model 1.4kW Single-Phase Switched PDU, LX Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. (3.66 m) Cord, 1U Rack, TAA
Manufacturer Tripp Lite
Network & Communication
Specification Details
Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Serial, USB
Connectivity
Specification Details
Input Connectors 1
Interface Provided 1 x RJ-45 (Fast Ethernet), 1 x RJ-45 (Serial), 1 x USB Type A (4-pin)
Power
Specification Details
Emergency Power Off Amp meter, LCD display
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA 5-15P
Input Wiring 1-phase
Max Input Current 15 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-15
Power Output Connectors Details 8 x power NEMA 5-15
Power Provided 1.52 kilograms per millimetere
Provided Voltage AC 100/120/127 volt
Required Voltage AC 100/120/127 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Operating Humidity 5 – 95% (non-condensing)
Product Information
Specification Details
Cord Length 12 ft
Features Horizontal orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables Power cable – external – 12 ft

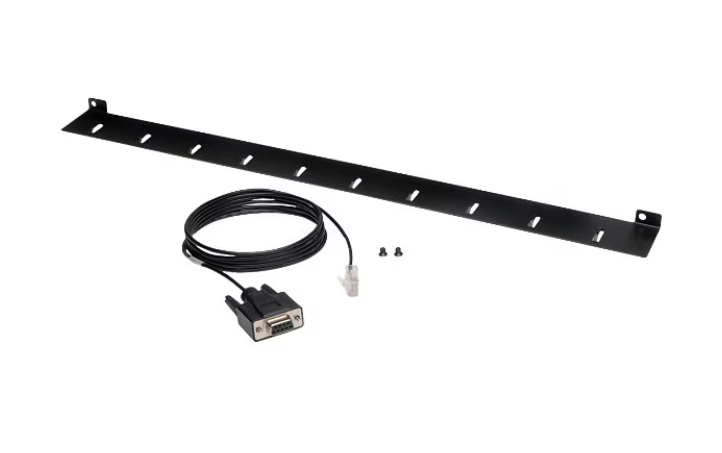

Included Accessories 8 cable ties, Cable retention bracket
Dimensions & Weight
Specification Details
Height 1.8 inch
Height (Rack Units) 1
Weight 5.2 lbs
Width 17.5 inch
Depth 4.3 inch
Physical Characteristics
Specification Details
Color Category Black
