Eaton 1.9kW Single-Phase Switched PDU, LX Interface, 120V Outlets (8 5-15/20R), NEMA L5-20P/5-20P input, 12 ft. (3.66 m)


Quick tech specs

  • 1.9kW Single-Phase Switched PDU
  • 8 individually controllable NEMA 5-15/20R outlets with 12 ft AC power cord and 5-20P adapter
  • Built-in Java-free LX Platform interface for remote access 24/7
  • Rack-Mount PDU/ Power Distribution Unit/ Horizontal PDU/ Switched PDU/ rack pdu/ data center pdu/ network pdu
  • 1.9kW PDU distributes monitors and manages AC power in an IT environment
  • 1U horizontal rackmount
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

AED4,799.00

Know your gear

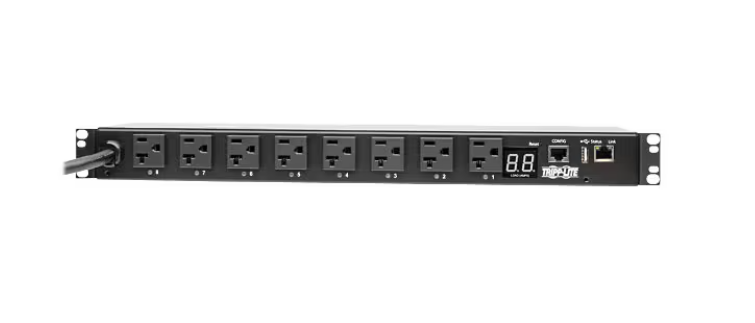

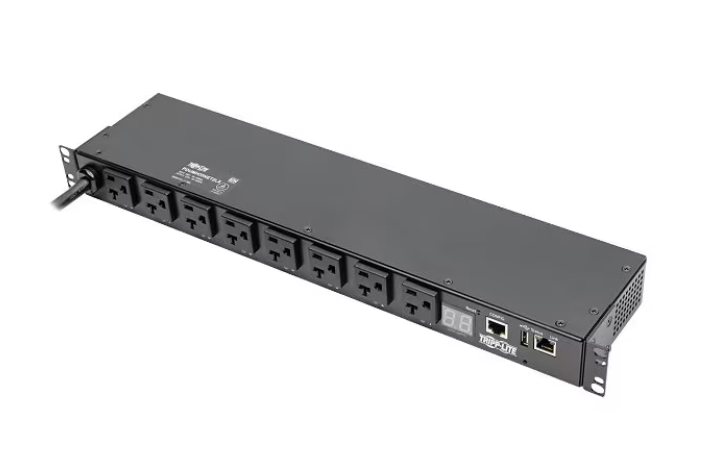

The PDUMH20NET2LX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

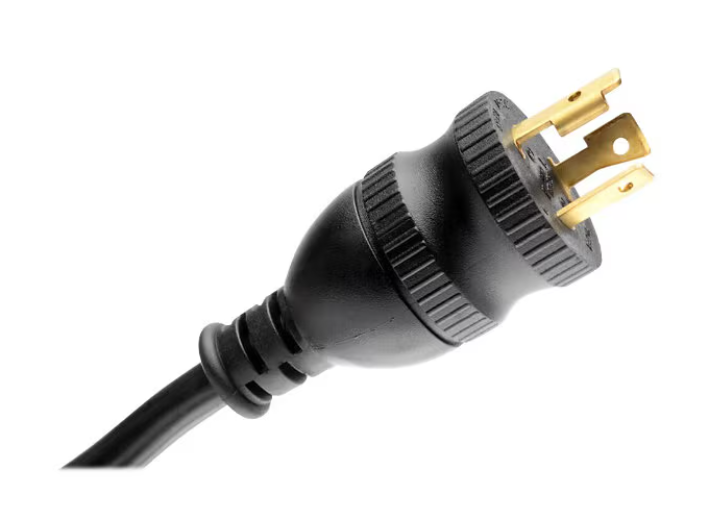

The 1U PDU features eight switched NEMA 5-15/20R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA L5-20P plug and 5-20P plug adapter connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The single-phase PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.

SKU: PDUMH20NET2LX Category: Tag:
Category Specification
Overview
Brand Tripp Lite
Product Line Eaton
Model 1.9kW Single-Phase Switched PDU, LX Interface, 120V Outlets (8 5-15/20R), NEMA L5-20P/5-20P input, 12 ft. (3.66 m) Cord, 1U Rack, TAA
Manufacturer Tripp Lite
Network & Communication
Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Serial, USB
Connectivity
Input Connectors 1
Interface Provided 1 x management (Fast Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type A
Power
Emergency Power Off Amp meter, LCD display
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L5-20
Input Wiring 1-phase
Max Input Current 20 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-15/20R
Power Output Connectors Details 8 x power NEMA 5-15/20R
Power Provided 2.03 kilograms per millimetere
Provided Voltage AC 100/120/127 volt
Required Voltage AC 100/120/127 volt
Technical Information
Form Factor (Power Device) Rack-mountable
Operating Humidity 5 – 95% (non-condensing)
Product Information
Cord Length 12 ft
Features Horizontal orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Cables Power cable – external – 12 ft

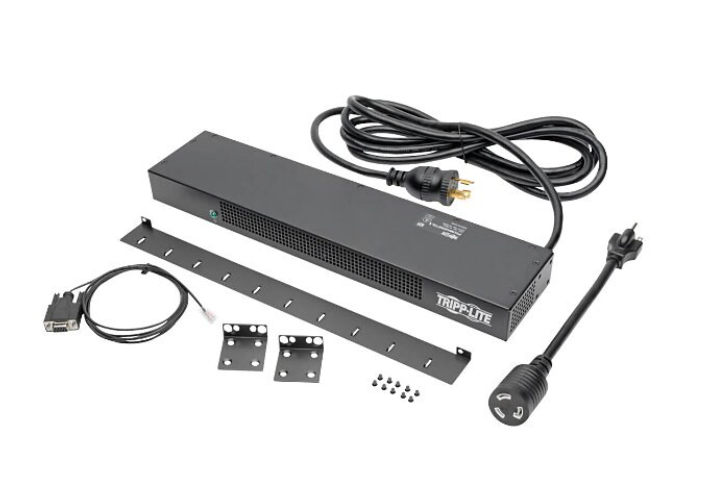

Included Accessories 8 cable ties, Cable retention bracket, NEMA 5-20P plug adapter
Dimensions & Weight
Height 1.8 inch
Height (Rack Units) 1
Width 17.5 inch
Depth 4.3 inch
Physical Characteristics
Color Category Black
