Eaton 2.9kW Single-Phase Switched PDU – LX Interface, 120V Outlets (16 5-15/20R), 10 ft. (3.05 m) Cord with L5-30P, 2U,


Quick tech specs

  • 2.9kW single-phase switched PDU 120V 2U horizontal w/ 16 outlets and 10ft cord
  • Reports voltage frequency and load level via Ethernet interface
  • Visual current meter and reversible housing
  • TAA-Compliant
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Horizontal PDU
  • 16 NEMA 5-15/20R outlets; NEMA L5-30P input plug 10ft cord
  • Temperature humidity and contact closure monitoring options
  • Tripp Lite is now a part of Eaton

AED6,099.00

Know your gear

The PDUMH30NET 2.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

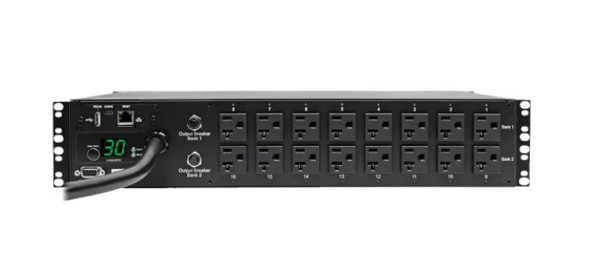

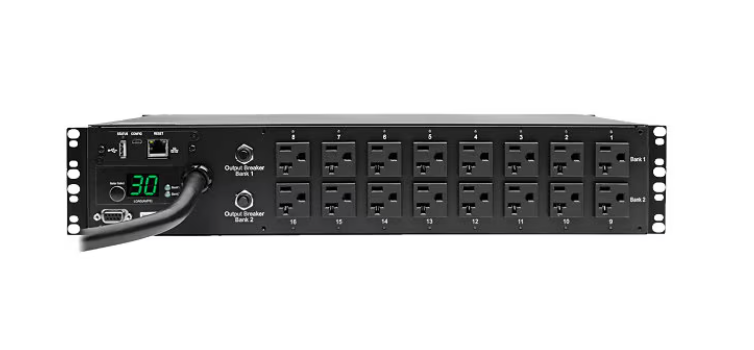

The switched PDU features 16 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to a compatible AC source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP.

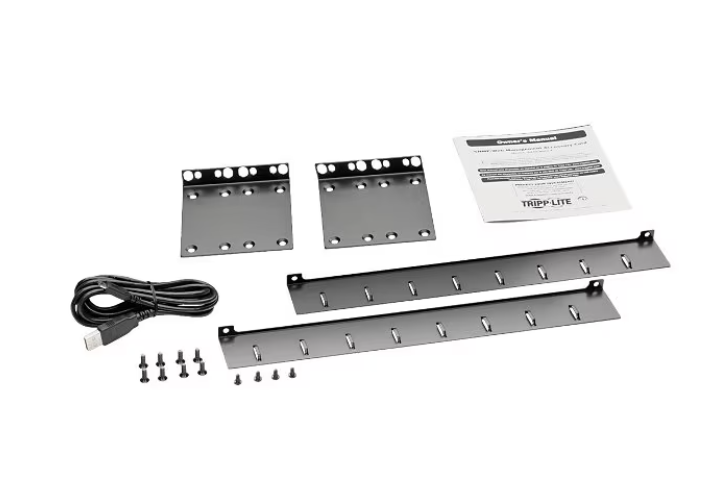

A digital ammeter allows you to monitor each load bank’s current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 2U of space in EIA-standard 19-inch racks using the included hardware or beneath a counter with user-supplied screws.

SKU: PDUMH30NET Category: Tag:
Category Specification
Overview
Brand Tripp Lite
Product Line Eaton
Model 2.9kW Single-Phase Switched PDU – LX Interface, 120V Outlets (16 5-15/20R), 10 ft. (3.05 m) Cord with L5-30P, 2U, TAA
Edition Horizontal rackmount
Manufacturer Tripp Lite
Network & Communication
Remote Management HTTP, HTTPS, SNMP, SNMP 1, SNMP 2, Telnet
Remote Management Interface Ethernet 10/100
Connectivity
Input Connectors 1
Interface Provided 1 x management (Ethernet)
Power
Emergency Power Off Current meter, LED indicators
Frequency 50/60 Hz
Frequency Provided 50/60 Hz
Input Connector Type Power NEMA L5-30
Max Input Current 30 A
Output Connector Quantity 16
Output Connector Type Power NEMA L5-20
Power Output Connectors 16 x power NEMA L5-20
Power Provided 2.9 kilograms per millimetre (Note: likely intended as 2.9 kVA)
Provided Voltage AC 120 V
Required Voltage AC 120 V
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95%
Protection Type Circuit breaker
Product Information
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Dimensions & Weight
Height 3.5 inch
Height (Rack Units) 2 U
Weight 13.89 lbs
Width 17.5 inch
Depth 12.5 inch
