Eaton 23kW 220-240V 3PH Switched PDU – LX Interface, Gigabit, 30 Outlets, IEC 309 32A Red 380-415V Input, LCD, 1.8 m

Add to Wishlist

Quick tech specs

  • 240V 3PH Switched PDU
  • Power distribution unit (rack-mountable)
  • AC 380/400 V
  • 3-phase
  • input: IEC 60309 32A
  • 0U
  • TAA Compliant
  • LX Interface, Gigabit, 30 Outlets, IEC 309 32A Red 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA
  • 32 A
  • 22.2 kW
  • Ethernet 10/100, USB
  • output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
  • 6 ft cord

AED16,199.00

Add to Wishlist

Know your gear

The PDU3XEVSR6G32B 22.2kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

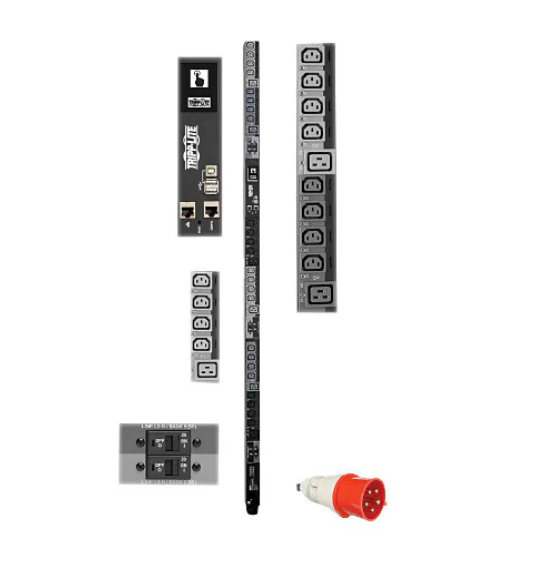

The 0U PDU features 30 switched 220/230V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 32A Red 380/400V plug connects the PDU to a compatible AC power source, generator or protected UPS.
The  Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
SKU: PDU3XEVSR6G32B Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton
Model 23kW 220-240V 3PH Switched PDU – LX Interface, Gigabit, 30 Outlets, IEC 309 32A Red 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA
Manufacturer Tripp Lite
Network & Communication Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, USB
Connectivity Input Connectors 1
Interface Provided 1 x management – RJ-45, 1 x management (Fast Ethernet) – RJ-45, 1 x USB – 4 pin USB Type B, 2 x USB – 4 pin USB Type A
Power Emergency Power Off Current meter, Digital power meter, Email alerts support, Energy meter, Firmware upgradable, Overload protection, Touch screen LCD display, Voltage monitoring
Frequency Provided 50/60 hertz
Input Connector Type Power IEC 60309 32A
Input Wiring 3-phase
Max Input Current 32 ampere
Output Connector Quantity 30
Output Connector Type 24 x power IEC 60320 C13, 6 x power IEC 60320 C19
Power Output Connectors Details 24 x power IEC 60320 C13 – 230 V, 6 x power IEC 60320 C19 – 230 V
Power Provided 22.2 kilograms per millimetere (Note: Likely intended as ~22.2 kVA)
Provided Voltage AC 220-230 volt
Required Voltage AC 380/400 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 122 °F
Min Operating Temperature 32 °F
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 6 ft
Features LED Indicator, Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Management cable – external, Power cable – integrated – 6 ft
Included Accessories 30 plug-lock insert sleeves
Dimensions & Weight Height 70 inch
Height (Rack Units) 0
Weight 16.01 lbs
Width 2.2 inch
Depth 2.5 inch
Physical Characteristics Color Category Black
