04 3550600 052 7036860

Eaton 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (12-C13 and 4-C19), L6-30P, 12 ft.

Add to Wishlist

Quick tech specs

  • 5/5.8kW Single-phase monitored PDU 2U horizontal with 16 outlets and 12ft cord
  • Reports voltage frequency and load level via Ethernet interface
  • Temperature humidity and contact-closure monitoring options
  • PDU/ Power Distribution Unit/ PDU Strip/ Monitored PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Horizontal PDU
  • Monitored 30A 208/240V PDU with 16 outlets (12 C13/ 4 C19) and L6-30P 12ft Cord
  • Reversible mounting ears for front/rear rackmount installation

AED6,399.00

Add to Wishlist

Know your gear

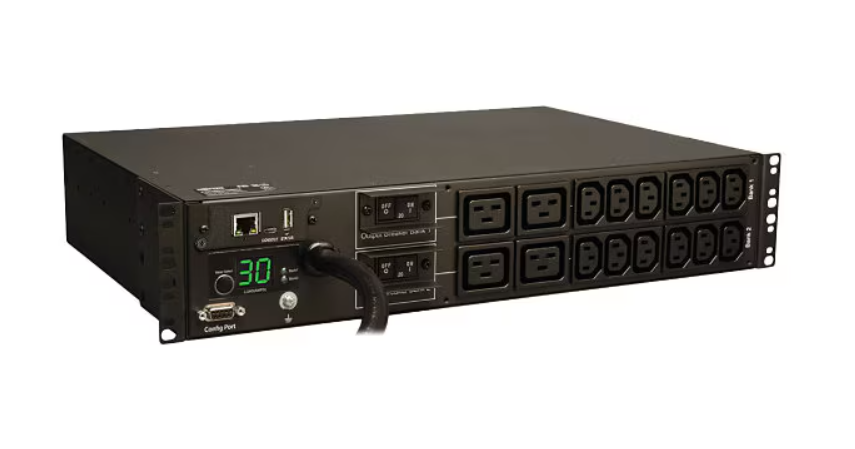

PDUMNH30HV horizontal 2U monitored rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 16 230V outlets (12 C13, 4 C19). Outlets are arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered. Tripp Lite Monitored Rack Power Distribution Units support real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed locally via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 SRSWITCH or user supplied contact-closure sensors. Supports real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds. Fully compatible with PowerAlert Network Management System Software, available via free download from www.tripplite.com.
SKU: PDUMNH30HV Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton
Model 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (12-C13 and 4-C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Edition Horizontal rackmount
Manufacturer Tripp Lite
Network & Communication Remote Management HTTP, HTTPS, SNMP 1, SNMP 2, Telnet
Remote Management Interface Ethernet 10/100
Connectivity Input Connectors 1
Power Emergency Power Off Current meter
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L6-30
Max Input Current 30 ampere
Output Connector Quantity 16
Power Output Connectors Details 12 x power IEC 60320 C13, 4 x power IEC 60320 C19
Power Provided 5.8 kilograms per millimetere
Provided Voltage AC 208/240 volt
Required Voltage AC 208/240 volt
Software Software Type TrippLite PowerAlert
Technical Information Form Factor (Power Device) Rack-mountable
Operating Humidity 0 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Features 2 LED lights
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable – integrated – 12 ft
Included Accessories Cable retention brackets
Dimensions & Weight Height 3.5 inch
Height (Rack Units) 2U
Weight 13.67 lbs
Width 17.5 inch
Depth 12.5 inch
