04 3550600 052 7036860

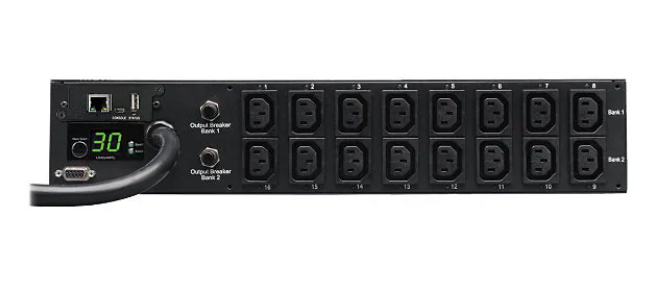

Eaton 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (16 C13), L6-30P Input, 12 ft. (3.66 m) Cord, 2U

Add to Wishlist

Quick tech specs

  • 5.8kW single-phase switched PDU 208/240V 2U horizontal w/ 16 outlets and 12ft cord
  • Reports voltage frequency and load level via Ethernet interface
  • Visual current meter and reversible housing
  • TAA-Compliant
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Horizontal PDU
  • 16 switched C13 outlets; NEMA L6-30P input plug 12ft cord
  • Temperature humidity and contact closure monitoring options
  • Tripp Lite is now a part of Eaton

AED6,699.00

Add to Wishlist

Know your gear

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.
The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom-programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual current meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
SKU: PDUMH30HVNET Category: Tag:
Overview
Specification Details
Brand Eaton
Product Line Eaton
Model 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (16 C13), L6-30P Input, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Manufacturer Tripp Lite
Network & Communication
Specification Details
Remote Management SNMP, SSH, Telnet
Remote Management Interface Ethernet 10/100
Connectivity
Specification Details
Interface Provided 1 x management (Ethernet) – RJ-45
Power
Specification Details
Emergency Power Off LED display, LED indicators, Overload protection, Switched
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L6-30P
Input Wiring 1-phase
Max Input Current 24 ampere
Output Connector Quantity 16
Output Connector Type Power IEC C13
Power Output Connectors Details 16 x power IEC C13
Power Provided 5.5 kilograms per millimetere
Provided Voltage AC 208/230 volt
Required Voltage AC 208/230 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 0 – 95% RH (non-condensing)
Product Information
Specification Details
Features LCD Display, LED status indicators, Metal housing
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables Power cable – integrated – 12 ft
Included Accessories 16 IEC C13 plug retention sleeves, 2 mounting brackets, Micro USB cable
Dimensions & Weight
Specification Details
Height 3.5 inch
Height (Rack Units) 2
Weight 13.8 lbs
Width 17.5 inch
Depth 12.5 inch
Physical Characteristics
Specification Details
Color Category Black
