Eaton 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA – power


Quick tech specs

  • Cost-effective 5/5.8kW PDU distributes monitors and manages single-phase power in an IT or industrial environment.
  • 24 individually controllable outlets—20 C13,4 C19
  • Digital ammeter for on-site load monitoring in real time
  • Tripp Lite is now a part of the Eaton family
  • 5/5.8kW 208/240V 30A switched PDU
  • Built-in LX Platform interface for remote access
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Vertical PDU

AED7,699.00

Know your gear

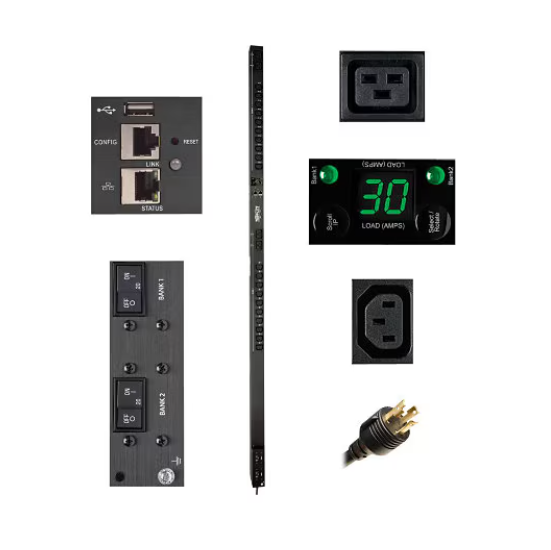

The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. LEDs indicate each outlet’s on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
Ā Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
SKU: PDUMV30HVNETLX Category: Tag:
Category Specification
Overview
Brand Tripp Lite
Product Line Eaton
Model 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets, L6-30P, 0U, TAA
Manufacturer Tripp Lite
Network & Communication
Remote Management SNMP, SSH, Telnet
Remote Management Interface Ethernet 10/100
Connectivity
Input Connectors 1
Power
Emergency Power Off Current meter, Email alerts support, LCD display, Vertical orientation, Voltage monitoring
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L6-30
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 24
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19
Power Output Connectors Details 20 x power IEC 60320 C13 12 A, 4 x Power IEC 60320 C19 16 A
Power Provided 5.8 kilograms per millimetere
Provided Voltage AC 208/240 volt
Required Voltage AC 200/208/240 volt
Technical Information
Form Factor (Power Device) Rack-mountable
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information
Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Cables Power cable – integrated – 10 ft
Included Accessories 24 cable ties, Cable retention brackets
Dimensions & Weight
Height 70 inch
Height (Rack Units) 0
Rack Size 19″
Rack Size (metric) 48.3 cm
Weight 11.51 lbs
Width 2.2 inch
Depth 2.6 inch
Physical Characteristics
Color Category Black
