Eaton 500VA 300W 120V AC DIN Rail Industrial UPS – Hardwire Input/Output

Add to Wishlist

Quick tech specs

  • DIN rail UPS battery backupoffers network-grade power protection for industrial and machine control installations
  • Protects equipment against blackouts/brownouts/over- voltages/surges/line noise
  • Restarts automatically when power is restored/eliminating a costly site visit
  • Recommended for industrial locations where temperatures range within 0-50C
  • Keeps power running during brief outages to allow time for safe system shutdown

AED4,599.00

Add to Wishlist

Know your gear

Flexible Power Protection for Smart Industrial Applications

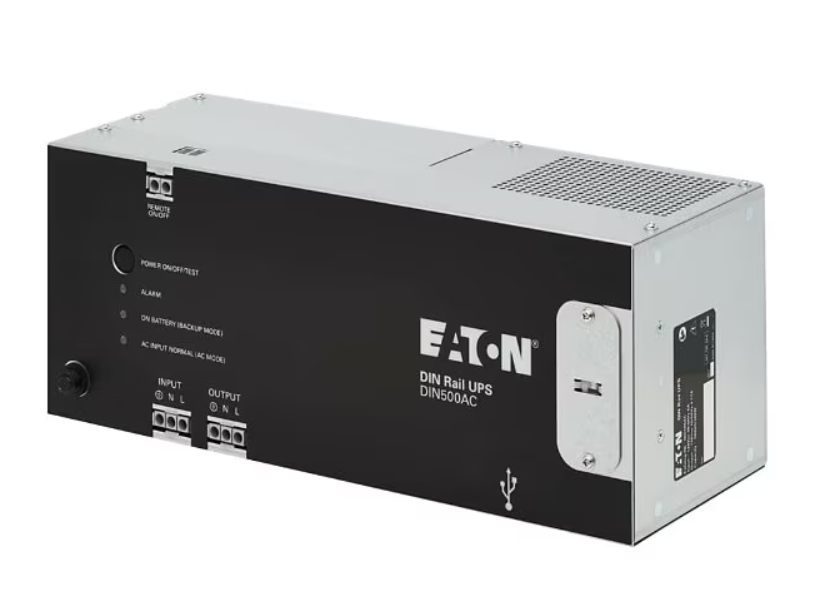

The DIN500AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.
Ideal for Factory Floors and Extreme Temperatures

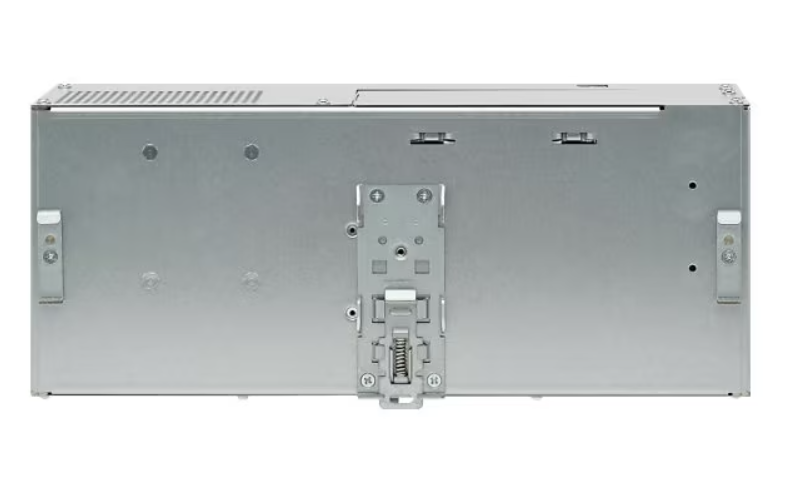

Get full use of the DIN500AC’s power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN500AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.
Reliable Battery Backup Keeps You Operational Through Power Outages
Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. The DIN500AC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.
Convenient Automatic Restart
The DIN500AC automatically restarts when AC power is restored after an outage, eliminating the need for a costly site visit.
Stay in Control of Your Operation

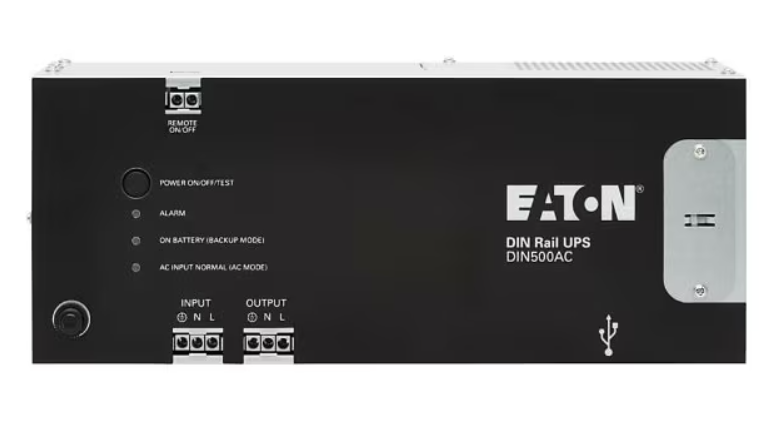

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off and a battery indicator mode can help you avoid maintenance surprises. The DIN500AC is compatible with PowerAlert Office software for UPS monitoring and control via USB connection.
Easy Preventative Maintenance and Initial Troubleshooting
The DIN500AC’s self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
SKU: DIN500AC Category: Tag:
Category Specification
Overview
Brand Eaton
Product Line Eaton
Model 500VA 300W 120V AC DIN Rail Industrial UPS – Hardwire Input/Output
Manufacturer Powerware Systems
Network & Communication
Remote Management Interface USB
Connectivity
Input Connectors 1
Interface Provided 1 x management (USB) – 4 pin USB Type B
Power
Battery Chemistry Valve regulated lead-acid (VRLA)
Battery Voltage DC 12 volt
Emergency Power Off Audible alarm, Auto-Sensing Technology, Cold-start function, Convection cooling, Emergency power off, LED indicators, Noise suppression, Remote ON/OFF function, Standby topology
Frequency Provided 50/60 Hz
Frequency Provided Margin ± 10%
Input Connector Type Hardwire
Input Wiring 1-phase
Load Type At full load
Max Run Time 14.5 min at half load, 4 min at full load
Output Connector Quantity 1
Power Capacity 500 VA/kg
Power Factor (PF) 0.6
Power Provided 300 watt
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Surge Suppression Yes
Switching Capacity 10 millisecond
UPS Technology Off-line
Waveform Type Sine Wave
Battery Run Time (Up To) 4 minute
Technical Information
Efficiency 97% at 100% load
Form Factor (Power Device) DIN rail mountable
Max Operating Temperature 122°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95% (non-condensing)
Protection Type Circuit breaker
Sound Emission 40 dBA
Product Information
Features HID compatible, Noise Protection, On/off power switch, Single-phase, Steel housing, Surge Protection
Packaged Quantity 1
Product Type UPS
Subcategory UPS
Included Items
Cables USB control cable – external
Dimensions & Weight
Height 5.2 inch
Width 12.3 inch
Depth 5.5 inch
Physical Characteristics
Color Category Black, Gray
